7. LW3 Programmers' Reference

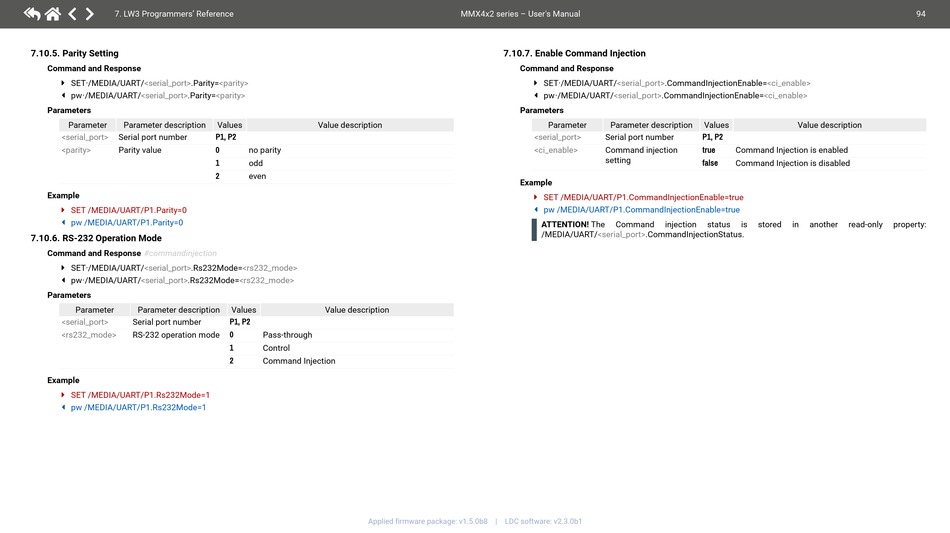

7.10.5. Parity Setting
Command and Response
SET·/MEDIA/UART/<serial_port>.Parity=<parity>
ç
pw·/MEDIA/UART/<serial_port>.Parity=<parity>
æ
Parameters
Parameter Parameter description
<serial_port> Serial port number
<parity> Parity value
Example
ç SET /MEDIA/UART/P1.Parity=0
æ pw /MEDIA/UART/P1.Parity=0
7.10.6. RS-232 Operation Mode
Command and Response #commandinjection
SET·/MEDIA/UART/<serial_port>.Rs232Mode=<rs232_mode>
ç
pw·/MEDIA/UART/<serial_port>.Rs232Mode=<rs232_mode>
æ
Parameters
Parameter Parameter description
<serial_port> Serial port number
<rs232_mode> RS-232 operation mode
Example
ç SET /MEDIA/UART/P1.Rs232Mode=1
æ pw /MEDIA/UART/P1.Rs232Mode=1
Values Value description
P1, P2
0 no parity
1 odd
2 even
Values Value description
P1, P2
0 Pass-through
1 Control
2 Command Injection
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
7.10.7. Enable Command Injection
Command and Response
SET·/MEDIA/UART/<serial_port>.CommandInjectionEnable=<ci_enable>
ç
pw·/MEDIA/UART/<serial_port>.CommandInjectionEnable=<ci_enable>
æ
Parameters
Parameter Parameter description
<serial_port> Serial port number
<ci_enable> Command injection
setting
Example
ç SET /MEDIA/UART/P1.CommandInjectionEnable=true
æ pw /MEDIA/UART/P1.CommandInjectionEnable=true

ATTENTION! The Command
/MEDIA/UART/<serial_port>.CommandInjectionStatus.
Values Value description
P1, P2
true Command Injection is enabled
false Command Injection is disabled
injection status is stored in another
94
read-only property:
