6. LW2 Programmers' Reference

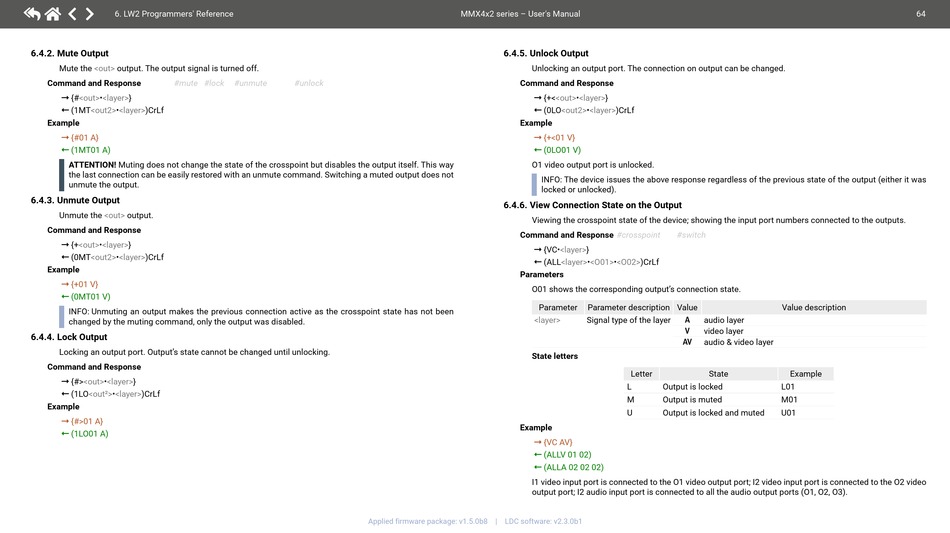

6.4.2. Mute Output
Mute the <out> output. The output signal is turned off.
Command and Response #mute #lock
 {#<out>•<layer>}
 (1MT<out2>•<layer>)CrLf
Example
 {#01 A}
 (1MT01 A)
ATTENTION!
Muting does not change the state of the crosspoint but disables the output itself. This way
the last connection can be easily restored with an unmute command. Switching a muted output does not
unmute the output.
6.4.3. Unmute Output
Unmute the <out> output.
Command and Response
 {+<out>•<layer>}
 (0MT<out2>•<layer>)CrLf
Example
 {+01 V}
 (0MT01 V)

INFO: Unmuting an output makes the previous connection active as the crosspoint state has not been
changed by the muting command, only the output was disabled.
6.4.4. Lock Output
Locking an output port. Output's state cannot be changed until unlocking.
Command and Response
 {#><out>•<layer>}
 (1LO<out²>•<layer>)CrLf
Example
 {#>01 A}
 (1LO01 A)
#unmute #unlock
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
6.4.5. Unlock Output
Unlocking an output port. The connection on output can be changed.
Command and Response
 {+<<out>•<layer>}
 (0LO<out2>•<layer>)CrLf
Example
 {+<01 V}
 (0LO01 V)
O1 video output port is unlocked.
INFO:
The device issues the above response regardless of the previous state of the output (either it was
locked or unlocked).
6.4.6. View Connection State on the Output
Viewing the crosspoint state of the device; showing the input port numbers connected to the outputs.
Command and Response #crosspoint
 {VC•<layer>}
 (ALL<layer>•<O01>•<O02>)CrLf
Parameters
O01 shows the corresponding output's connection state.
Parameter Parameter description Value
<layer> Signal type of the layer
State letters
Letter
L
M
U
Example
 {VC AV}
 (ALLV 01 02)
 (ALLA 02 02 02)
I1 video input port is connected to the O1 video output port; I2 video input port is connected to the O2 video
output port; I2 audio input port is connected to all the audio output ports (O1, O2, O3).
#switch
Value description
A audio layer
V video layer
AV audio & video layer
State Example
Output is locked L01
Output is muted M01
Output is locked and muted U01
