5.5.3. HDMI Video Output

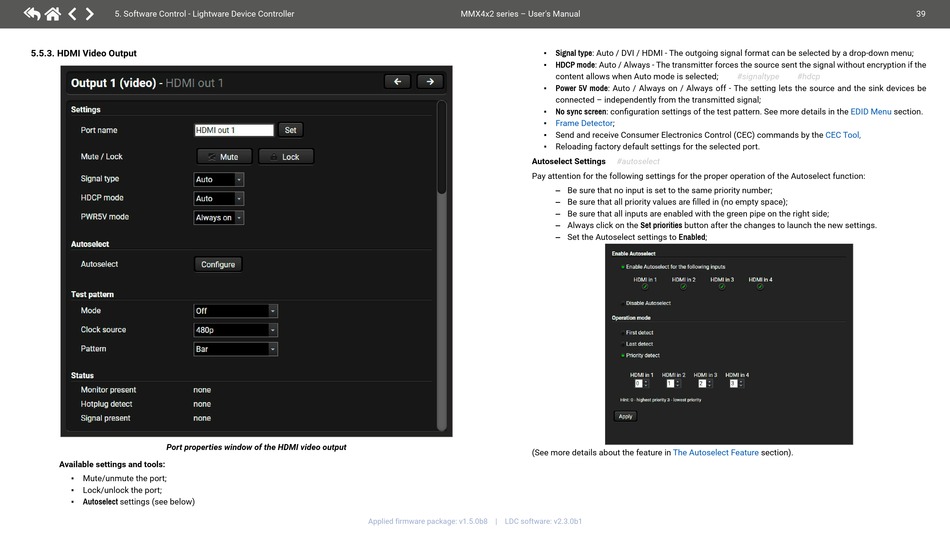

Port properties window of the HDMI video output
Available settings and tools:
▪ Mute/unmute the port;
▪ Lock/unlock the port;
Autoselect settings (see below)
▪
MMX4x2 series – User's Manual
▪
▪
▪
▪
▪
▪
▪
Autoselect Settings
Pay attention for the following settings for the proper operation of the Autoselect function:
(See more details about the feature in
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
Signal type: Auto / DVI / HDMI - The outgoing signal format can be selected by a drop-down menu;
HDCP mode: Auto / Always - The transmitter forces the source sent the signal without encryption if the
content allows when Auto mode is selected;
Power 5V mode: Auto / Always on / Always off - The setting lets the source and the sink devices be
connected – independently from the transmitted signal;
No sync screen: configuration settings of the test pattern. See more details in the
Frame Detector;
Send and receive Consumer Electronics Control (CEC) commands by the
Reloading factory default settings for the selected port.
#autoselect
– Be sure that no input is set to the same priority number;
– Be sure that all priority values are filled in (no empty space);
– Be sure that all inputs are enabled with the green pipe on the right side;
– Always click on the Set priorities button after the changes to launch the new settings.
– Set the Autoselect settings to Enabled;
The Autoselect Feature
39
#signaltype #hdcp
EDID Menu section.
CEC Tool,
section).
