5. Software Control - Lightware Device Controller

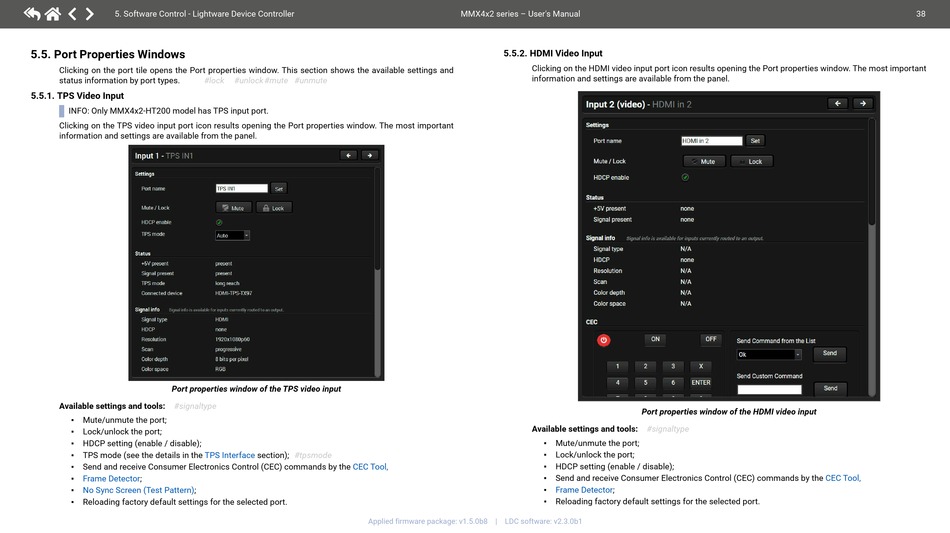

5.5. Port Properties Windows
Clicking on the port tile opens the Port properties window. This section shows the available settings and
status information by port types.
5.5.1. TPS Video Input

INFO: Only MMX4x2-HT200 model has TPS input port.
Clicking on the TPS video input port icon results opening the Port properties window. The most important
information and settings are available from the panel.
Port properties window of the TPS video input
Available settings and tools: #signaltype
▪ Mute/unmute the port;
▪ Lock/unlock the port;
▪ HDCP setting (enable / disable);
▪ TPS mode (see the details in the
Send and receive Consumer Electronics Control (CEC) commands by the
▪
▪ Frame Detector;
▪ No Sync Screen (Test Pattern);
▪ Reloading factory default settings for the selected port.
#lock #unlock #mute #unmute
TPS Interface section); #tpsmode
CEC Tool,
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
5.5.2. HDMI Video Input
Clicking on the HDMI video input port icon results opening the Port properties window. The most important
information and settings are available from the panel.
Available settings and tools:
▪ Mute/unmute the port;
▪ Lock/unlock the port;
▪ HDCP setting (enable / disable);
▪ Send and receive Consumer Electronics Control (CEC) commands by the
Frame Detector;
▪
▪ Reloading factory default settings for the selected port.
Port properties window of the HDMI video input
#signaltype
38
CEC Tool,
