4. Device Concept

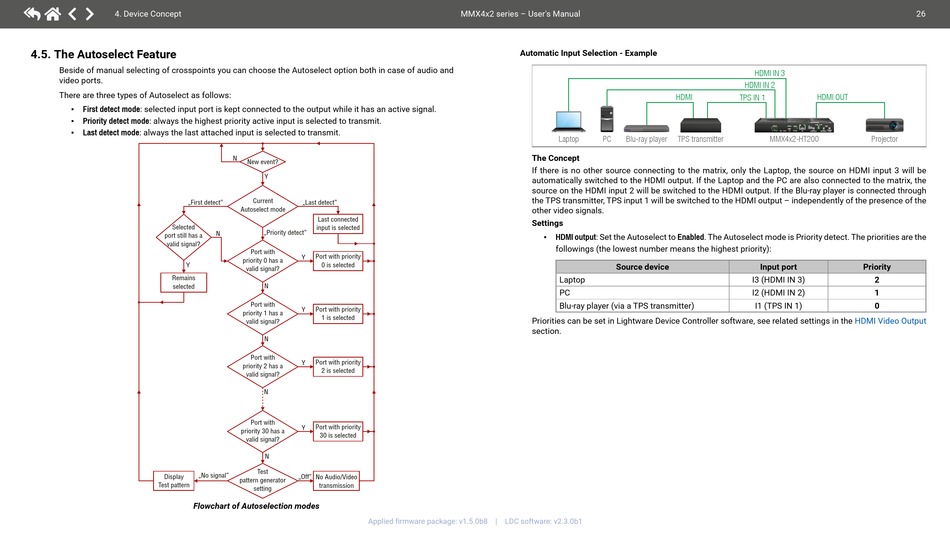

4.5. The Autoselect Feature
Beside of manual selecting of crosspoints you can choose the Autoselect option both in case of audio and
video ports.
There are three types of Autoselect as follows:
▪ First detect mode: selected input port is kept connected to the output while it has an active signal.
▪ Priority detect mode: always the highest priority active input is selected to transmit.
▪ Last detect mode: always the last attached input is selected to transmit.
„First detect"
Selected
port still has a
valid signal?
Y
Remains
selected
„No signal"
Display
Test pattern
Flowchart of Autoselection modes
N
New event?
Y
Current
„Last detect"
Autoselect mode
Last connected
input is selected
„Priority detect"
N
Port with
Y Port with priority
priority 0 has a
0 is selected
valid signal?
N
Port with
Y Port with priority
priority 1 has a
1 is selected
valid signal?
N
Port with
Port with priority
Y
priority 2 has a
2 is selected
valid signal?
N
Port with
Port with priority
Y
priority 30 has a
30 is selected
valid signal?
N
Test
„Off" No Audio/Video
pattern generator
transmission
setting
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
Automatic Input Selection - Example
Laptop PC Blu-ray player
The Concept
If there is no other source connecting to the matrix, only the Laptop, the source on HDMI input 3 will be
automatically switched to the HDMI output. If the Laptop and the PC are also connected to the matrix, the
source on the HDMI input 2 will be switched to the HDMI output. If the Blu-ray player is connected through
the TPS transmitter, TPS input 1 will be switched to the HDMI output – independently of the presence of the
other video signals.
Settings
▪ HDMI output: Set the Autoselect to Enabled. The Autoselect mode is Priority detect. The priorities are the
followings (the lowest number means the highest priority):
Source device
Laptop
PC
Blu-ray player (via a TPS transmitter)
Priorities can be set in Lightware Device Controller software, see related settings in the
section.
HDMI IN 3
HDMI IN 2
HDMI TPS IN 1 HDMI OUT
OUT OUT
AUDIO IN CONTROL RS-232 LIVE IN 1 RESET
AUDIO OUT IN 2
OUT 1 AUTO IN 3
OUT 2 AUTO IN 4
OUT 1 OUT 2 SET AUDIO
L R IR IN IR OUT TX RX LAN VIDEO SELECT VIDEO SELECT CONFIG
TPS transmitter MMX4x2-HT200
Input port
I3 (HDMI IN 3)
I2 (HDMI IN 2)
I1 (TPS IN 1)
HDMI Video Output
26
Projector
Priority
2
1
0
