5. Software Control - Lightware Device Controller
5.11. Settings Menu
5.11.1. Status
The most important hardware and software related information can be found on this tab: hardware and
firmware version, serial numbers, temperatures, operation time, and voltage information. Device label can
be changed to unique description by the Set button.
You can disable the functionality of the front panel buttons with marking the Button lock option. This is same
method of the control lock made by the front panel buttons. See the details in the
Please note that the Miniweb-related descriptions can be found in
Clicking on the Identify me button results the blinking of the status and crosspoint LEDs in green for 10 seconds.
The feature helps to identify the device itself in the rack shelf.
#devicelabel #label #producttype
#serialnumber

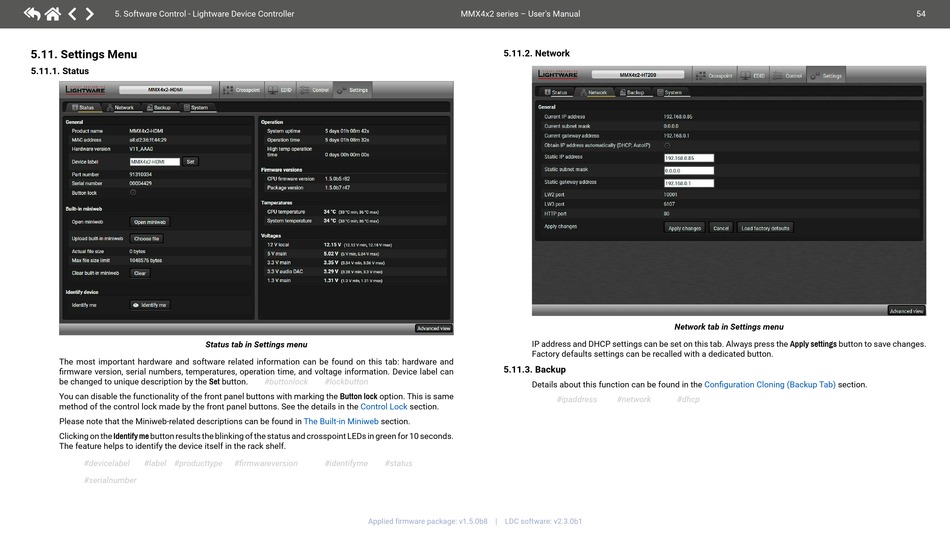

Status tab in Settings menu
#buttonlock #lockbutton
Control Lock
The Built-in Miniweb section.
#firmwareversion #identifyme

#status

Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
5.11.2. Network
IP address and DHCP settings can be set on this tab. Always press the Apply settings button to save changes.
Factory defaults settings can be recalled with a dedicated button.
5.11.3. Backup
Details about this function can be found in the
#ipaddress
section.
Network tab in Settings menu
Configuration Cloning (Backup Tab)

#network

#dhcp
54
section.
