11. Appendix

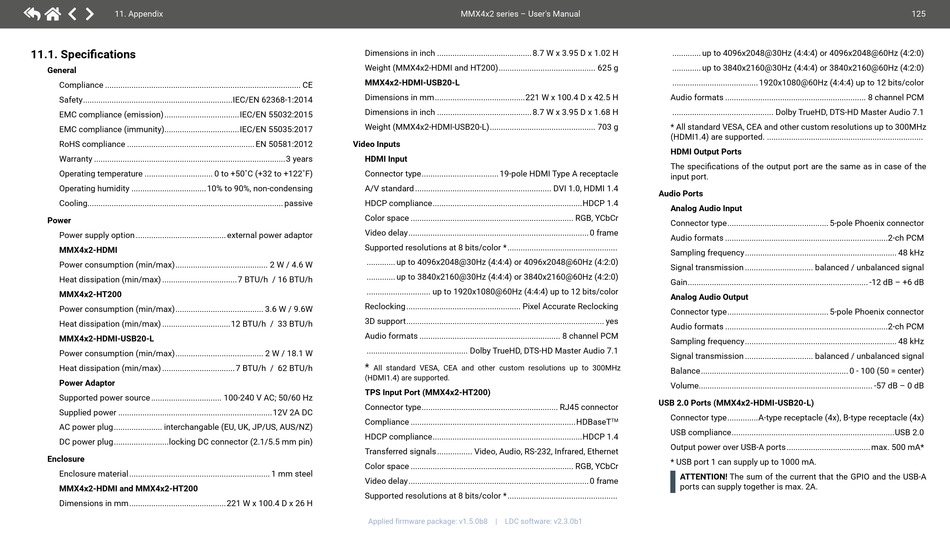

11.1. Specifications
General
Compliance ......................................................................................... CE
Safety ....................................................................IEC/EN 62368-1:2014
EMC compliance (emission) ..................................IEC/EN 55032:2015
EMC compliance (immunity) ..................................IEC/EN 55035:2017
RoHS compliance .......................................................... EN 50581:2012
Warranty .......................................................................................3 years
Operating temperature ............................... 0 to +50˚C (+32 to +122˚F)
Operating humidity ..................................10% to 90%, non-condensing
Cooling......................................................................................... passive
Power
Power supply option ......................................... external power adaptor
MMX4x2-HDMI
Power consumption (min/max) .......................................... 2 W / 4.6 W
Heat dissipation (min/max) ..................................7 BTU/h / 16 BTU/h
MMX4x2-HT200
Power consumption (min/max) ........................................ 3.6 W / 9.6W
Heat dissipation (min/max) ...............................12 BTU/h / 33 BTU/h
MMX4x2-HDMI-USB20-L
Power consumption (min/max) ........................................ 2 W / 18.1 W
Heat dissipation (min/max) ................................. 7 BTU/h / 62 BTU/h
Power Adaptor
Supported power source ................................ 100-240 V AC; 50/60 Hz
Supplied power ......................................................................12V 2A DC
AC power plug ...................... interchangable (EU, UK, JP/US, AUS/NZ)
DC power plug .........................locking DC connector (2.1/5.5 mm pin)
Enclosure
Enclosure material ................................................................ 1 mm steel
MMX4x2-HDMI and MMX4x2-HT200
Dimensions in mm ............................................221 W x 100.4 D x 26 H
MMX4x2 series – User's Manual
Dimensions in inch ........................................... 8.7 W x 3.95 D x 1.02 H
Weight (MMX4x2-HDMI and HT200) ............................................ 625 g
MMX4x2-HDMI-USB20-L
Dimensions in mm .........................................221 W x 100.4 D x 42.5 H
Dimensions in inch ........................................... 8.7 W x 3.95 D x 1.68 H
Weight (MMX4x2-HDMI-USB20-L) ................................................ 703 g
Video Inputs
HDMI Input
Connector type ................................... 19-pole HDMI Type A receptacle
A/V standard .............................................................. DVI 1.0, HDMI 1.4
HDCP compliance ....................................................................HDCP 1.4
Color space .......................................................................... RGB, YCbCr
Video delay .................................................................................. 0 frame
Supported resolutions at 8 bits/color * ..................................................
............. up to 4096x2048@30Hz (4:4:4) or 4096x2048@60Hz (4:2:0)
............. up to 3840x2160@30Hz (4:4:4) or 3840x2160@60Hz (4:2:0)
............................. up to 1920x1080@60Hz (4:4:4) up to 12 bits/color
Reclocking .................................................... Pixel Accurate Reclocking
3D support .......................................................................................... yes
Audio formats ................................................................ 8 channel PCM
.............................................. Dolby TrueHD, DTS-HD Master Audio 7.1
*
All standard VESA, CEA and other custom resolutions up to 300MHz
(HDMI1.4) are supported.
TPS Input Port (MMX4x2-HT200)
Connector type .............................................................. RJ45 connector
Compliance ...........................................................................HDBaseT
HDCP compliance ....................................................................HDCP 1.4
Transferred signals ................ Video, Audio, RS-232, Infrared, Ethernet
Color space .......................................................................... RGB, YCbCr
Video delay .................................................................................. 0 frame
Supported resolutions at 8 bits/color * ..................................................
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
............. up to 4096x2048@30Hz (4:4:4) or 4096x2048@60Hz (4:2:0)
............. up to 3840x2160@30Hz (4:4:4) or 3840x2160@60Hz (4:2:0)
....................................... 1920x1080@60Hz (4:4:4) up to 12 bits/color
Audio formats ................................................................ 8 channel PCM
.............................................. Dolby TrueHD, DTS-HD Master Audio 7.1
* All standard VESA, CEA and other custom resolutions up to 300MHz
(HDMI1.4) are supported. .......................................................................
HDMI Output Ports
The specifications of the output port are the same as in case of the
input port.
Audio Ports
Analog Audio Input
Connector type .............................................. 5-pole Phoenix connector
Audio formats ..........................................................................2-ch PCM
Sampling frequency ..................................................................... 48 kHz
Signal transmission ............................... balanced / unbalanced signal
Gain .................................................................................. -12 dB – +6 dB
Analog Audio Output
Connector type .............................................. 5-pole Phoenix connector
Audio formats ..........................................................................2-ch PCM
Sampling frequency ..................................................................... 48 kHz
Signal transmission ............................... balanced / unbalanced signal
Balance ................................................................... 0 - 100 (50 = center)
Volume............................................................................... -57 dB – 0 dB
USB 2.0 Ports (MMX4x2-HDMI-USB20-L)
Connector type ..............A-type receptacle (4x), B-type receptacle (4x)
TM
USB compliance ..........................................................................USB 2.0
Output power over USB-A ports ...................................... max. 500 mA*
* USB port 1 can supply up to 1000 mA.

ATTENTION! The sum of the current that the GPIO and the USB-A
ports can supply together is max. 2A.
