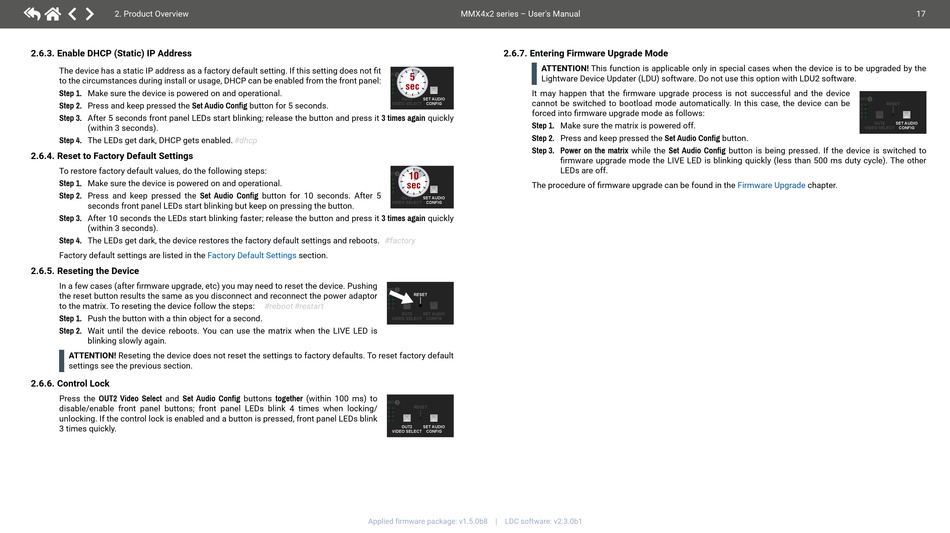

2.6.3. Enable DHCP (Static) IP Address
The device has a static IP address as a factory default setting. If this setting does not fit
to the circumstances during install or usage, DHCP can be enabled from the front panel:
Step 1. Make sure the device is powered on and operational.
Step 2. Press and keep pressed the Set Audio Config button for 5 seconds.
Step 3. After 5 seconds front panel LEDs start blinking; release the button and press it 3 times again quickly
(within 3 seconds).
Step 4. The LEDs get dark, DHCP gets enabled.
2.6.4. Reset to Factory Default Settings
To restore factory default values, do the following steps:
Step 1. Make sure the device is powered on and operational.
Step 2. Press and keep pressed the Set Audio Config button for 10 seconds. After 5
seconds front panel LEDs start blinking but keep on pressing the button.
Step 3. After 10 seconds the LEDs start blinking faster; release the button and press it 3 times again quickly
(within 3 seconds).
Step 4. The LEDs get dark, the device restores the factory default settings and reboots.
Factory default settings are listed in the
2.6.5. Reseting the Device
In a few cases (after firmware upgrade, etc) you may need to reset the device. Pushing
the reset button results the same as you disconnect and reconnect the power adaptor
to the matrix. To reseting the device follow the steps:
Step 1. Push the button with a thin object for a second.
Step 2. Wait until the device reboots. You can use the matrix when the LIVE LED is
blinking slowly again.

ATTENTION! Reseting the device does not reset the settings to factory defaults. To reset factory default
settings see the previous section.
2.6.6. Control Lock
Press the OUT2 Video Select and Set Audio Config buttons together (within 100 ms) to
disable/enable front panel buttons; front panel LEDs blink 4 times when locking/
unlocking. If the control lock is enabled and a button is pressed, front panel LEDs blink
3 times quickly.
