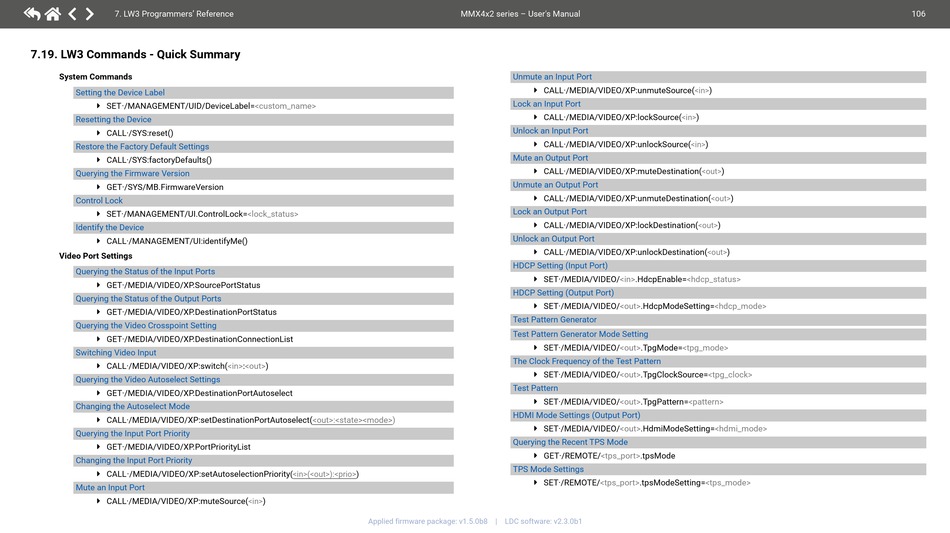

7. LW3 Programmers' Reference
7.19. LW3 Commands - Quick Summary
System Commands
Setting the Device Label
SET·/MANAGEMENT/UID/DeviceLabel=<custom_name>
ç
Resetting the Device
ç CALL·/SYS:reset()
Restore the Factory Default Settings
ç CALL·/SYS:factoryDefaults()
Querying the Firmware Version
ç GET·/SYS/MB.FirmwareVersion
Control Lock
SET·/MANAGEMENT/UI.ControlLock=<lock_status>
ç
Identify the Device
ç CALL·/MANAGEMENT/UI:identifyMe()
Video Port Settings
Querying the Status of the Input Ports
ç GET·/MEDIA/VIDEO/XP.SourcePortStatus
Querying the Status of the Output Ports
ç GET·/MEDIA/VIDEO/XP.DestinationPortStatus
Querying the Video Crosspoint Setting
ç GET·/MEDIA/VIDEO/XP.DestinationConnectionList
Switching Video Input
ç CALL·/MEDIA/VIDEO/XP:switch(<in>:<out>)
Querying the Video Autoselect Settings
ç GET·/MEDIA/VIDEO/XP.DestinationPortAutoselect
Changing the Autoselect Mode
CALL·/MEDIA/VIDEO/XP:setDestinationPortAutoselect(<out>:<state><mode>)
ç
Querying the Input Port Priority
ç GET·/MEDIA/VIDEO/XP.PortPriorityList
Changing the Input Port Priority
ç CALL·/MEDIA/VIDEO/XP:setAutoselectionPriority (<in>(<out>):<prio>)
Mute an Input Port
ç CALL·/MEDIA/VIDEO/XP:muteSource( <in> )
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
Unmute an Input Port
ç CALL·/MEDIA/VIDEO/XP:unmuteSource(
Lock an Input Port
ç CALL·/MEDIA/VIDEO/XP:lockSource(
Unlock an Input Port
ç CALL·/MEDIA/VIDEO/XP:unlockSource(
Mute an Output Port
ç CALL·/MEDIA/VIDEO/XP:muteDestination(
Unmute an Output Port
ç CALL·/MEDIA/VIDEO/XP:unmuteDestination(
Lock an Output Port
ç CALL·/MEDIA/VIDEO/XP:lockDestination(
Unlock an Output Port
ç CALL·/MEDIA/VIDEO/XP:unlockDestination(
HDCP Setting (Input Port)
SET·/MEDIA/VIDEO/<in>.HdcpEnable=<hdcp_status>
ç
HDCP Setting (Output Port)
SET·/MEDIA/VIDEO/<out>.HdcpModeSetting=<hdcp_mode>
ç
Test Pattern Generator
Test Pattern Generator Mode Setting
SET·/MEDIA/VIDEO/<out>.TpgMode=<tpg_mode>
ç
The Clock Frequency of the Test Pattern
SET·/MEDIA/VIDEO/<out>.TpgClockSource=<tpg_clock>
ç
Test Pattern
SET·/MEDIA/VIDEO/<out>.TpgPattern=<pattern>
ç
HDMI Mode Settings (Output Port)
SET·/MEDIA/VIDEO/<out>.HdmiModeSetting=<hdmi_mode>
ç
Querying the Recent TPS Mode
ç GET·/REMOTE/<tps_port>.tpsMode
TPS Mode Settings
SET·/REMOTE/<tps_port>.tpsModeSetting=<tps_mode>
ç
<in> )
<in> )
<in> )
<out> )
<out> )
<out> )
<out> )
106
