5. Software Control - Lightware Device Controller
Ports
User can set the name and command injection port to each sources and destinations. For more details
about IR interface see the IR Interface section.
Clear all IR codes
Clicking on the button results deleting all stored IR fingerprints.
Infra tab - Ports window
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual

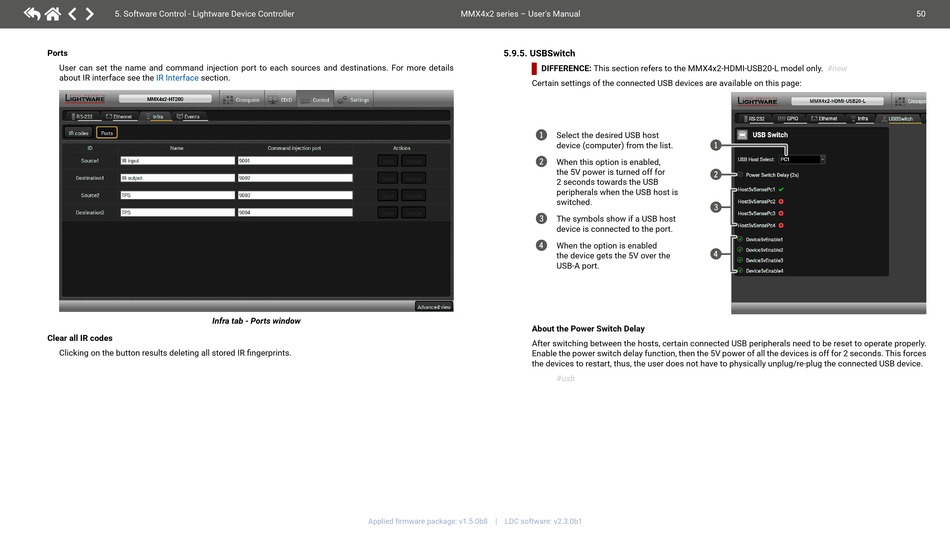

5.9.5. USBSwitch

DIFFERENCE: This section refers to the MMX4x2-HDMI-USB20-L model only.
Certain settings of the connected USB devices are available on this page:
1 Select the desired USB host
device (computer) from the list.
2 When this option is enabled,
the 5V power is turned off for
2 seconds towards the USB
peripherals when the USB host is
switched.
3
The symbols show if a USB host
device is connected to the port.
4 When the option is enabled
the device gets the 5V over the
USB-A port.
About the Power Switch Delay
After switching between the hosts, certain connected USB peripherals need to be reset to operate properly.
Enable the power switch delay function, then the 5V power of all the devices is off for 2 seconds. This forces
the devices to restart, thus, the user does not have to physically unplug/re-plug the connected USB device.
#usb
#new
1
2
3
4
