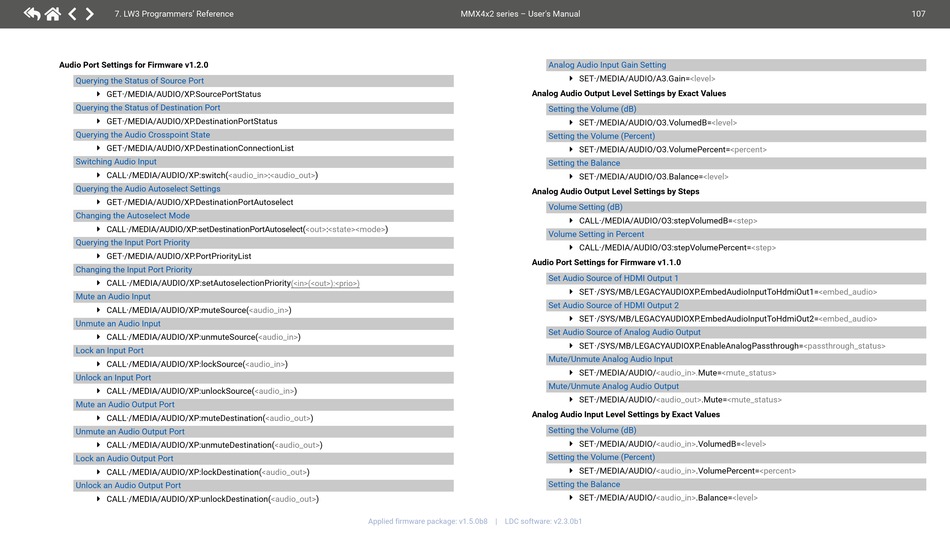

Lightware MMX4x2-HDMI User Manual page 107

   
7. LW3 Programmers' Reference
Audio Port Settings for Firmware v1.2.0
Querying the Status of Source Port
ç GET·/MEDIA/AUDIO/XP.SourcePortStatus
Querying the Status of Destination Port
ç GET·/MEDIA/AUDIO/XP.DestinationPortStatus
Querying the Audio Crosspoint State
ç GET·/MEDIA/AUDIO/XP.DestinationConnectionList
Switching Audio Input
ç CALL·/MEDIA/AUDIO/XP:switch(<audio_in>:<audio_out>)
Querying the Audio Autoselect Settings
ç GET·/MEDIA/AUDIO/XP.DestinationPortAutoselect
Changing the Autoselect Mode
ç CALL·/MEDIA/AUDIO/XP:setDestinationPortAutoselect(<out>:<state><mode>)
Querying the Input Port Priority
ç GET·/MEDIA/AUDIO/XP.PortPriorityList
Changing the Input Port Priority
ç CALL·/MEDIA/AUDIO/XP:setAutoselectionPriority
Mute an Audio Input
ç CALL·/MEDIA/AUDIO/XP:muteSource(<audio_in>)
Unmute an Audio Input
ç CALL·/MEDIA/AUDIO/XP:unmuteSource(<audio_in>)
Lock an Input Port
ç CALL·/MEDIA/AUDIO/XP:lockSource(<audio_in>)
Unlock an Input Port
ç CALL·/MEDIA/AUDIO/XP:unlockSource(<audio_in>)
Mute an Audio Output Port
ç CALL·/MEDIA/AUDIO/XP:muteDestination(<audio_out>)
Unmute an Audio Output Port
ç CALL·/MEDIA/AUDIO/XP:unmuteDestination(<audio_out>)
Lock an Audio Output Port
ç CALL·/MEDIA/AUDIO/XP:lockDestination(<audio_out>)
Unlock an Audio Output Port
ç CALL·/MEDIA/AUDIO/XP:unlockDestination(<audio_out>)
MMX4x2 series – User's Manual
(<in>(<out>):<prio>)
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
Analog Audio Input Gain Setting
SET·/MEDIA/AUDIO/A3.Gain=<level>
ç
Analog Audio Output Level Settings by Exact Values
Setting the Volume (dB)
SET·/MEDIA/AUDIO/O3.VolumedB=<level>
ç
Setting the Volume (Percent)
SET·/MEDIA/AUDIO/O3.VolumePercent=<percent>
ç
Setting the Balance
SET·/MEDIA/AUDIO/O3.Balance=<level>
ç
Analog Audio Output Level Settings by Steps
Volume Setting (dB)
CALL·/MEDIA/AUDIO/O3:stepVolumedB=<step>
ç
Volume Setting in Percent
CALL·/MEDIA/AUDIO/O3:stepVolumePercent=<step>
ç
Audio Port Settings for Firmware v1.1.0
Set Audio Source of HDMI Output 1
SET·/SYS/MB/LEGACYAUDIOXP.EmbedAudioInputToHdmiOut1=<embed_audio>
ç
Set Audio Source of HDMI Output 2
SET·/SYS/MB/LEGACYAUDIOXP.EmbedAudioInputToHdmiOut2=<embed_audio>
ç
Set Audio Source of Analog Audio Output
SET·/SYS/MB/LEGACYAUDIOXP.EnableAnalogPassthrough=<passthrough_status>
ç
Mute/Unmute Analog Audio Input
SET·/MEDIA/AUDIO/<audio_in>.Mute=<mute_status>
ç
Mute/Unmute Analog Audio Output
SET·/MEDIA/AUDIO/<audio_out>.Mute=<mute_status>
ç
Analog Audio Input Level Settings by Exact Values
Setting the Volume (dB)
SET·/MEDIA/AUDIO/<audio_in>.VolumedB=<level>
ç
Setting the Volume (Percent)
SET·/MEDIA/AUDIO/<audio_in>.VolumePercent=<percent>
ç
Setting the Balance
SET·/MEDIA/AUDIO/<audio_in>.Balance=<level>
ç
