Goodrive20-EU series VFD
Function
Name
code
Lower limit of
P06.17
AO1 output
Corresponding
P06.18 AO1 output to
the lower limit
Upper limit of
P06.19
AO1 output
Corresponding
P06.20 AO1 output of
the upper limit
AO1 output
P06.21
filter time
Lower limit of
P06.22
AO2 output
Corresponding
P06.23 AO2 output to
the lower limit
Upper limit of
P06.24
AO2 output
Corresponding
P06.25 AO2 output to
the upper limit
AO2 output
P06.26
filter time
P07 Group Human-Machine Interface
P07.00 User password
Detailed instruction of parameters

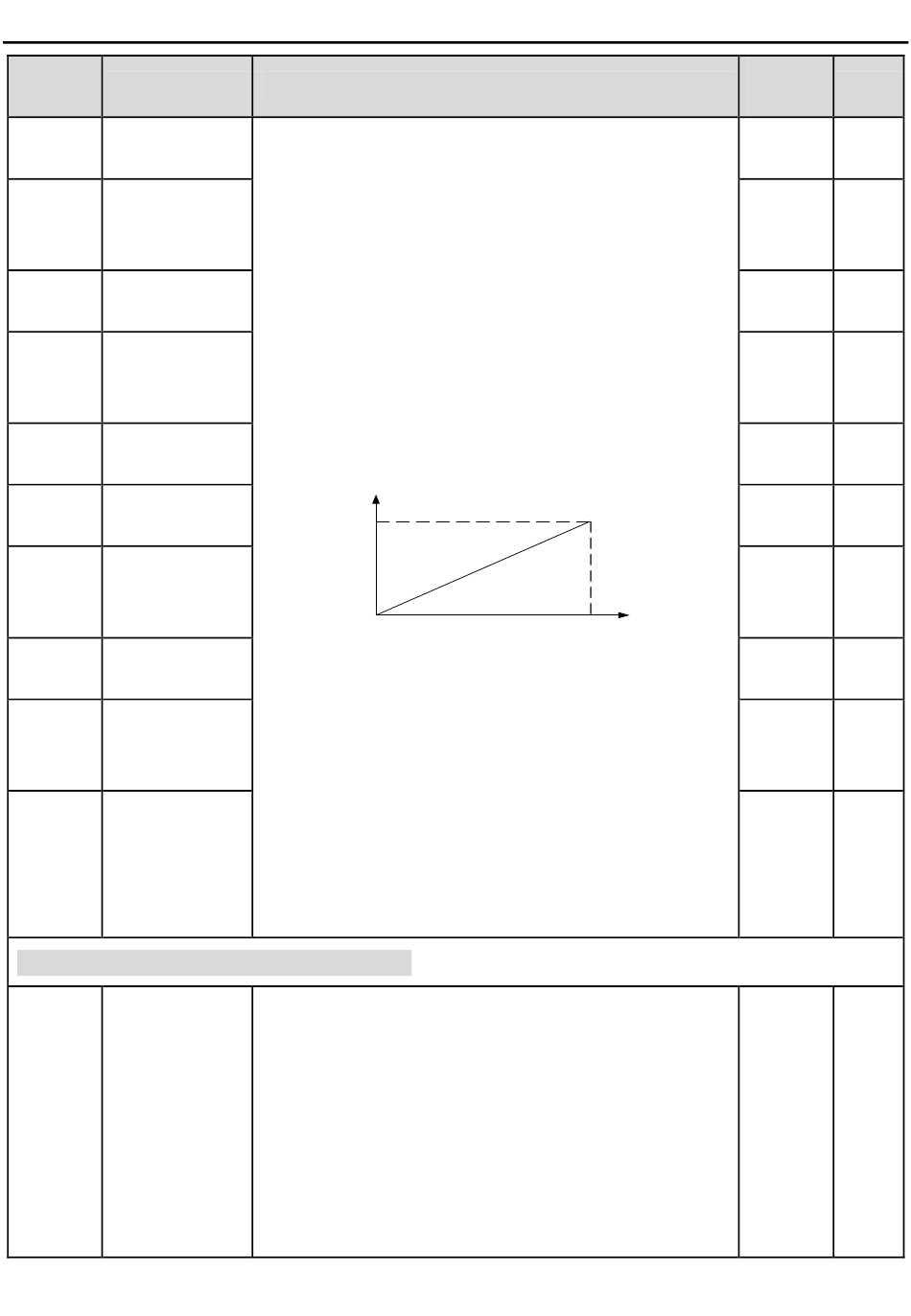

The above function codes define the relative
relation between the output value and analog
output. When the output value exceeds the
range of set maximum or minimum output, it will
count according to the low-limit or upper-limit
output.
When the analog output is current output, 1mA
equals to 0.5V.
In different cases, the corresponding analog
output of 100% of the output value is different.
Refer to each application for detailed
information.
10V (20mA)
AO
0.0%
Setting range of P06.17: -100.0% – P06.19
Setting range of P06.18: 0.00V – 10.00V
Setting range of P06.19: P06.17 – 100.0%
Setting range of P06.20: 0.00V – 10.00V
Setting range of P06.21: 0.000s – 10.000s
Setting range of P06.22:- 100.0% – P06.24
Setting range of P06.23: 0.00V – 10.00V
Setting range of P06.24: P06.22 – 100.0%
Setting range of P06.25: 0.00V – 10.00V
Setting range of P06.26: 0.000s – 10.000s
0 – 65535
The password protection will be valid when
setting any non-zero number.
00000: Clear the previous user's password, and
make the password protection invalid.
After the user's password becomes valid, if the
password is incorrect, users cannot enter the
parameter menu. Only correct password can
make the user check or modify the parameters.
100.0%
67
Function parameters
Default
Modify
value
○
0.0%
○
0.00V
○
100.0%
○
10.00V
○
0.000s
○
0.0%
○
0.00V
○
100.0%
○
10.00V
○
0.000s
○
0
