Goodrive20-EU series VFD
No.
1
External keypad port
2
Port cover
3
4
Hole for the sliding cover Fix the sliding cover
5
Trunking board
6
Name plate
7
Potentiometer knob
8
Control terminals
9
Main circuit terminals
10
Screw hole
11
Cooling fan
12
Fan cover
13
Bar code
Note: In above figure, the screws at 4 and 10 are provided with packaging and specific
installation depends on the requirements of customers.
Below is the layout figure of the VFD (Three phase 400V, ≥4kW) (take the VFD of 4kW as the
example).

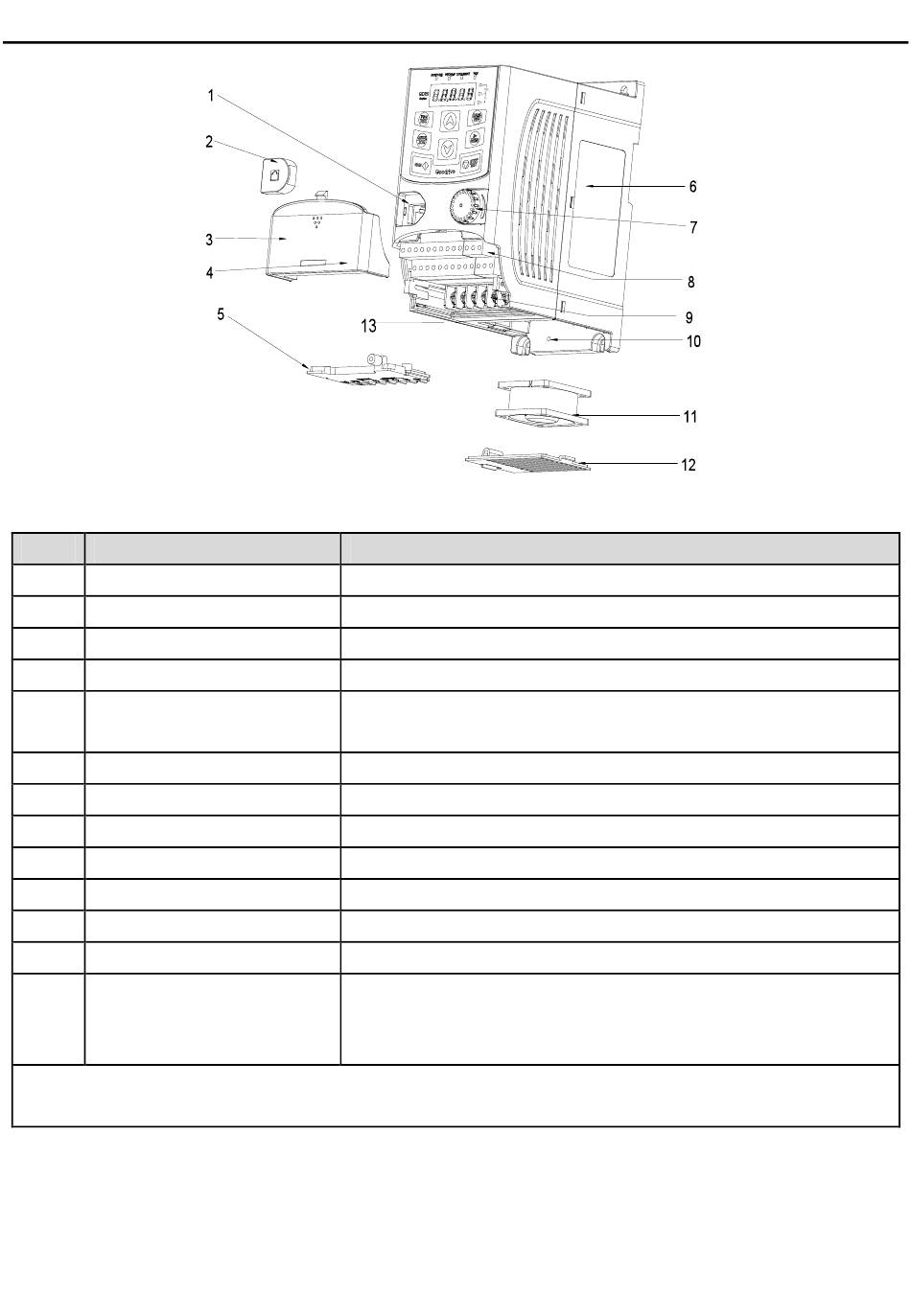

Figure 2-3 Product structure (3PH 400V, ≤2.2kW)
Name
Connect the external keypad
Protect the external keypad port
Cover
Protect the internal parts and components
Protect the inner components and fix the cables of the
main circuit
See section 2.5 "Name plate" for details.
Refer to chapter 4 "Keypad operation procedure".
See chapter 3 "Installation guide" for details.
See chapter 3 "Installation guide" for details.
Fix the fan cover and fan.
See chapter 6 "Fault tracking" for details.
Protect the fan
The same as the bar code on the name plate
Note: The bar code is on the middle shell which is under
the cover.
Description
12
Product overview
