Note: When setting,
4.3.2 How to set the password of the VFD
Goodrive20-EU series VFDs provide password protection function to users. Set P07.00 to
gain the password and the password protection becomes valid instantly after quitting from the
function code editing state. Press PRG/ESC again to the function code editing state,
"0.0.0.0.0" will be displayed. Unless using the correct password, the operators cannot enter it.
Set P07.00 to 0 to cancel password protection function.
The password protection becomes effective instantly after retreating from the function code
editing state. Press PRG/ESC again to the function code editing state, "0.0.0.0.0" will be
displayed. Unless using the correct password, the operators cannot enter it.
4.3.3 How to watch the VFD state through function codes
Goodrive20-EU series VFDs provide group P17 as the state inspection group. Users can enter
into P17 directly to watch the state.
PRG
ESC
PRG
The unit
All digits are
ESC
is blinking
blinking
The unit is blinking
and
SHIFT

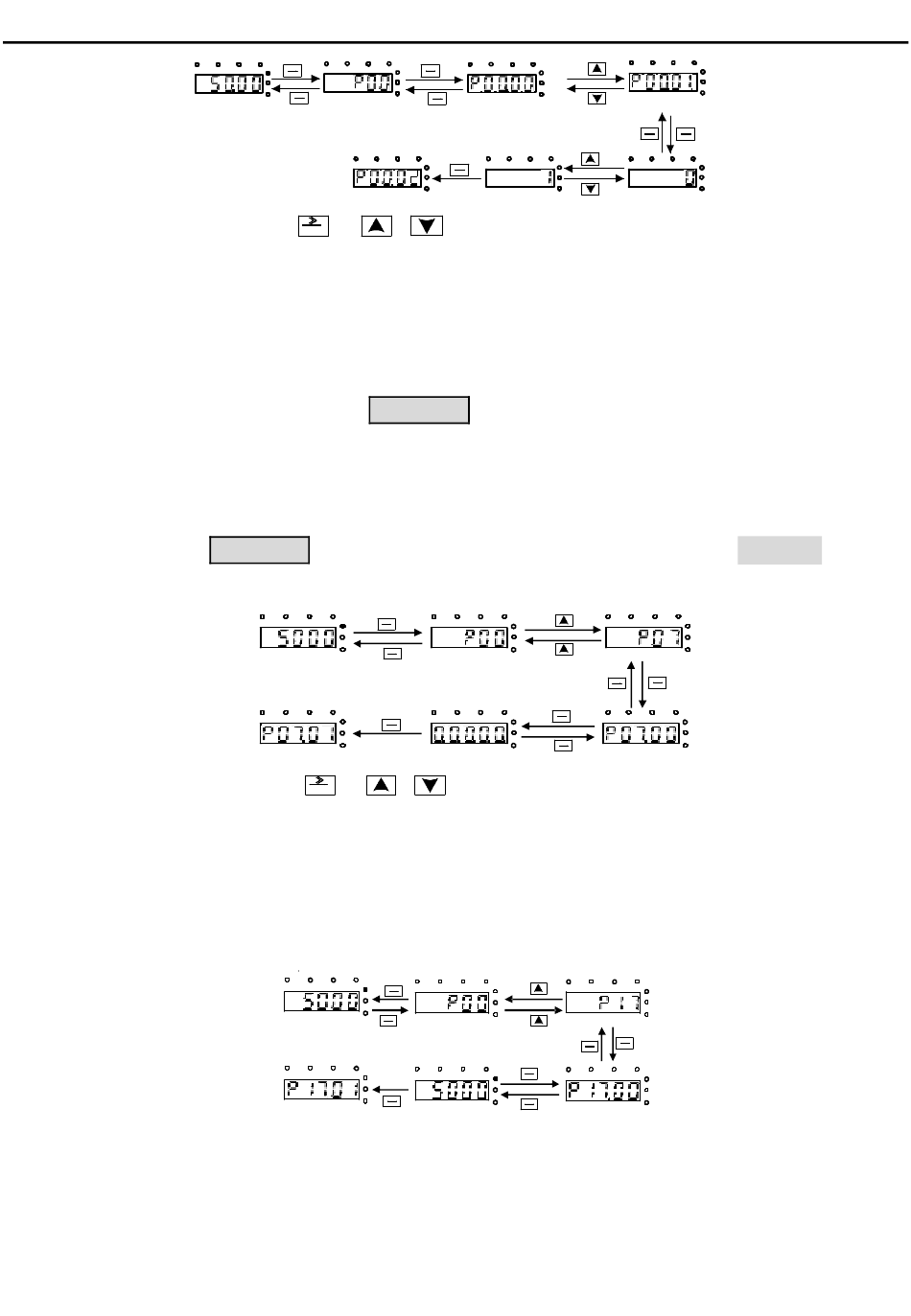

Figure 4-4 Sketch map of modifying parameters
All digits are blinking
The unit is blinking
Note: When setting,
and
SHIFT
Figure 4-5 Sketch map of password setting
All digits are blinking
The unit is blinking
Figure 4-6 Sketch map of state watching
DATA
ENT
PRG
The unit
ESC
is blinking
DATA
ENT
+
can be used to shift and adjust
PRG
ESC
PRG
ESC
The unit is blinking
DATA
ENT
The unit is blinking
+
can be used to shift and adjust
PRG
ESC
PRG
ESC
The unit is blinking
PRG
ESC
DATA
DATA
ENT
ENT
31
Keypad operation procedure
The unit is blinking
PRG
DATA
ESC
ENT
The unit is blinking
DATA
PRG
ENT
ESC
DATA
ENT
PRG
ESC
The unit is blinking
The unit is blinking
DATA
PRG
ENT
ESC
The unit is blinking
