Goodrive20-EU series VFD
Figure B-9 Flange mounting of 3PH 400V 4 – 75kW and 3PH 230V 1.5 – 7.5kW VFDs
Figure B-10 Flange mounting of 3PH 400V 90 – 110kW VFDs
Model
GD20-1R5G-2-EU 170.2 131 150 9.5 292 276 260
GD20-2R2G-2-EU 170.2 131 150 9.5 292 276 260
GD20-004G-2-EU 170.2 131 150 9.5 292 276 260
GD20-5R5G-2-EU 191.2 151 174 11.5 370 351 324
GD20-7R5G-2-EU 191.2 151 174 11.5 370 351 324
GD20-004G-4-EU 170.2 131 150 9.5 292 276 260
GD20-5R5G-4-EU 170.2 131 150 9.5 292 276 260
GD20-7R5G-4-EU 191.2 151 174 11.5 370 351 324
GD20-011G-4-EU 191.2 151 174 11.5 370 351 324
GD20-015G-4-EU 191.2 151 174 11.5 370 351 324
W1
D2
W3
Dimension (unit: mm)
W1 W2 W3 W4 H1 H2
D1
H3
H4
148

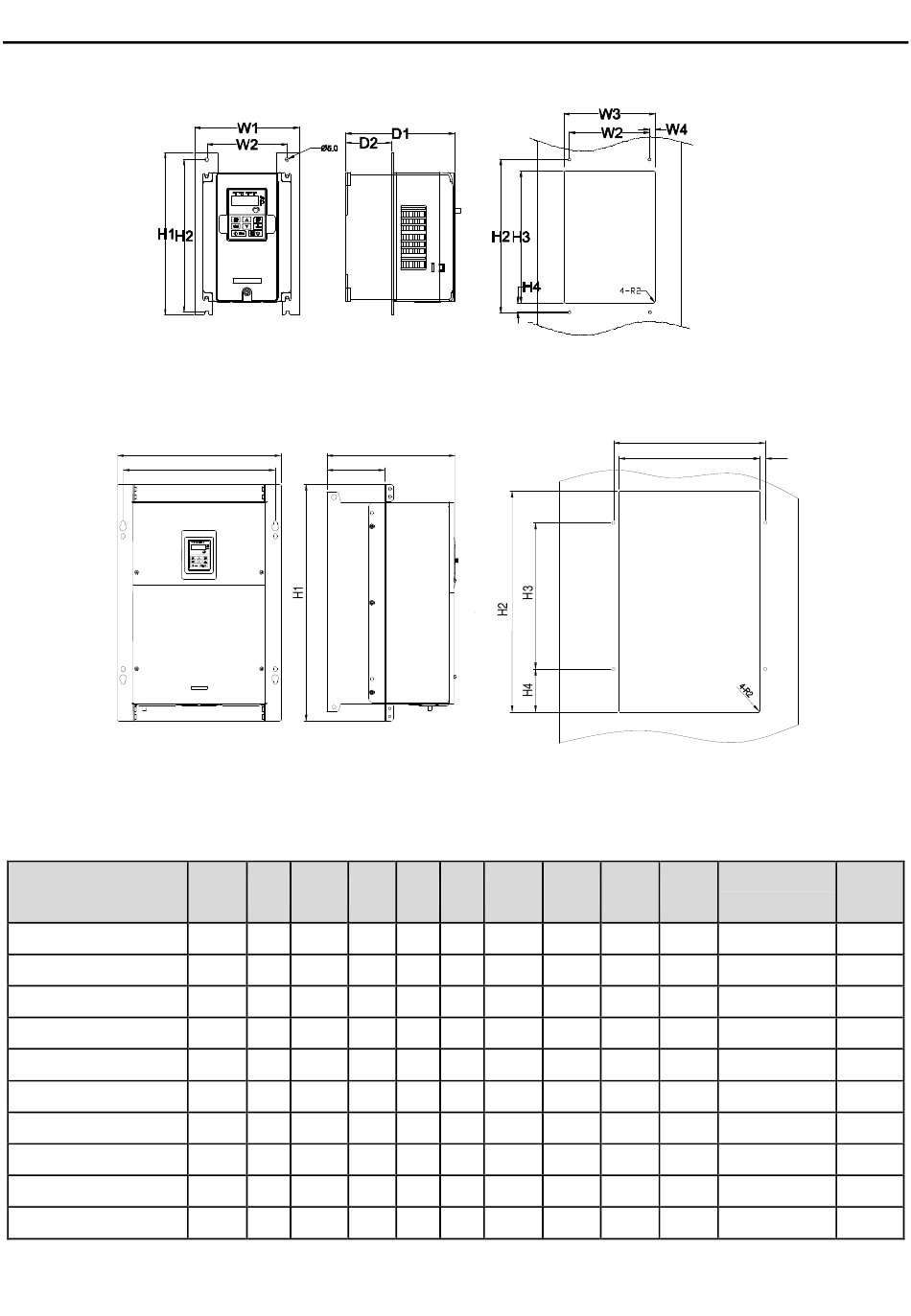

Dimension drawings
Installation hole
W3
W2
Installation
D1
D2
6
167 84.5
6
167 84.5
6
167 84.5
12 196.3 113
12 196.3 113
6
167 84.5
6
167 84.5
12 196.3 113
12 196.3 113
12 196.3 113
W4
Screw
hole
6
M5
6
M5
6
M5
6
M5
6
M5
6
M5
6
M5
6
M5
6
M5
6
M5
