Note: the minimum space of A and B is 100mm if H is 36.6mm and W is 35.0mm.
(2) Wall and flange mounting for the VFDs (three phase 400V, ≥4KW and three phase 230V,
≥1.5KW)
Flange

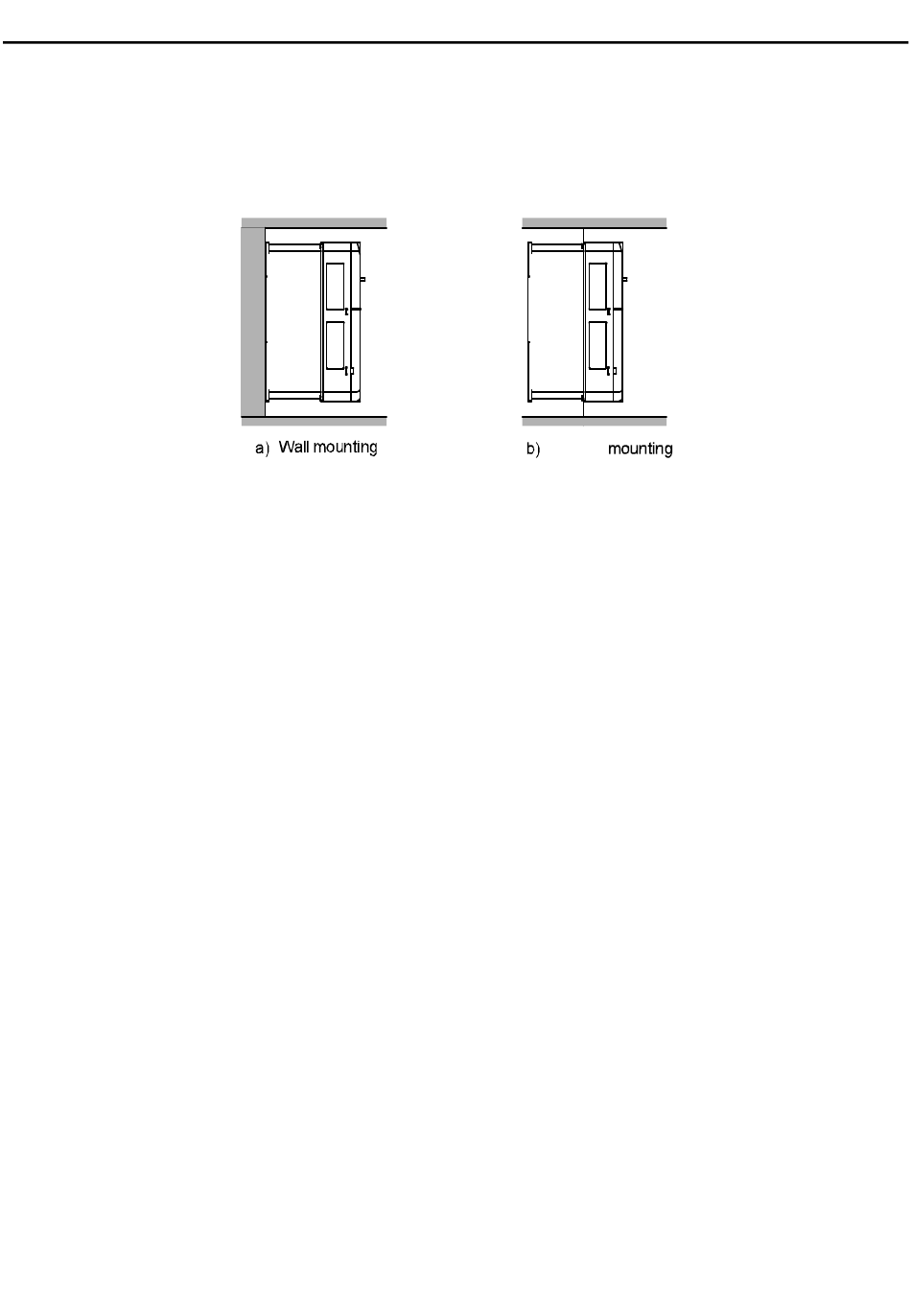

Figure 3-2 Installation
(1) Locate the position of the installation hole.
(2) Fix the screw or nut on the located position.
(3) Put the VFD against the wall.
(4) Tighten up the screws.
16
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the Goodrive20-EU VFD Series and is the answer not in the manual?
Questions and answers
Start stop time
The start-stop time for the INVT Goodrive20-EU VFD Series is not explicitly mentioned in the provided context. However, the "Pre-exciting time" (P03.25) is listed as a parameter that helps improve torque performance during startup, with a setting range of 0.000 to 10.000 seconds. If more specific start-stop time details are needed, they may be found in additional documentation.
