reset can be operated by the STOP/RST on the keypad, control terminals or communication
commands.
4.2.4 Displayed state of function codes editing
In the state of stopping, running or fault, press PRG/ESC
there is a password, see P07.00).The editing state is displayed on two classes of menu, and
the order is: function code group/function code number→function code parameter, press
DATA/ENT into the displayed state of function parameter. On this state, press DATA/ENT to
save the parameters or press
RUN/TUNE
FWD/REV LOCAL/REMOT
4.3 Keypad operation
Operate the VFD via operation panel. See the detailed structure description of function codes
in the brief diagram of function codes.
4.3.1 How to modify the function codes of the VFD
The VFD has three levels menu, which are:
1. Group number of function code (first-level menu)
2. Tab of function code (second-level menu)
3. Set value of function code (third-level menu)
Remarks: Press both the PRG/ESC and the DATA/ENT can return to the second-level menu
from the third-level menu. The difference is: pressing DATA/ENT will save the set parameters
into the control panel, and then return to the second-level menu with shifting to the next
function code automatically; while pressing PRG/ESC will directly return to the second-level
menu without saving the parameters, and keep staying at the current function code.
Under the third-level menu, if the parameter has no flickering bit, it means the function code
cannot be modified. The possible reasons could be:
1) This function code is not modifiable parameter, such as actual detected parameter,
operation records and so on;
2) This function code is not modifiable in running state, but modifiable in stop state.
Example: Set function code P00.01 from 0 to 1.
PRG/ESC to escape.
TRIP
RUN/TUNE
Hz
RPM
A
%
V

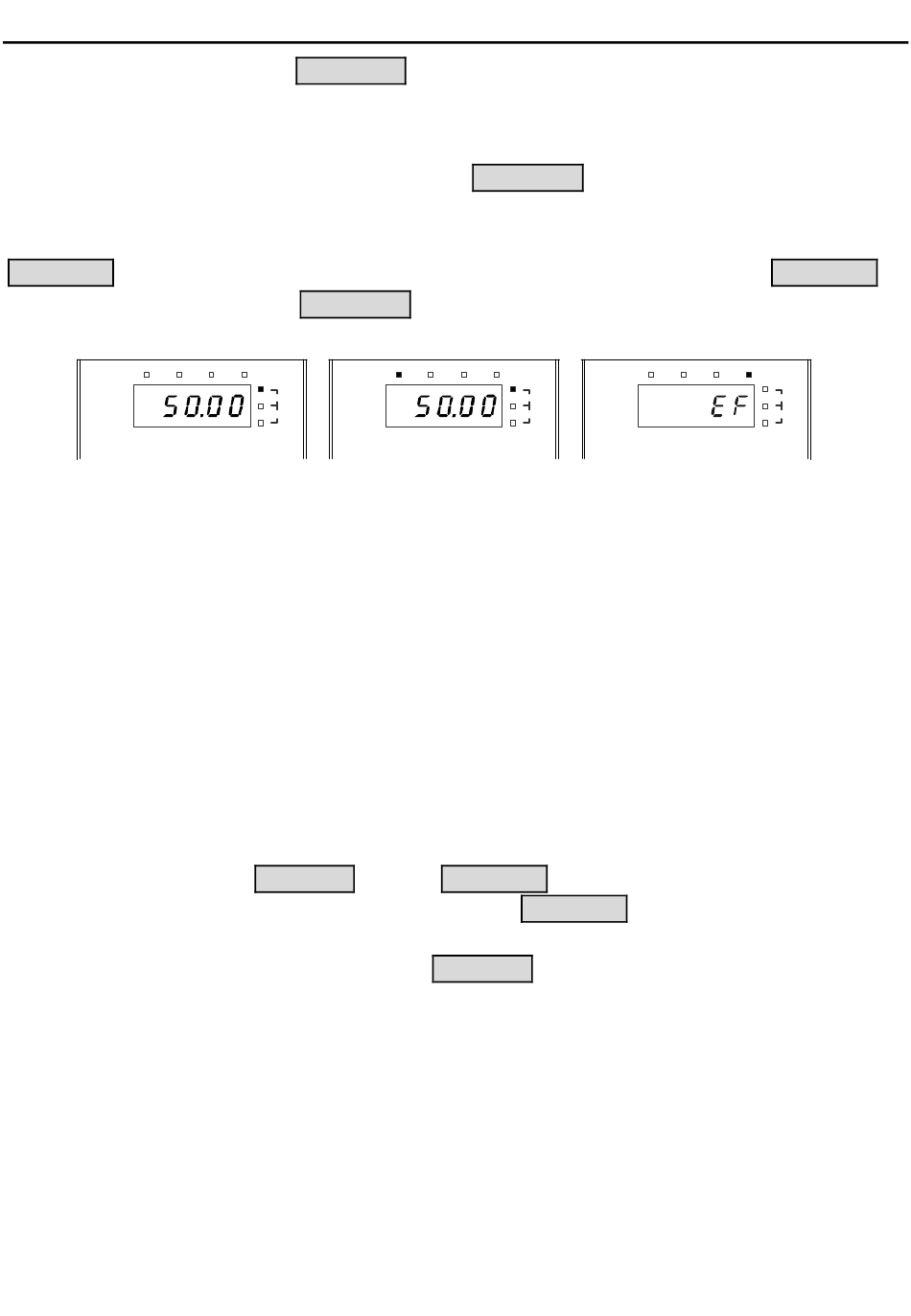

Figure 4-3 Displayed state
FWD/REV LOCAL/REMOT TRIP
Hz
RPM
A
%
V
30
Keypad operation procedure
to enter into the editing state (if
RUN/TUNE
FWD/REV LOCAL/REMOT TRIP
Hz
RPM
A
%
V
