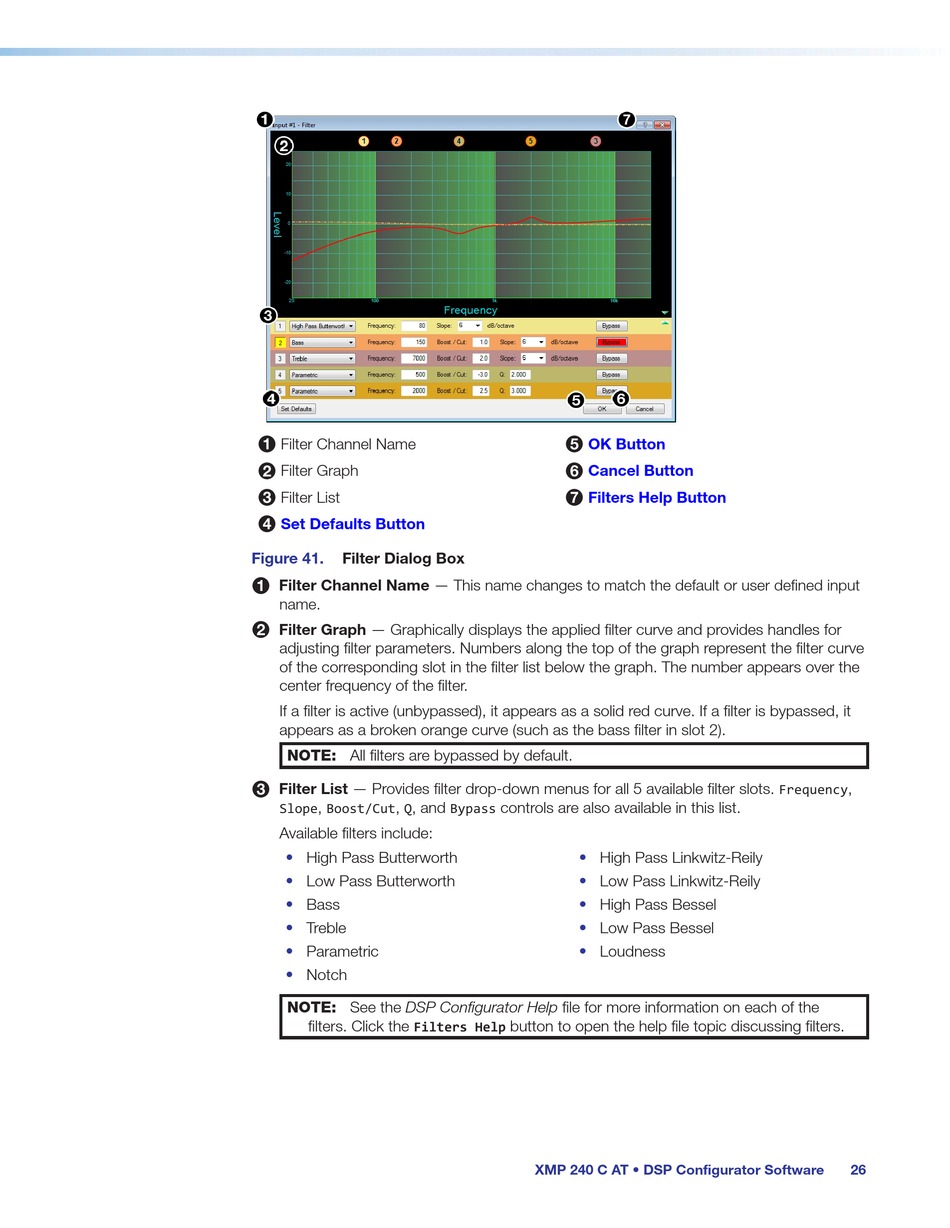

Figure 41.
Filter Dialog Box
Filter Channel Name — This name changes to match the default or user defined input
1
name.
Filter Graph — Graphically displays the applied filter curve and provides handles for
2
adjusting filter parameters. Numbers along the top of the graph represent the filter curve
of the corresponding slot in the filter list below the graph. The number appears over the
center frequency of the filter.
If a filter is active (unbypassed), it appears as a solid red curve. If a filter is bypassed, it
appears as a broken orange curve (such as the bass filter in slot 2).
NOTE: All filters are bypassed by default.
Filter List — Provides filter drop-down menus for all 5 available filter slots.
3
,
,
, and
Slope
Boost/Cut
Q
Available filters include:
•
High Pass Butterworth
•
Low Pass Butterworth
•
Bass
•
Treble
•
Parametric
•
Notch
NOTE: See the DSP Configurator Help file for more information on each of the
filters. Click the
Filters Help
OK Button
5
Cancel Button
6
Filters Help Button
7
controls are also available in this list.
Bypass
•
High Pass Linkwitz-Reily
•
Low Pass Linkwitz-Reily
•
High Pass Bessel
•
Low Pass Bessel
•
Loudness
button to open the help file topic discussing filters.
