Sequencer Display

LL_FILE template allows a base 10 integer, from 0 to 4,294,967,295 (32 bits);
however, it will be displayed as a signed 32 bit number (-1).
Sequencer Display
The Sequencer Display,
in the sequencer. This display is accessed by selecting a Ladder Logic Device object
and then selecting MOD300 TLL Sequencer from the context menu and then a
specific sequence from the Sequence List.

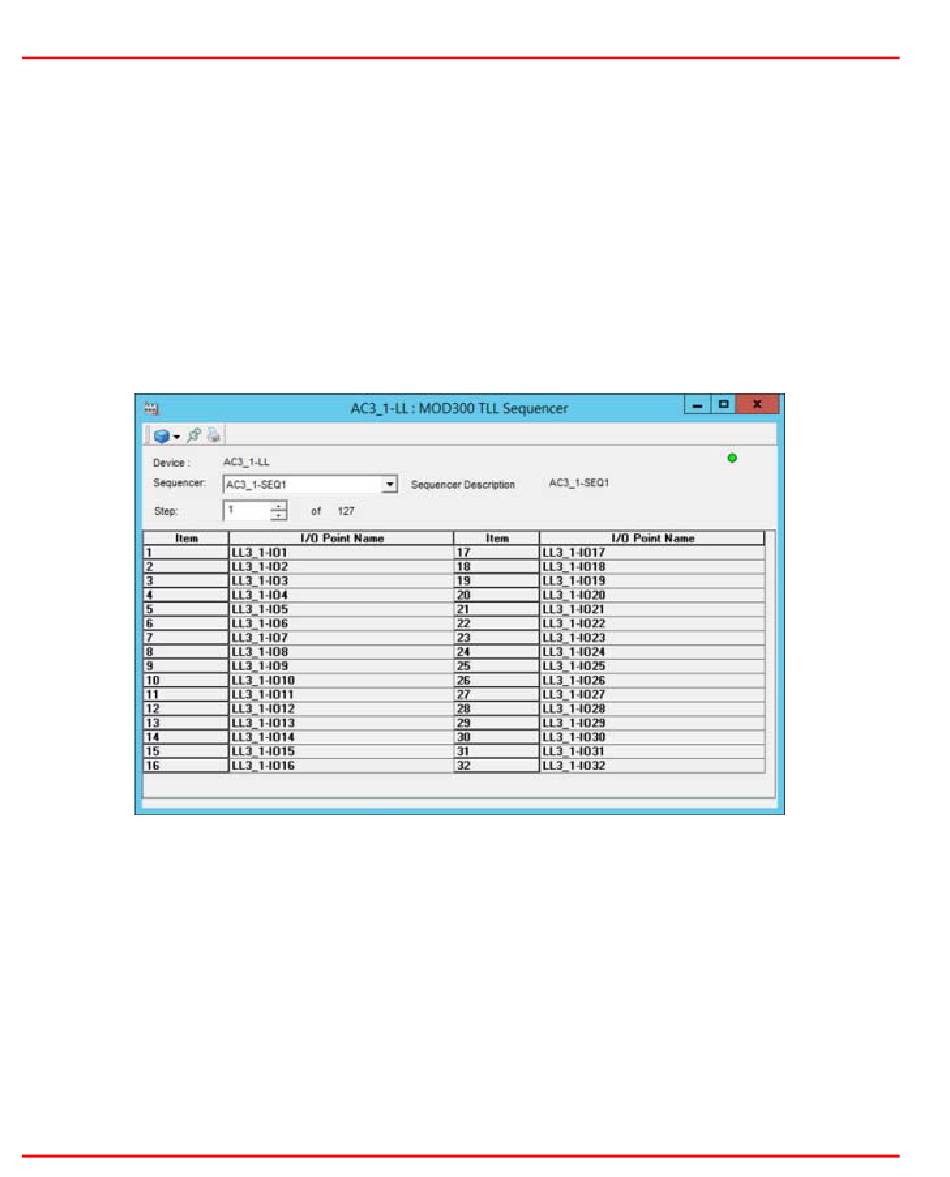

Figure 55. Sequencer Display
A sequencer is a series of up to 128 steps. Each step is a list of as many as 32 I/O
points. The I/O points listed in a sequencer step are manipulated in one way or
another by sequencer program instructions. One type of sequencer instruction
causes the values of input points to be read into a file. Another instruction causes the
values in a file to be sent to output points.
118
Figure 55, has multiple pages, with one page for each step
