Structure of the slave diagnostics
Standard diagnostics/extended diagnostics

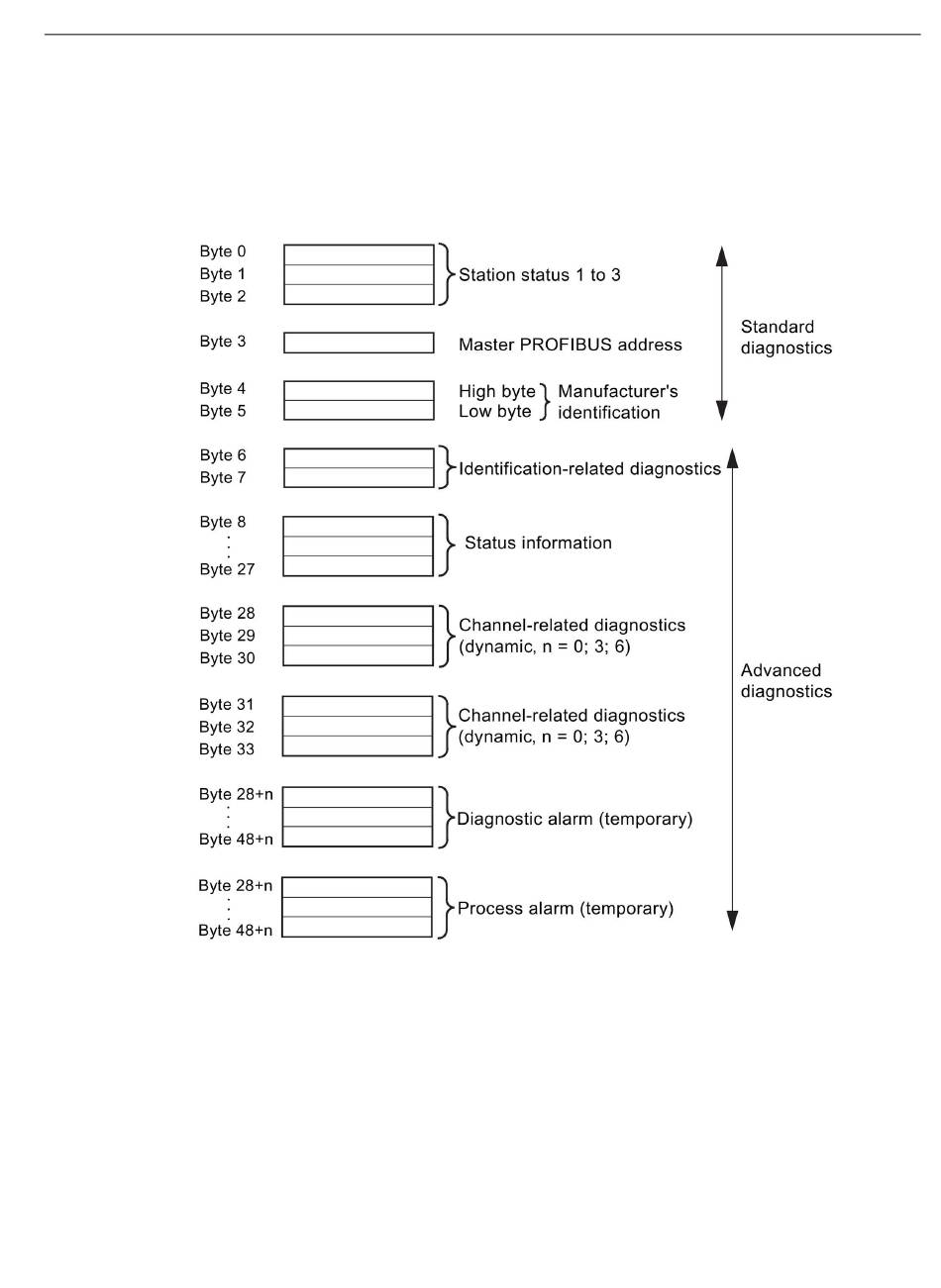

Figure 2-3
The diagnostics telegram has a maximum length of 62 bytes.
SIMOCODE pro - Communication
Function Manual, 11/2018, A5E40508495002A/RS-AC/003
Structure of the slave diagnostics
Communication
2.1 PROFIBUS communication
