Communication
2.4 EtherNet/IP communication
2.4.3

Data security in automation

See Data security in automation (Page 43).
2.4.4

Data transmission

Key statement

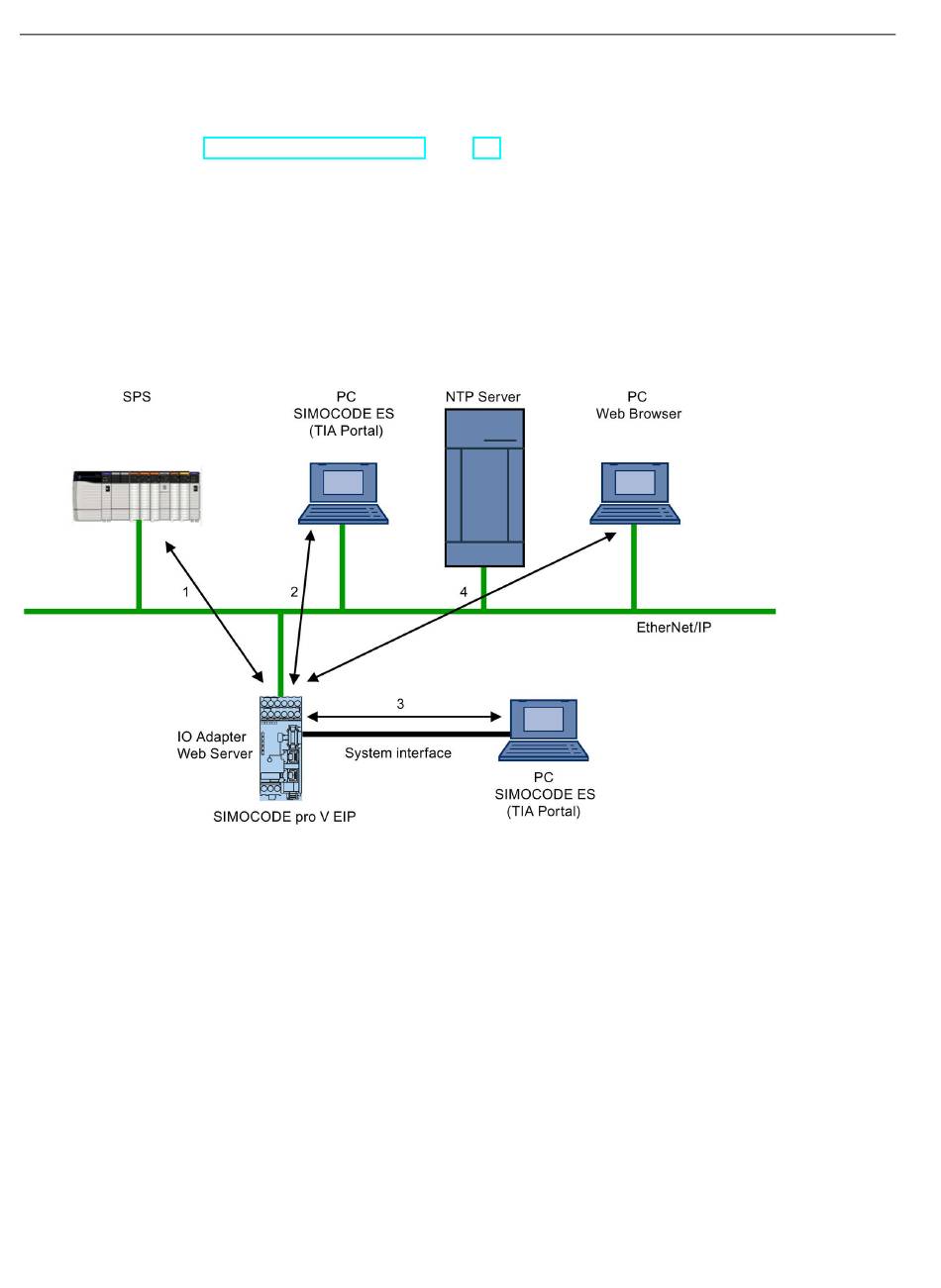

The following figure shows an overview of the EtherNet/IP communication functions
supported by SIMOCODE pro which are described in more detail in the following sections:
Figure 2-32 EtherNet/IP communication functions
1 Communication between PLC (I/O scanner) and SIMOCODE pro (I/O adapter) via
EtherNet/IP
2 Communication between PC with parameterization software SIMOCODE ES (TIA Portal)
and SIMOCODE pro via Ethernet
3 Communication between PC with parameterization software SIMOCODE ES (TIA Portal)
and SIMOCODE pro via the SIMOCODE pro system interface (point-to-point via USB)
4 Communication between PC with web browser and SIMOCODE pro via Ethernet (TCP/IP);
transmission of time of day via NTP from a PC with NTP server to the SIMOCODE pro V EIP
devices
