Intelligent Lighting Controls, Inc. LightLEEDer Operation Manual page 95

Appendix M
Testing Emergency operation:
Test the operation of each RBOM by pressing the test button on the lower left side of module. All relays should re
into the On state, OFF state, or remain in its current state depending on the selection of the relay action jumpers
(see Figure 1).
Testing the entire panel can be done by using the test button on the PMM (see Figure 3).
If a relay does not operate, rst test the relay operation using the manual on/off switch at the relay, then using the
controller keypad under relay status. If the relay is not switching, you can use a spare relay to test the output or switch
the relay control ribbon cable to a con rmed working relay output.
After determining if the relay, relay ribbon cable, or RBOM output point is non-functioning, please contact IlC technical
support line (1-800-922-8004) for additional assistance.
Code-Required Testing:
nFPA requires that the testing of emergency lighting equipment be conducted monthly.
IlC recommends following all requirements for monthly testing, and record keeping.
Refer to nFPA section 7.9.3. for details and requirements.
T
Power Company
Transformer
Main Power
Distribution
3-Phase monitering
of normal power
Emergency
Controll
System
Emergency Generator
EM Control system
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
UL1008
EM Distribution
Transfer
G
Switch

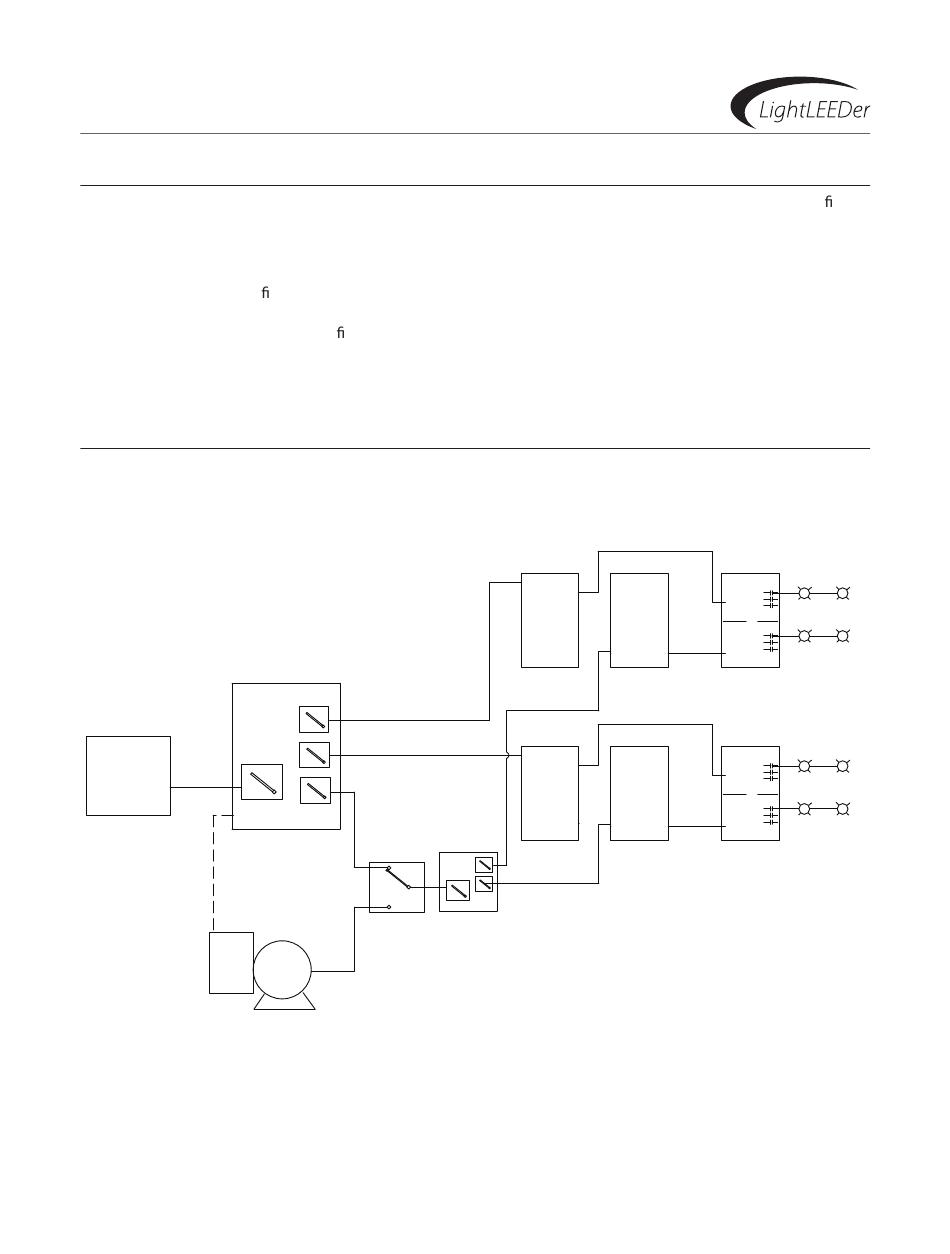

Figure 5 - Power Configuration Example Riser
Normal power Circuits
EM Circuits
2nd Floor 2nd floor
Power panel Emergency
Power panel
Normal power Circuits
EM Circuits
1st Floor
1st floor
Power panel
Emergency
Power panel
Normal Lighting loads
Normal
Load Relays
3 Phase
Power Monitering
EM/Normal Divider
EM Lighting Loads
Emergency
Load Relays
2nd Floor
Relay Control Panel
Normal Lighting loads
Normal
Load Relays
3 Phase
Power Monitering
EM/Normal Divider
EM Lighting Loads
Emergency
Load Relays
1st Floor
Relay Control Panel
