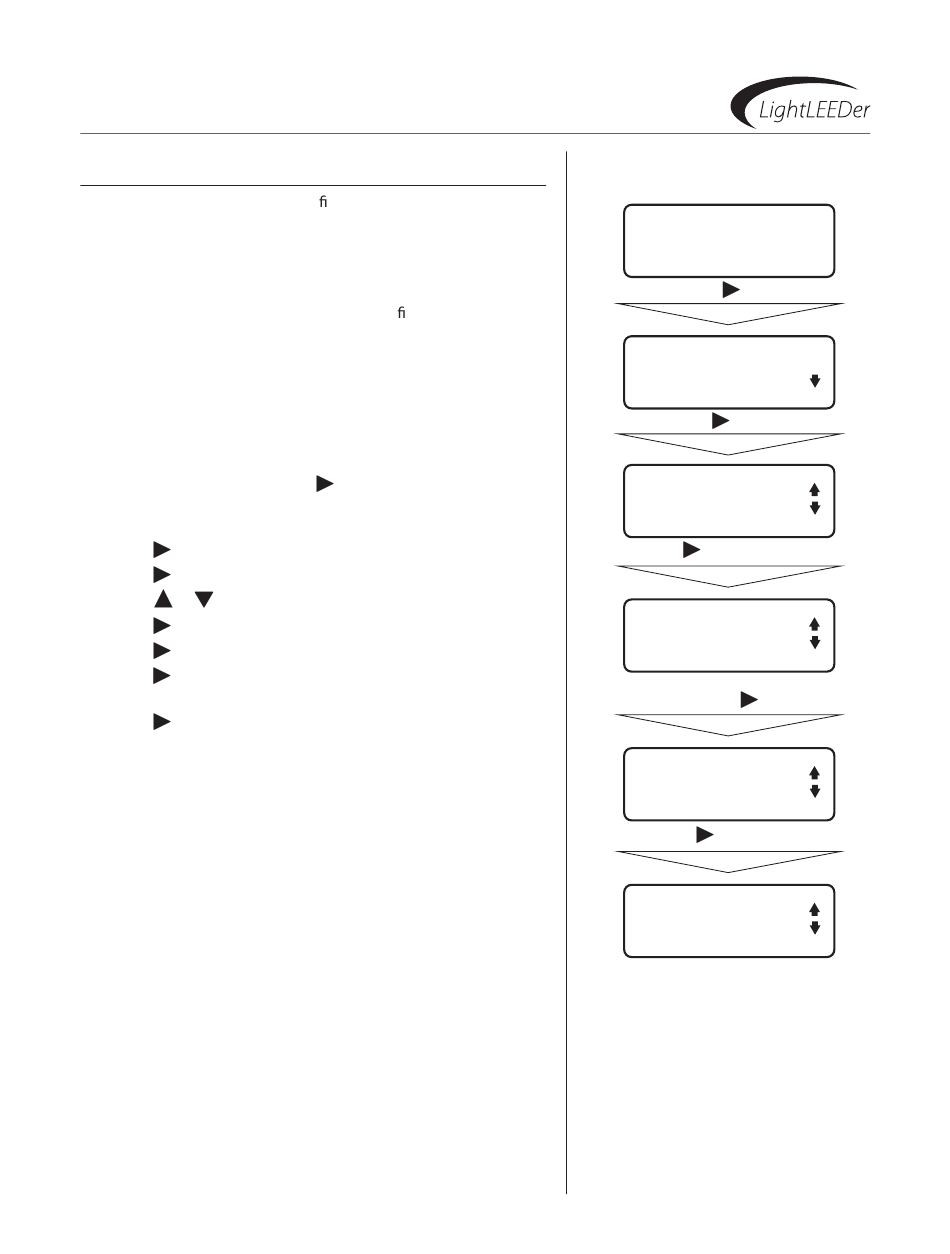

3.6 Relay Configuration and Programming

This section will explain how to con gure your relays, set power-up
options, set conditionals, relay groups, and mapping inputs to con-
trol relays.

3.6.1 Configure Number of Relay Poles and Relay Lock

The default setting is single pole relay with the lOCK disabled. If
multi-pole relays are installed you must set the rst relay location to
either double or triple pole. The lock function, if enabled, allows the
user to disable any control from timers, switches, or other type of
control by means of the switch on the relay.
Note: Double and triple pole relays must be assembled at the factory
with physical connections between each pole. Using single pole relays to
control multiple poles may be hazardous and is not acceptable by the
NEC and may void the warranty.
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press RelAYs
3. Press RelAY OPTIOns
4. Press or to select the relay
5. Press eDIT
6. Press RelAY TYPe
7. Press POle to toggle between sIngle, DOUBle, or TRIPle
pole
8. Press lOCK to toggle between DIsABle/enABle
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
Configure Number of Relay Poles
and Relay Lock
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT NODE
Press eDIT
RELAYS
INPUTS
TIMERS
CLOCK
Press RelAYs
ARELAY STATUS
RELAY OPTIONS
GROUP RELAYS
INPUT MAPPING
Press RelAY OPTIOns
RELAY OPTIONS
RELAY RLY:01.01
EDIT
scroll to select the desired relay,
then press eDIT
RELAY TYPE
TIMER OFF OPTION
POWER-ON ACTION
CONDITIONALS
Press RelAY TYPe
RELAY RLY:01.01
POLE: SINGLE
LOCK: DISABLED
Press POle or lOCK to make
adjustments
