Intelligent Lighting Controls, Inc. LightLEEDer Operation Manual page 76

Appendix B
Motor Controller Programming
Setup Device:
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press 2 times to scroll down
3. Press OTheR DeVICes
4. Press MOTOR OUTPUTs
5. Press or to select the dimmer address (set with the rotary
switches)
6. Press ACTIVe to enable the device
Device Status:
status of communications can be viewed at the motor output screen
and the output state can be viewed from the control screen.
Switch Input Control:
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press 2 times to scroll down
3. Press OTheR DeVICes
4. Press MOTOR OUTPUTs (motor output screen)
5. Press OUTPUT then
(1-4)
6. Press COnFIgURe (control screen)
7. Press TYPe until "InPUT" appears
8. Press sOURCe
9. Press nODe then
switch is located
10. Press DeVICe then
the switch
11. Press InPUT then
12. Press BACK
13. Press ACTIOn then Press
action appears (see table 3.13)
14. Press RUn TIMe then
required
15. Press hOMe to exit
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
eDIT (Networked Panels
or to select the device channel
or to select the panel where the
or to select the address of
or to select the input number
ACTIOn until the desired
or to adjust the "On" time

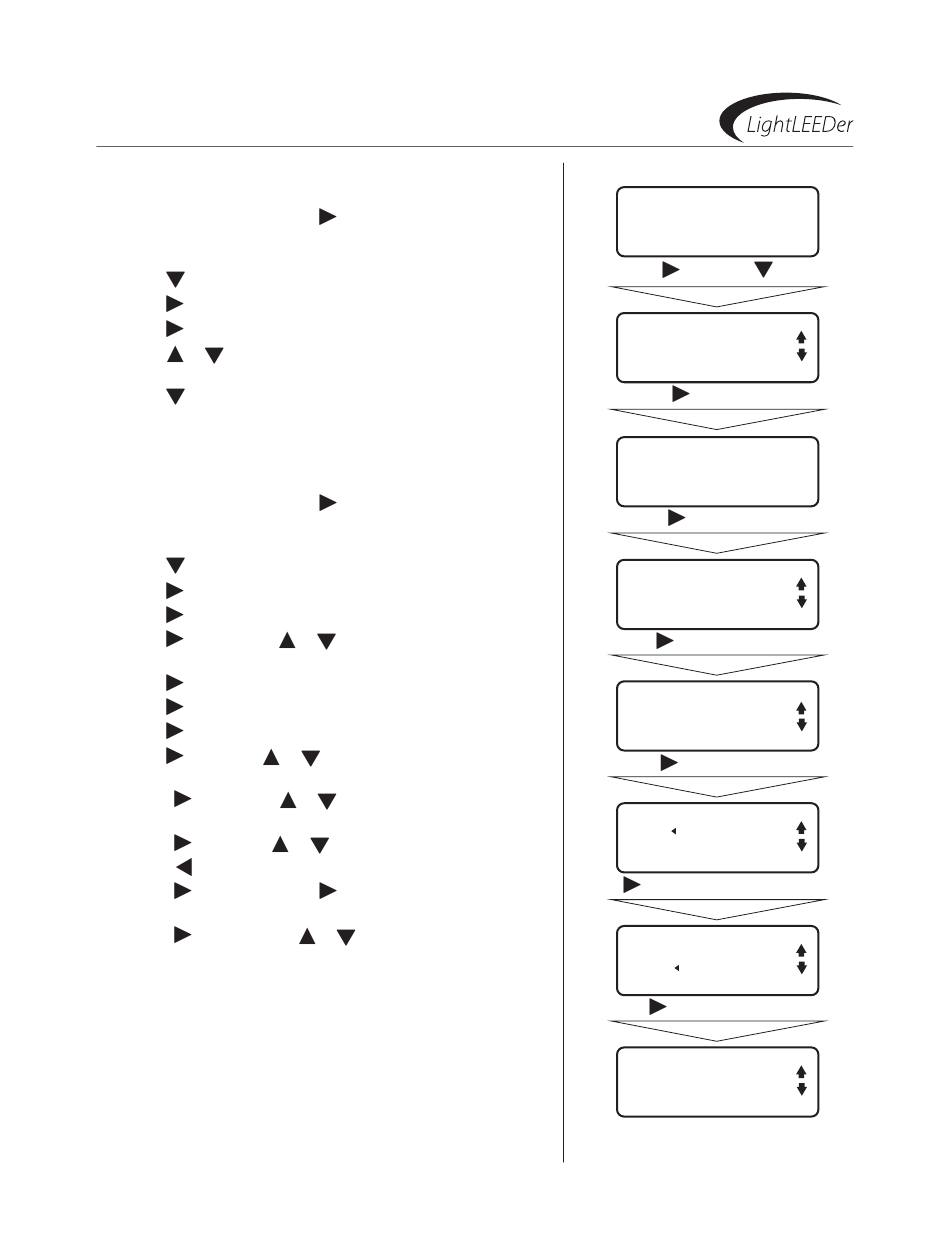

Motor Controller Programming
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT NODE
Press eDIT, then
TIMERS
CLOCK
PRESETS
OTHER DEVICES
Press OTheR DeVICes
ADD-ON MODULES
DIMMER OUTPUTS
MOTOR OUTPUTS
Press MOTOR OUTPUTs
DEVICE 01
ACTIVE: YES
OUTPUT: M:01.01.1
CONFIGURE (COM)
Press COnFIgURe, then TYPe
CONTROL 01
TYPE:INPUT
SOURCE
ACTION
Press sOURCe, then nODe
CONTROL 01
NODE IN:01.01.1
DEVICE
INPUT
Press DeVICe then InPUT Then BACK
CONTROL 01
ACTION
DEVICE
INPUT
Press ACTIOn then RUn TIMe
CONTROL 01
ACTION: RUN-POS
RUN TIME=LATCH
Press hOMe
Continued on next page
PM.
01.
twice
