Appendix A
Dimmer Module Programming
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press until OTheR DeVICes appears
3. Press OTheR DeVICes
4. Press DIMMeR OUTPUTs
5. Press or to select the dimmer address
(set with the rotary switches)
6. Press ACTIVe to enable the device
7. Press COnFIgURe to to access settings for:
Photocell Tracking:
8. Press PC TRACKIng (set to Disabled, 2point, 3 point
or set point)
Fade Rate:
8. Press FADe RATe (set from 0 to 300 seconds)
Minimum and Maximum Levels:
8. Press MIn OUTPUT leVel or MAX OUTPUT leVel
(set from 0 to 100% MIn, 100 to 0% MAX)
Power-On Levels:
8. Press until POWeR-On leVel appears
9. Press POWeR-On leVel (set from 0 to 100%)
Control Options:
8. Press until COnTROl OPTIOns appears
9. Press COnTROl OPTIOns (set a type of control: Timer, Input,
Preset; then a source and an Action)
DMX Control:
8. Press until DMX COnTROl appears
9. Press DMX COnTROl (Track up to 512 channels)
Dimmer Status:
8. Press until sTATUs/COnTROl appears
9. Press sTATUs/COnTROl (Raise or lower set Points to make
equal))
10. Press hOMe to exit
ILC LightLEEDer Operation Manual
Version 1C 3/14/17

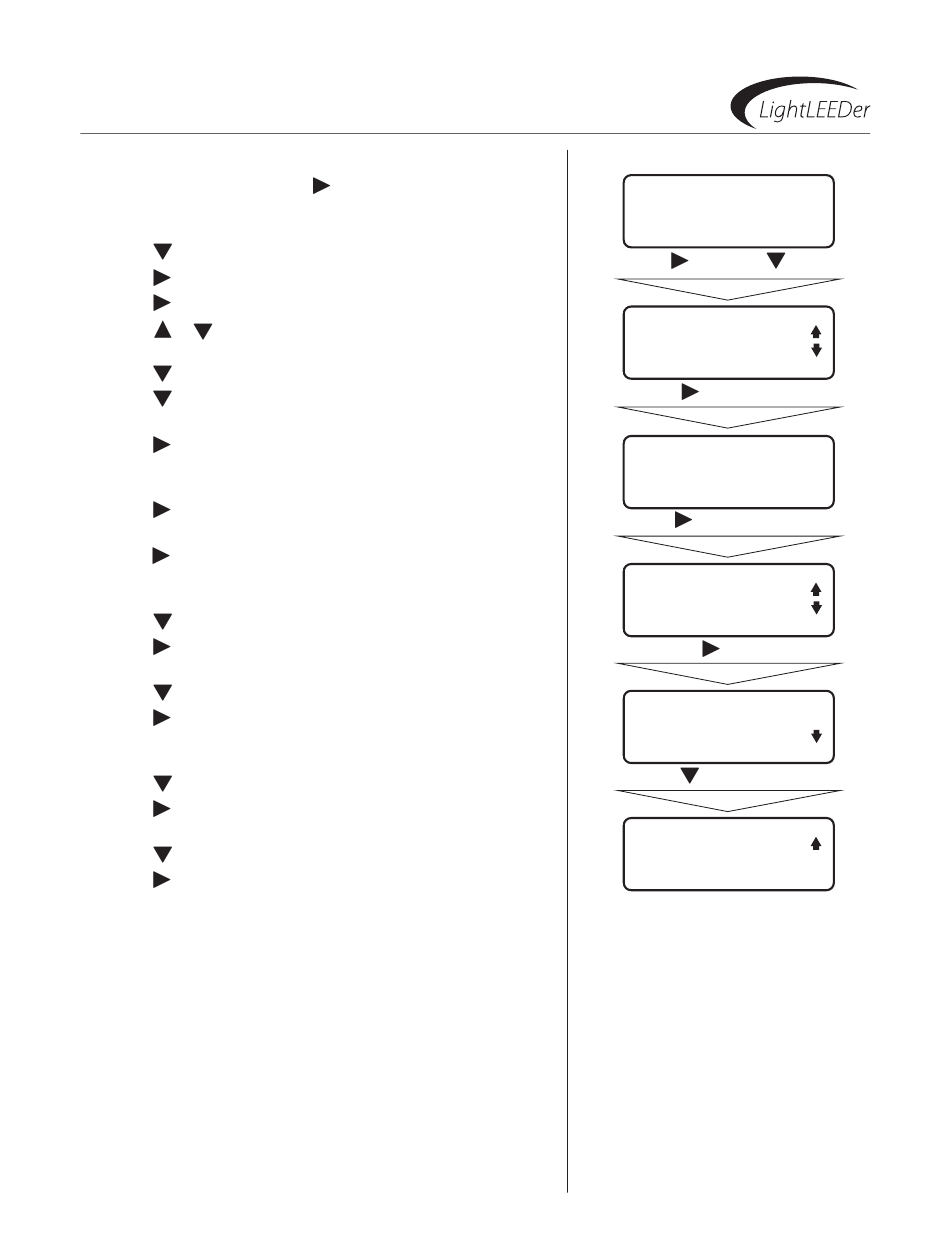

eDIT (Networked Panels
Dimmer Module Programming
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT NODE
Press eDIT, then twice
TIMERS
CLOCK
PRESETS
OTHER DEVICES
Press OTheR DeVICes
ADD-ON MODULES
DIMMER OUTPUTS
MOTOR OUTPUTS
Press DIMMeR OUTPUTs
DEVICE 01
ACTIVE: YES
OUTPUT: D:01.01.1
CONFIGURE (COM)
Press COnFIgURe
PC TRACKING
FADE RATE
MIN OUTPUT LEVEL
MAX OUTPUT LEVEL
Press to access options
POWER-ON LEVEL
CONTROL OPTIONS
DMX CONTROL
STATUS CONTROL
PM.
01.
