lighting Controller Details

1.6 Reliant40 Lighting Control Relays

• Controls 120 -347VAC per pole for up to 40 Amps.
• Con gured as 1, 2 or 3 poles.
Ribbon connector
to output board

1.7 Optional Modules

• Basic network Controller for allowing communications to other panels. syncs panel's clocks and settings and added
communications capabilities.
• Advance network Controller allows the same functions as the Basic network Controller along with a high speed
lightsync scanner, TCP/IP, gateway capability, and power for lightsync devices.
• DTMF telephone control with voice prompted control and status.
• DMX512 control from theatrical control systems.
• Modem for programming and access over a
telephone line.
• BAs interface modules for control and monitoring which include; Modbus, n2, BACnet, and lonWorks.

1.8 LightLEEDer Network

• Panels and lightsync devices can be linked together with standard CAT-5, CAT-5e, or CAT-6 cable using RJ45 con-
nectors that easily plugs into the controllers and devices.
• With the use of a network controller you are able to link together up to 254 panels on the network.
• lightsync data line devices connect directly to the local port allowing up to 64 devices per panel, and/or connect
up to 254 devices on the panel network with the use of a network controller.
ILC LightLEEDer Operation Manual
Version 1C 3/14/17

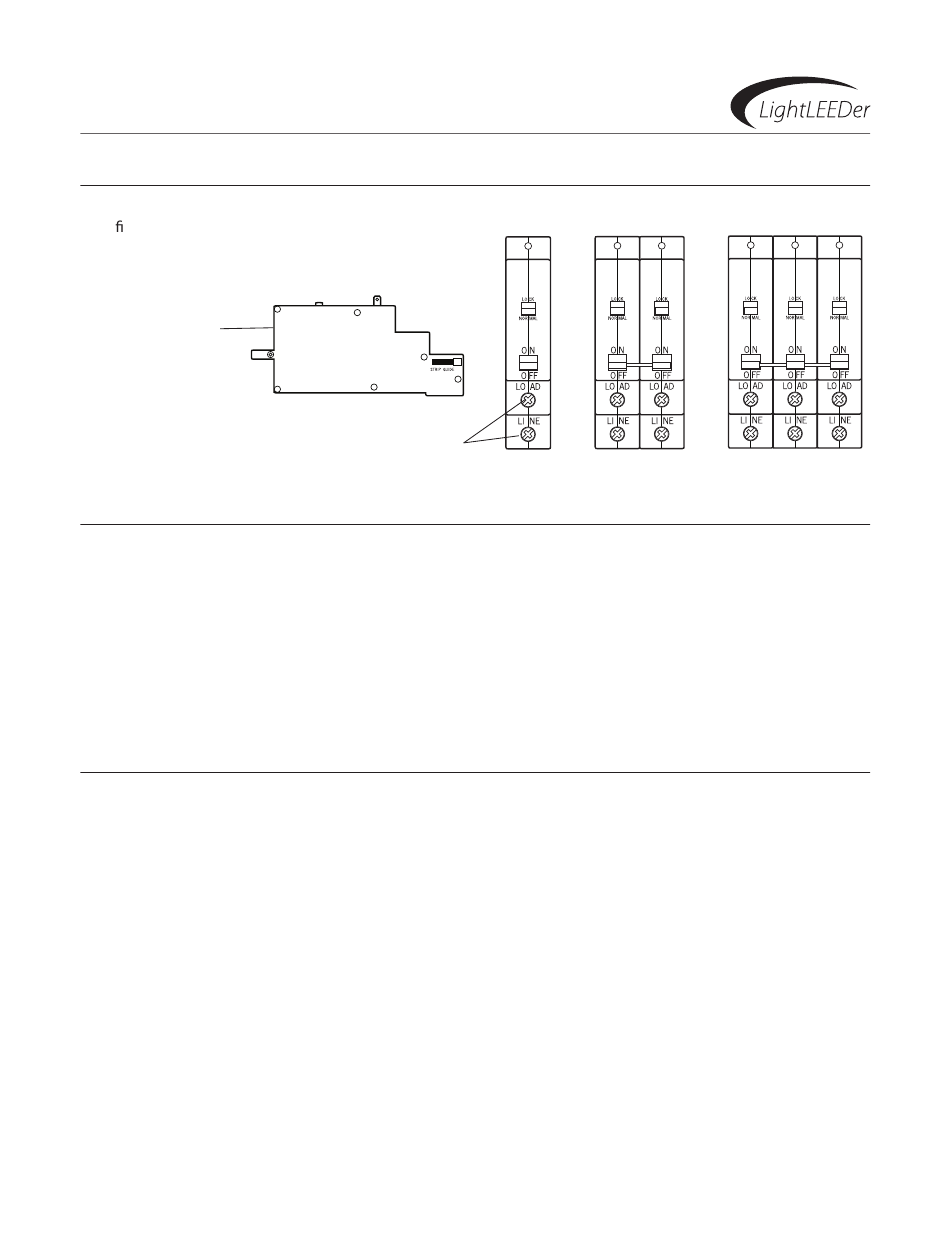

side View
Line and Load terminals
Top View
1-Pole 2-Pole 3-Pole
