Programming
3.5.3 How to see the Status of a Switch Input
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press InPUTs
3. Press or to to select the device node number
4. Press sTATUs
5. Press or to scroll through the devices. This screen will
indicate whether it is connected, and will show button
activation when pressed.
6. Press or to select another device or Press hOMe

3.5.4 Setup an input Active Time

1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press InPUTs
3. Press or to to select the device node number
4. Press COnFIgURe InPUTs
5. Press TYPes
6. Press TYPe TIMes
7. Press or to select the day
8. Press or to select the time in 30 minute
increments
9. Press TYPe to select A or B (type A is the default)
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
eDIT (Networked Panels

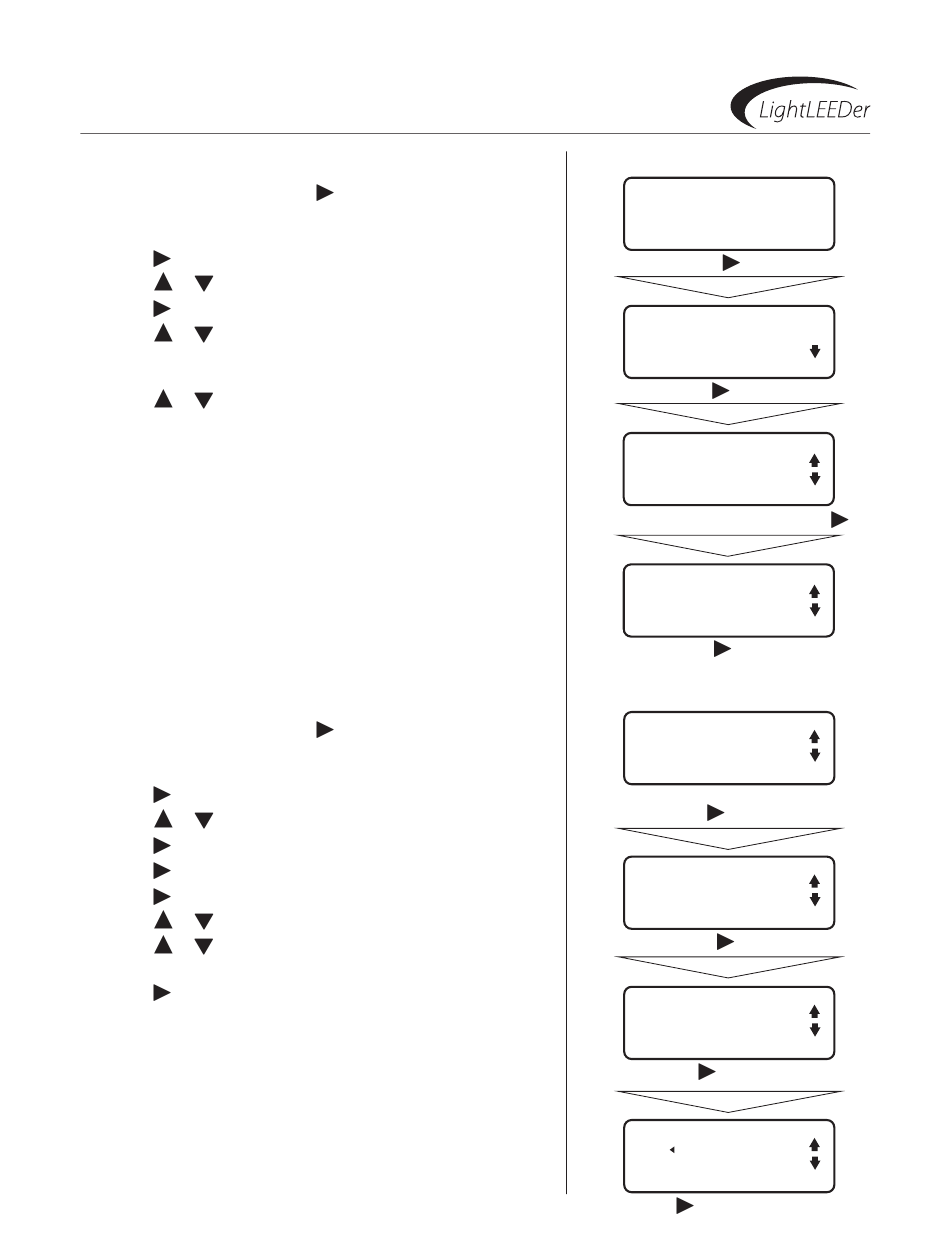

How to see the Status of a Switch Input
ILC LIGHTLEEDER
TUE
09:46:54
EDIT
Press eDIT
RELAYS
INPUTS
TIMERS
CLOCK
Press InPUTs
LS DEVICE: 01 1PB
STATUS
CONFIGURE DEVICE
CONFIGURE INPUTS
scroll to the desired device then press
LS DEVICE: 01 1PB
INPUTS
CONNECTED:YES
Press hOMe
Setup an input Active Time
LS DEVICE: 01 1PB
STATUS
CONFIGURE DEVICE
CONFIGURE INPUTS
From the InPUT screen scroll to the desired
device then press COnFIgURe InPUTs
INPUT IN:01.01.1
TYPES
CONDITIONALS
PILOT
Press TYPes
INPUT IN:01.01.1
TYPES A/B
TYPE TIMES
TOGGLE SOURCE
Press TYPe TIMes
MODE: TIME OF DAY
DAY: SUN
TIME: 12:00A - 12:29A
TYPE: A
Press DAY or TIMe, then
scroll to the desired settings
01/21/11.
PM.
NODE 01.
sTATUs
