Programming

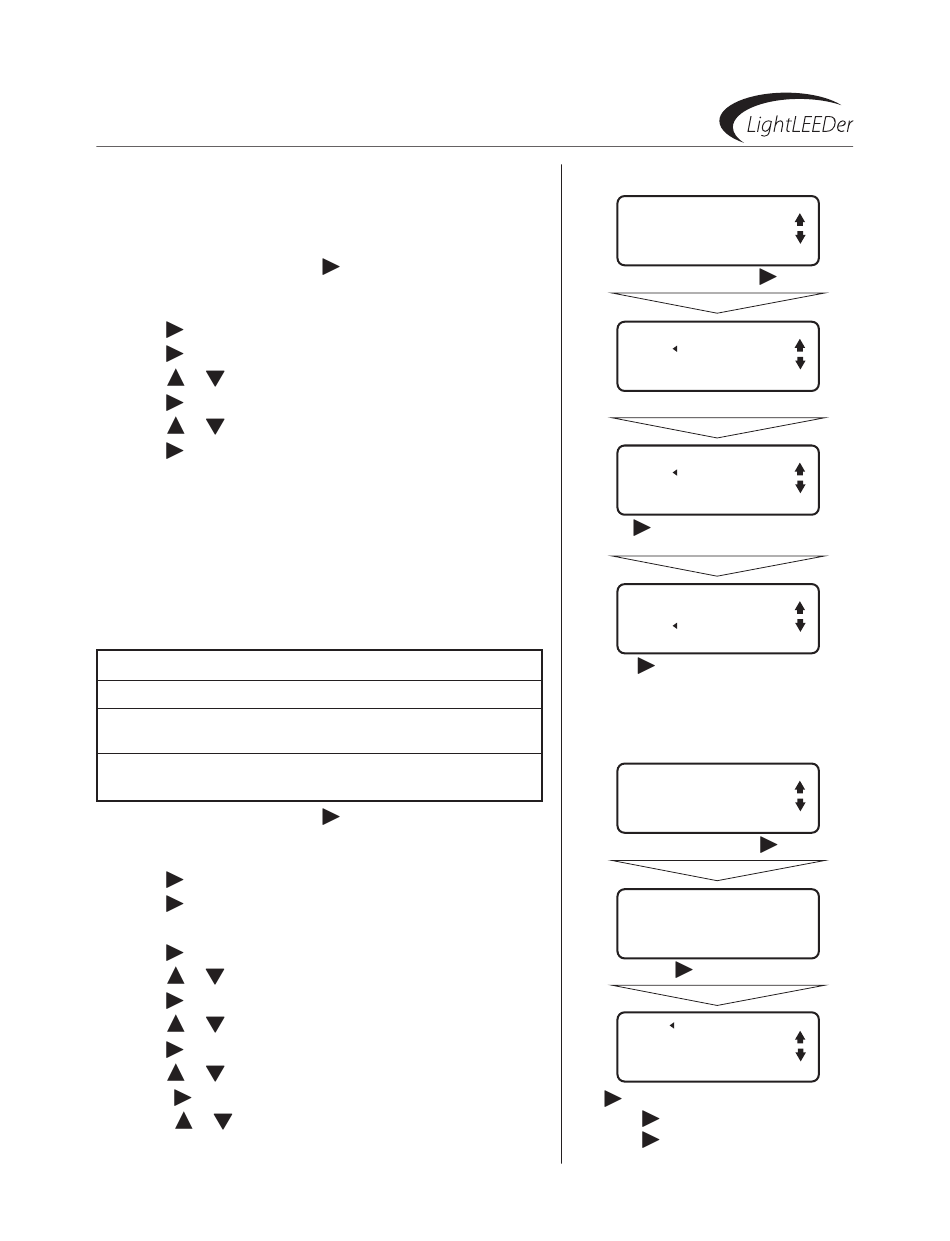

3.6.5 Configure Relay Groups

Relays can be grouped together to make it easy to program timers
and inputs. The lightleeDer has the capability of 256 groups that are
network-wide.
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press RelAYs
3. Press gROUP RelAYs
4. Press or to select the group desired
5. Press RelAY
6. Press or to select the relay
7. Press InClUDe to toggle between Yes and nO
8. Press " hOMe" to exit to the home screen

3.6.6 Map an Input to Control Relays or Groups

Inputs must be programmed to control the relays to the desired ac-
tion. This is accomplished at the panel level for each node. Note: Inputs
must be configured using the procedure in section 3.5 prior to mapping
The relay control actions are listed below and the control may vary
depending on the input type selected as shown.
Table 3.11: Relay Action
• ON (SA H-P) = On only, hID power, step A for 2/4 step switching
• OFF (SB H/L) = OFF only, hID high-low n.O., step B for 2/4 step
switching
• ON-OFF (H/C) = On/OFF, hID high-low n.C., step A for 2/4 step
switching
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press RelAYs
3. Press InPUT MAPPIng
For Local Inputs to Relay Control
4. Press lOCAl/RelAYs
5. Press or to select the lightsync input device address
6. Press InPUT
7. Press or to select the lightsync Input
8. Press RelAY
9. Press or to select the relay to be controlled
10. Press ACTIOn
11. Press or to select the action (On (A), OFF (B), On-OFF)
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
eDIT (Networked Panels
Configure Relay Groups
RELAY STATUS
RELAY OPTIONS
GROUP RELAYS
INPUT MAPPING
From the RelAY screen, press
RELAY GROUPS
GROUP: GROUP:001
RELAY: RLY:01.01
INLUCDE:YES
scroll to the desired group
RELAY GROUPS
GROUP: GROUP:001
RELAY: RLY:01.01
INCLUDE:YES
Press RelAY and scroll to the relay
to include (or remove) in group
RELAY GROUPS
GROUP: GROUP:001
RELAY: RLY:01.01
INCLUDE:YES
Press InClUDe to add or remove
relay from group
Map an Input to Control Local Relays
RELAY STATUS
RELAY OPTIONS
GROUP RELAYS
INPUT MAPPING
From the RelAY screen, press
INPUT MAPPING
LOCAL/RELAYS
LOCAL/GROUPS
NETWORK INPUTS
Press lOCAl/RelAYs
DEVICE IN:01.01.1
INPUT
RELAY RLY:01.01
ACTION NONE
Press InPUT and scroll to the desired input
Then Press RelAY and scroll to the desired relay.
Then Press ACTIOn and scroll to the desired action.
Continued on next page
gROUP RelAYs
InPUT MAPPIng
