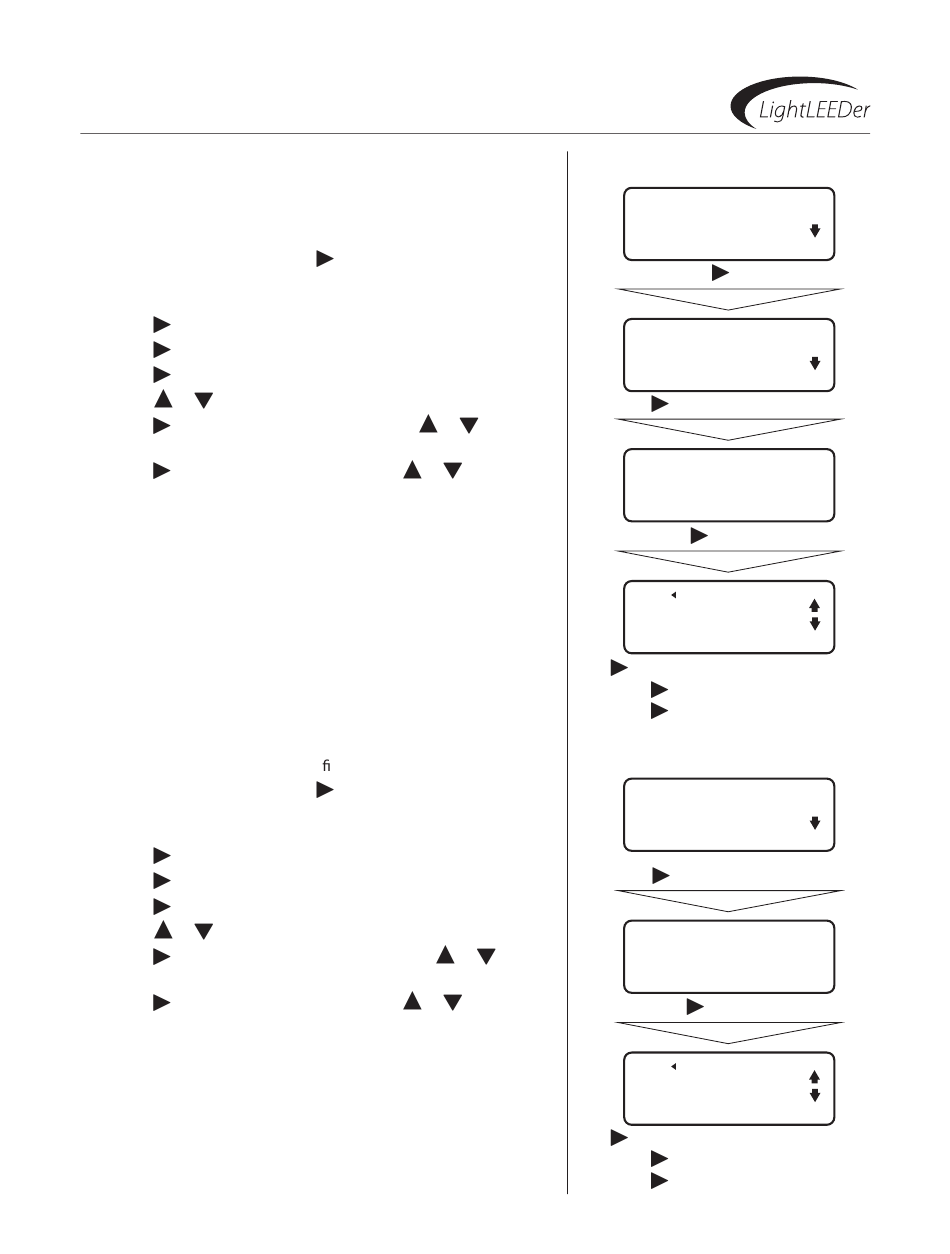

3.7.3 Timer Mapping Control

Timer mapping assigns the relays being controlled to the timers
programmed for the action you require.
Timer to Relay Control
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press TIMeRs
3. Press TIMeR/RelAY COnTROl
4. Press TIMeR/RelAY
5. Press or to select the timer that will control the relay
6. Press RelAY to select the relay, then press
the relay
7. Press ACTIOn to select the action, then
the action
8. Do the above for each relay being controlled by each timer
9. Press " hOMe" to exit to the home screen
Timer to Group Control
see section 3.3.5 to learn how to con gure relay groups
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press TIMeRs
3. Press TIMeR/RelAY COnTROl
4. Press TIMeR/gROUP
5. Press or to select the timer that will control the group
6. Press gROUP to select the group, then press
select the group
7. Press ACTIOn to select the action, then
the action
8. Press " hOMe" to exit to the home screen
