Appendix A
Dimmer Module
The lightsync Dimming Module is designed for 0 – 10V device control. It is used in conjunction with a photocell con-
troller for programmable daylight harvesting. This module can be installed in the lighting control panel or remotely
mounted on the lightsync network. each of the 4 independent channels can control up to 200 ballasts with 256 steps
between 0 and 10V. Outputs are designed to sink voltage, source voltage, or direct drive for monitoring and are ad-
justable per channel. each output may be programmed to respond to 16 inputs per channel. The intuitive software pro-
vided makes it easy to program or adjust the settings.
4 independent
output channels
Jumpers
A
B
C
Jumpers
A
B
C
Jumper Settings
per Output:
A = Direct
B = Source
C = Sink (default)
ILC LightLEEDer Operation Manual
Version 1C 3/14/17

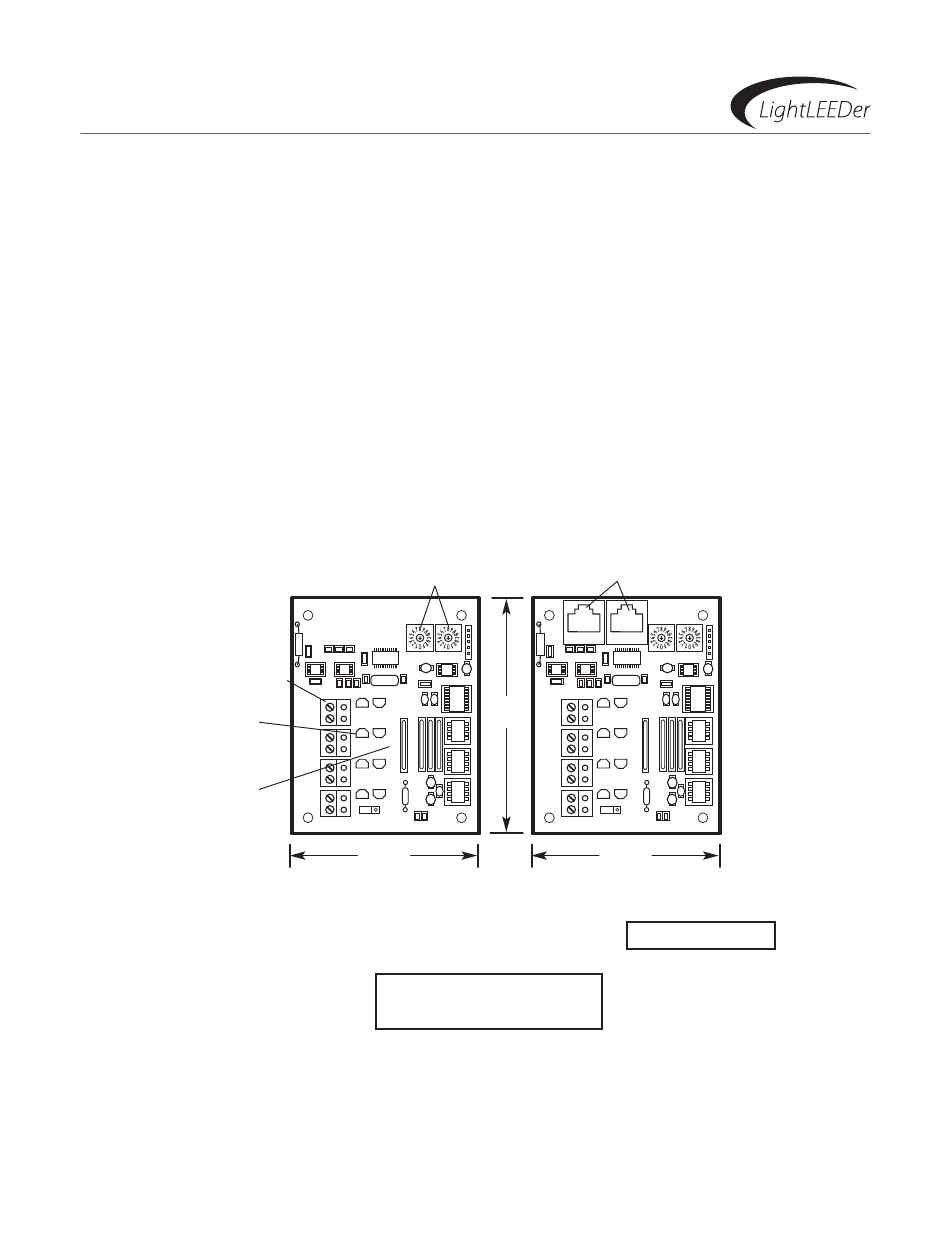

Panel Mount
Node address settings (Each device must
be set to a unique node address)
77013537A
1
2
3
4
2.75"
LightSync Dimming Module
Warning: To prevent electrocution and/or damage
to hardware, measure voltage from energized ballast
prior to terminating.
Remote Mount
RJ-45 Data connectors
to LightSync network
IN OUT
3.5"
1
2
3
4
2.75"
100mA Maximum per module
77013537A
