3.1 Configure Panels into the Network System

1. From the network Controller's home screen press
2. Press neTWORK
3. Press or to select the node to add into the system.
4. Press ACTIVATe or DeACTIVATe (note: node 01 must always
be activated)
5. The communications status is displayed in the lower right hand
corner of the screen. If nC appears, there is no connection or no
communications to that node.
6. Press "hOMe" to exit to the home screen

3.2 Saving Programming Changes

After making changes to the programming the settings are automat-
ically saved into the system. If no activity is detected for 5 minutes
the screen will time-out and return to the home screen.

3.3 Clearing Memory

One of the most important things to do before programming your
system is to clear the internal memory. This will remove any program-
ming that may be in the memory.

3.3.1 Clearing all Memory

1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. scroll until sPeCIAl FUnCTIOns appears
3. Press to select sPeCIAl FUnCTIOns
4. Press and select FIRMWARe ReVIsIOn
5. From this screen press
enter a hidden menu
6. Press and select CleAR All MeMORY
7. You will be prompted CleAR All MeMORY?
8. Press Yes and the memory will be cleared of all programming.
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
and buttons at the same time to

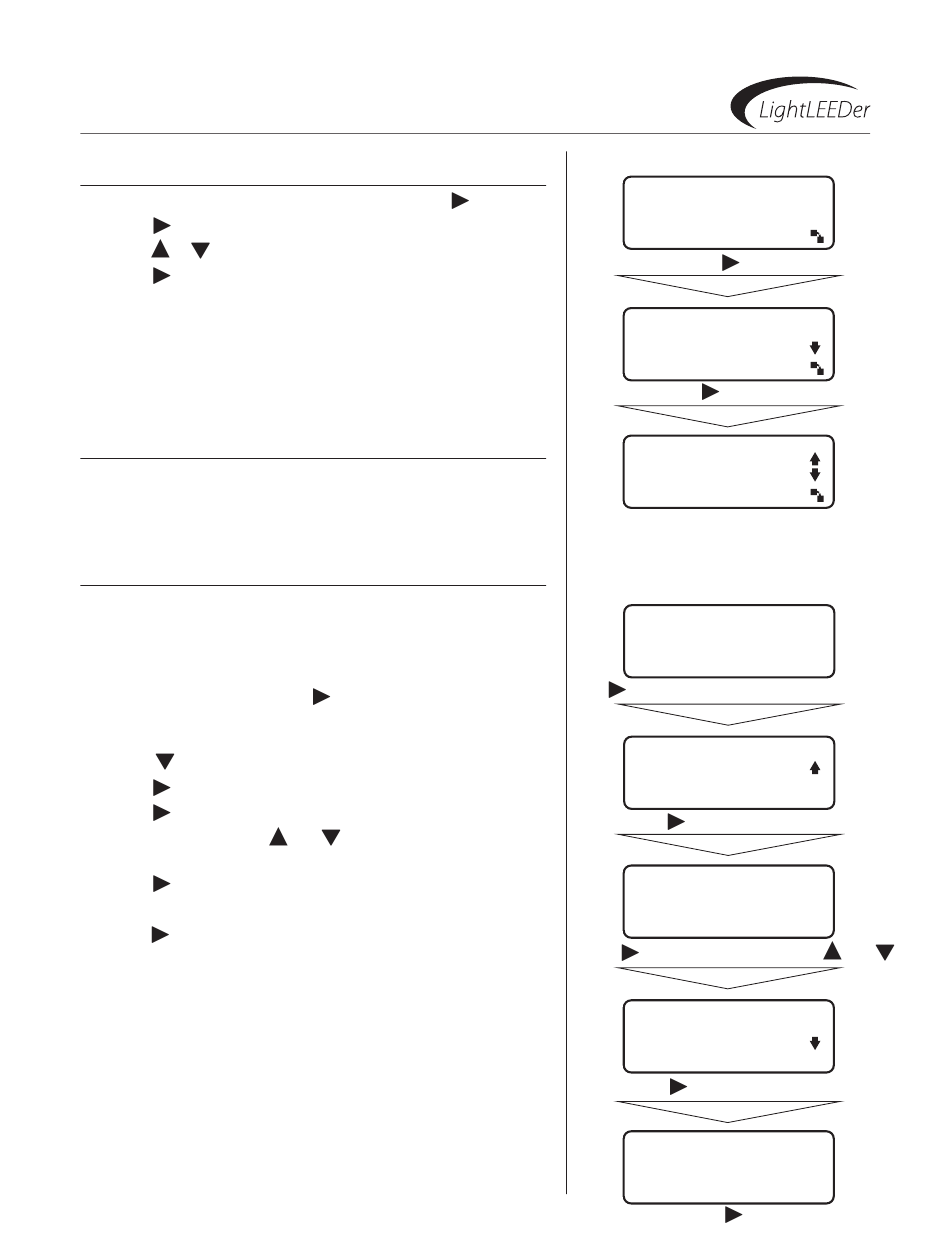

Configure Panels into the Network System
