lighting Controller Details

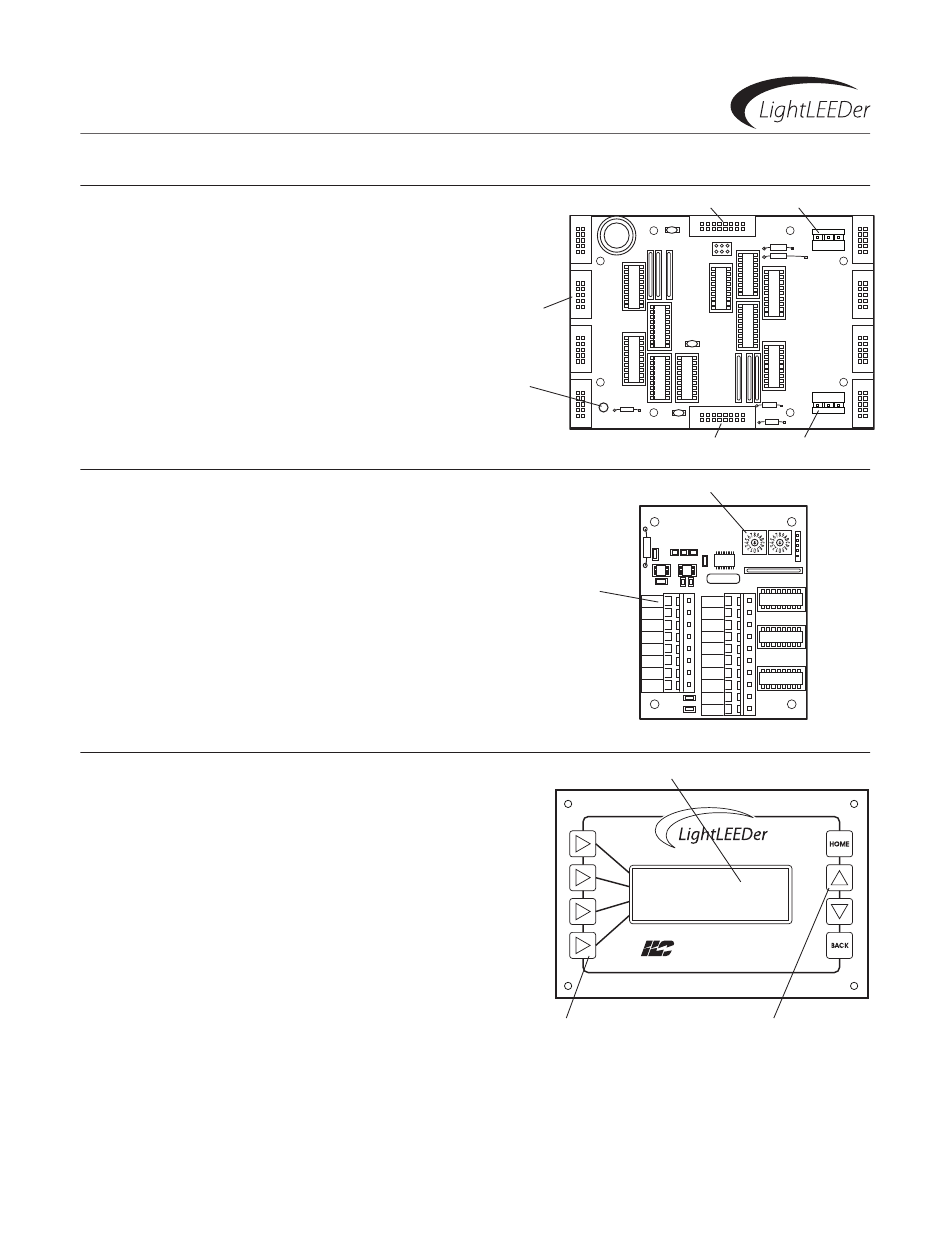

1.3 Output Board

• each board has 8 relay control points with removable ribbon cable
connectors.
• Controls 1, 2, or 3 pole Reliant40 relays.

1.4 Input Module

• Modules have 4 inputs that each accepts 2 or 3 wire type switches.
• Accepts momentary, momentary push-button or maintained
switch types.
• leD pilot output driver for relay status.

1.5 Keypad and Display Module

• 4 line 20 character lCD.
• Backlit when active
• 4 selection buttons, 2 scrolling buttons, a hOMe button, and a
BACK button for programming and interacting with the display.
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
Ribbon cable connector
Ribbon cable
connector to
relays (8/board)
Power LED
POWER
77013488A
97013488
Ribbon cable connector
Node addressing switches
Switch inputs and
pilot outputs (4/board)
4 line, 20 charcter LCD screen
Selection buttons (4)
Power in
24VAC CT
24VAC CT
Power out
IN OUT
1 PILOT 2 PILOT
2 ON
1 ON
2 OFF
1 OFF
2 COM
1 COM
3 PILOT 4 PILOT
3 ON 4 ON
3 OFF 4 OFF
3 COM 4 COM
EXT +V
EXTCOM
77013485A
Intelligent Lighting Controls, Inc.
Scrolling buttons (2)
