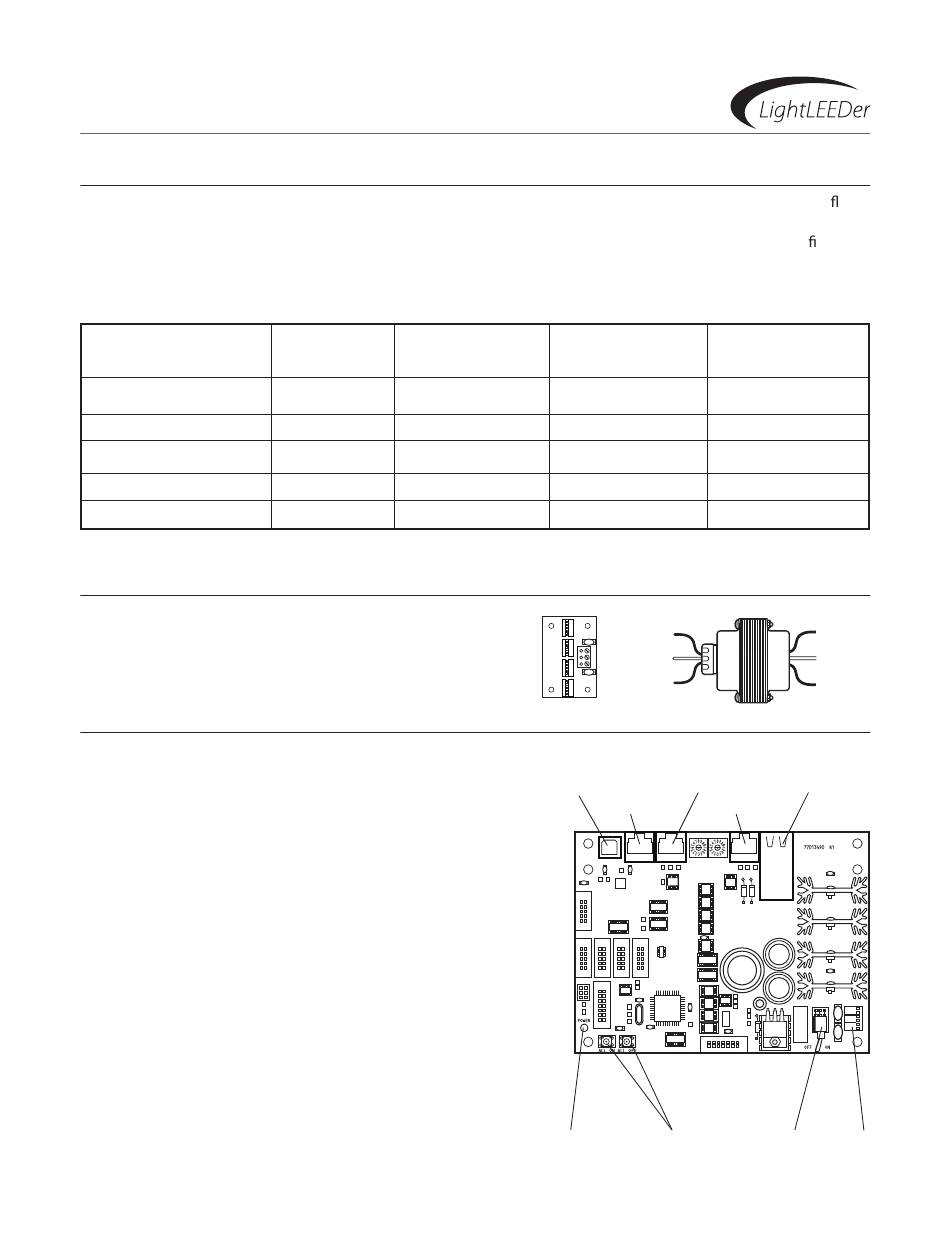

lighting Controller Details
1.0 Enclosure
The enclosures are neMA 1 rated and are supplied with a hinged locking or screw cover designed for surface or ush
mounting. every panel is provided with 4 pre-drilled holes for easy mounting onto the wall or Unistrut™ framing. en-
closures are available in 5 sizes to accommodate from 4 to 64 relays. enclosure sizes with 8 - 64 relays are con gured
with relays on both sides of the enclosure for easy routing of wires from the circuit breaker box and the 4 size enclo-
sures relays are on the right side designed for distributed mounting. All enclosures include high voltage barriers to
separate Class 1, Class 2, and emergency wiring. see Table 1.1 for enclosure dimensions and relay quantities.
Enclosure Size
LightLEEDer 4
LightLEEDer 8-16
LightLEEDer 24-32
LightLEEDer 40-48
LightLEEDer 56-64

1.1 Transformer

• Multi-tap primary that will accept 120/277 VAC or 120/347 VAC.
• 24 VAC w/center tap secondary.
• 40VA of power
• equipped with an internal self-resetting fuses.

1.2 Controller Board

The controller provides the intelligence to control relays, monitor
inputs, and to communicate in various ways. The integrated
components include:
• Power supply used to convert the transformers 24 VAC into DC
voltage used by the entire panel.
• Real-Time clock provides all time controlled functions including
time of day, day of week, date, and day-light-saving time. It will
keep the time for at least 45 days without power to the CPU.
• non-volatile memory for storing programming information.
Retains data for up to 200 years without any power to the CPU.
• Data line communications through RJ45 connectors for communi-
cating with other panels and lightsync data line devices.
• UsB serial communications for programming and interfacing with
a personal computer.
• TCP/IP communications (optional) for programming and interfac-
ing with a personal computer over a lAn or the Internet.
• Relay override switches for "All On" or "All Off" operation of relays,
which is useful when no programming is present.
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
# of Relays Width
up to 4 14 Inches
up to 16 20 Inches
up to 32 20 Inches
up to 48 20 Inches
up to 64 20 Inches
Table 1.1 – ILC LightLEEDer Configurations
Height
11 Inches
20 Inches
29 Inches
38 Inches
48 Inches
24VAC
secondary
Power Distribution Board
USB Port RJ45 Data Out
RJ45 Data In
Power ON LED Relay Override
Switches
LightLEEDer Controller Board
Depth
6 Inches
6 Inches
6 Inches
6 Inches
6 Inches
120/277 VAC
or
120/347VAC
primary
Transformer
TCP/IP (optional)
RJ45 Local
Main Power Terminal
Switch block for
24VAC in
