Appendix F
Modbus® Module (panel level)
Modbus protocol is an open protocol developed by gould-Modicon to integrate industrial PlC's, sensing devices, and
other control devices. lightleeDer Modbus modules can interface either AsCII or RTU type of communications with
Baud rates from 4800 to 38,400 and parity of none, even, or Odd. With the panel module, commands can be sent to
the panel to force relays On and OFF, force relays On and OFF with a timer option (blink, double blink, hID delay, Alarm
On, Alarm OFF, Pulse On, and Pulse OFF), monitor relay status, monitor input status, and enable/disable inputs.

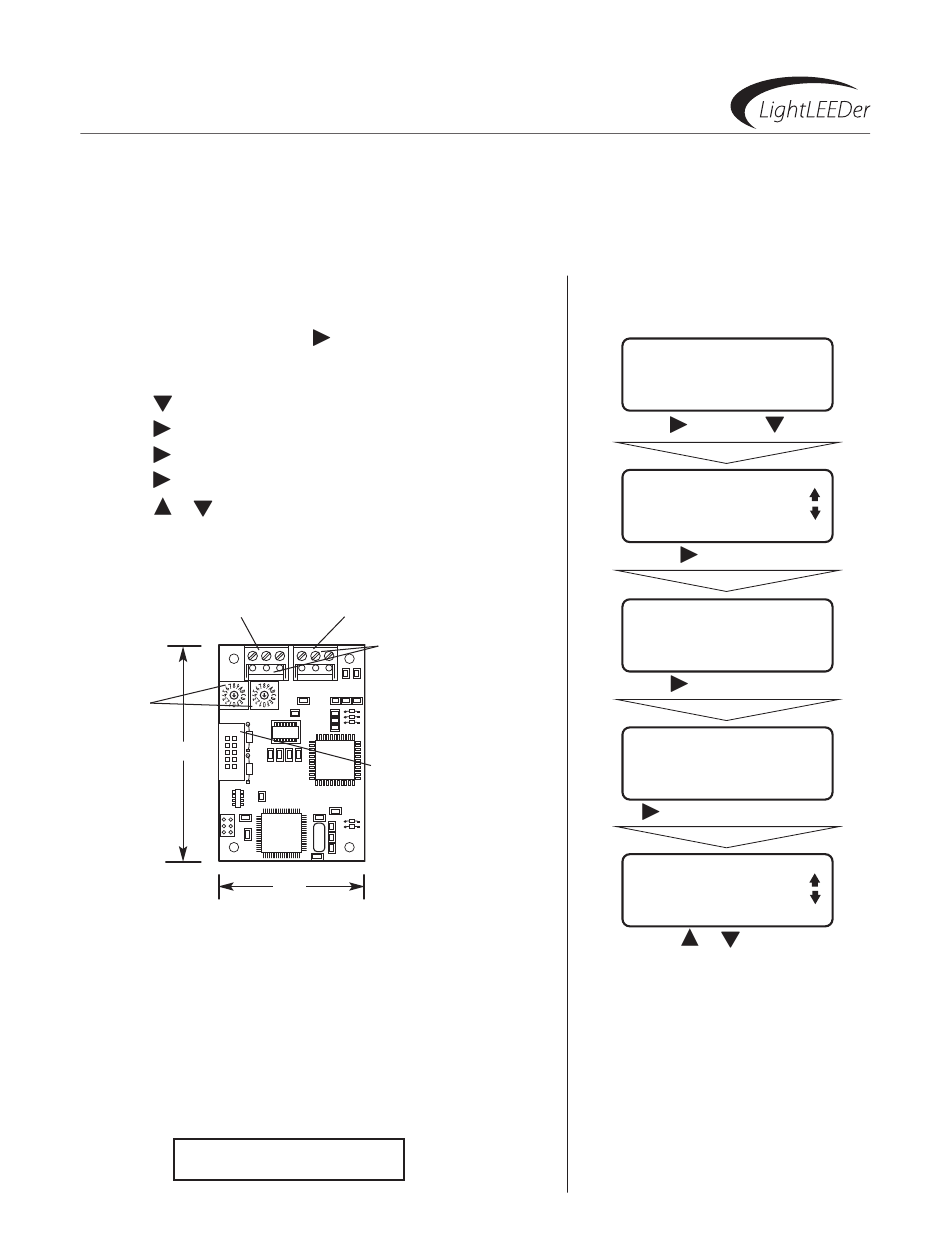

Setup:
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press 2 times to scroll down
3. Press OTheR DeVICes
4. Press ADD-On MODUles
5. Press ADD-On MODUle 1, 2, 3, or 4
6. Press or and select the MODBUs option
RS 232 termination
Device addressing
switches
ADDRESS
3.0"
77013492A
97013492
LightLEEDer Modbus Control Module
(Panel level)
Protocol: ASCII or RTU
Baud Rate: 4800, 9600, 19,220, 38,400
Parity & Required Stop Bits:
Even / 1 Stop Bit
Odd / 1 Stop Bit
None / 2 Stop Bits
Supported Commands:
01 Read Coils
02 Read Input Status
05 Force Single Coil
15 Force Multiple Coils
For a LightLEEDer Modbus point map go to:
http://ilc-usa.com/product_detail.php?pid=32
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
RS 485 termination
Modbus cable
termination
Ribbon connector to panel
2.0"
Additional Functions:
Force a Coil (05) with a Timer Option
Switch Input Disable/ Enable (05)
Modbus Module Setup
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT NODE
Press eDIT, then
TIMERS
CLOCK
PRESETS
OTHER DEVICES
Press OTheR DeVICes
ADD-ON MODULES
DIMMER OUTPUTS
MOTOR OUTPUTS
Press ADD-On MODUles
ADD-ON MODULE 1
ADD-ON MODULE 2
ADD-ON MODULE 3
ADD-ON MODULE 4
Press ADD-On MODUle 1, 2, 3, or 4
ADD-ON MODULE 1
TYPE:MODBUS
EDIT
Press or and select
the MODBUs option
PM.
01.
twice
