Programming

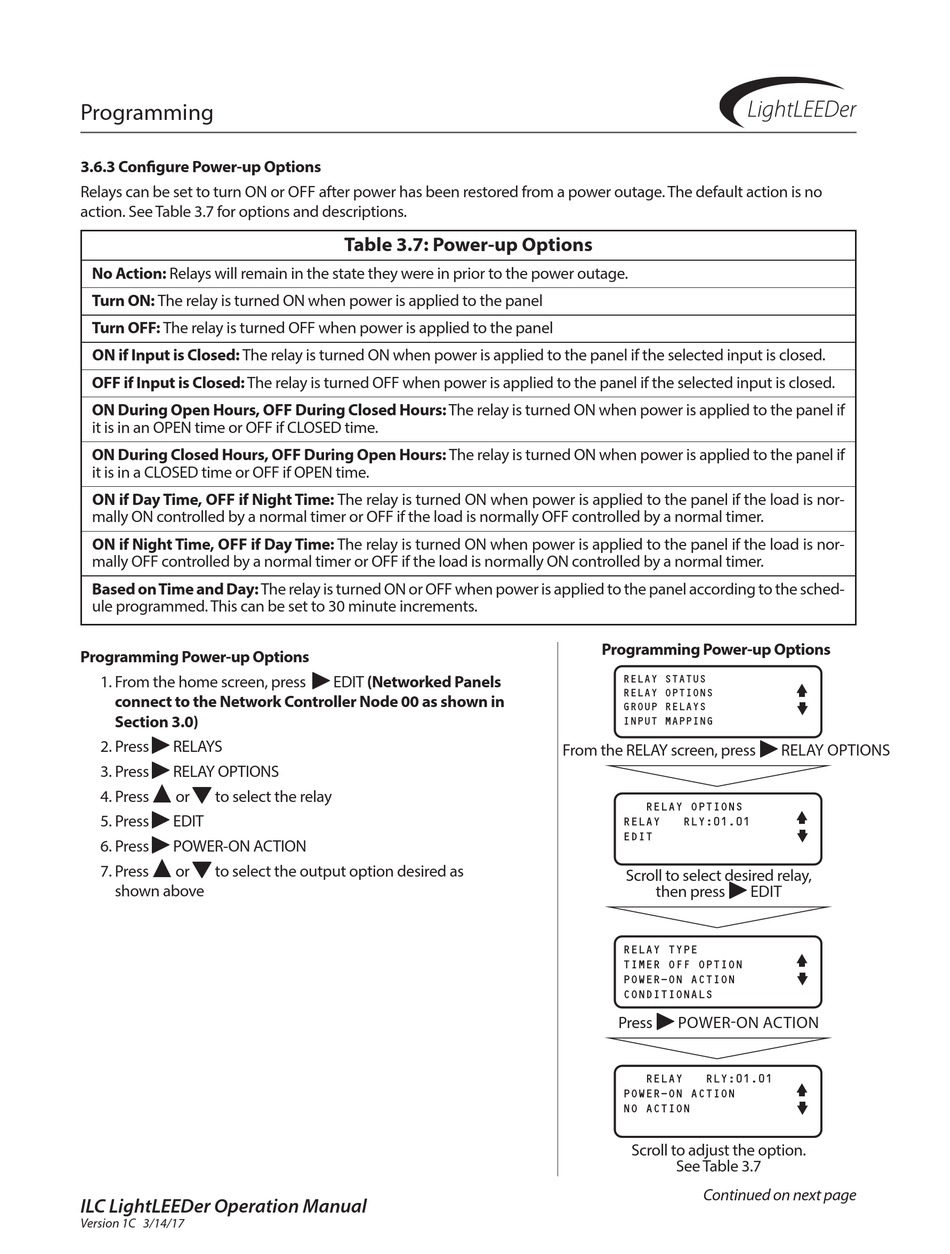

3.6.3 Configure Power-up Options

Relays can be set to turn On or OFF after power has been restored from a power outage. The default action is no
action. see Table 3.7 for options and descriptions.
No Action: Relays will remain in the state they were in prior to the power outage.
Turn ON: The relay is turned On when power is applied to the panel
Turn OFF: The relay is turned OFF when power is applied to the panel
ON if Input is Closed: The relay is turned On when power is applied to the panel if the selected input is closed.
OFF if Input is Closed: The relay is turned OFF when power is applied to the panel if the selected input is closed.
ON During Open Hours, OFF During Closed Hours: The relay is turned On when power is applied to the panel if
it is in an OPen time or OFF if ClOseD time.
ON During Closed Hours, OFF During Open Hours: The relay is turned On when power is applied to the panel if
it is in a ClOseD time or OFF if OPen time.
ON if Day Time, OFF if Night Time: The relay is turned On when power is applied to the panel if the load is nor-
mally On controlled by a normal timer or OFF if the load is normally OFF controlled by a normal timer.
ON if Night Time, OFF if Day Time: The relay is turned On when power is applied to the panel if the load is nor-
mally OFF controlled by a normal timer or OFF if the load is normally On controlled by a normal timer.
Based on Time and Day: The relay is turned On or OFF when power is applied to the panel according to the sched-
ule programmed. This can be set to 30 minute increments.
Programming Power-up Options
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press RelAYs
3. Press RelAY OPTIOns
4. Press or to select the relay
5. Press eDIT
6. Press POWeR-On ACTIOn
7. Press or to select the output option desired as
shown above
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
Table 3.7: Power-up Options
eDIT (Networked Panels
Programming Power-up Options
RELAY STATUS
RELAY OPTIONS
GROUP RELAYS
INPUT MAPPING
From the RelAY screen, press
RELAY OPTIONS
RELAY RLY:01.01
EDIT
scroll to select desired relay,
then press
RELAY TYPE
TIMER OFF OPTION
POWER-ON ACTION
CONDITIONALS
Press POWeROn ACTIOn
RELAY RLY:01.01
POWER-ON ACTION
NO ACTION
scroll to adjust the option.
see Table 3.7
Continued on next page
RelAY OPTIOns
eDIT
