Programming

3.7 Time Based Operations

lightleeDer panels are capable of 128 time based actions which in-
clude Time-of-Day, Astronomical scheduling, and Open-Close-Time
control. Timers can turn On or OFF any relay, group of relays, or trigger
any Preset. (Presets are a programmed On/OFF pattern of relays. see
section 3.7 for more information).

3.7.1 Timer Types and Functions

Table 3.12: Timer Types and Functions
Time-of-Day(Normal): schedule events based on a time of day
or day of week which can be enabled or disabled for any day of
the calendar year.
Astronomical Time Scheduling: sunrise and sunset times used
for activation times. Activation times can be set from 1 to 999
minutes before or after these times.
Open-Close-Time Control: Timer control based on the Open and
Closed times of the facility. Times can be programmed for each
day of the week or individual days of the year. Activation times
can be set from 1 to 999 minutes before or after these times.
Timer Functions: Can be programmed to turn relays, groups,
or presets On or OFF. Two timers will be needed to be pro-
grammed for On and OFF control, 1 for On and 1 for OFF.
Blink Alerts and Timer OFF Output Options: Are options that
can be programmed into the system that react to an OFF timer
to control relays off including; Blink Alert, Double Blink, hID
Delay, Alarm OFF, Alarm On, Alarm OFF Pulse, Alarm On Pulse,
sentry, ACs OFF, and ACs Blink. see section 3.7.6 for more in-
formation on these options.

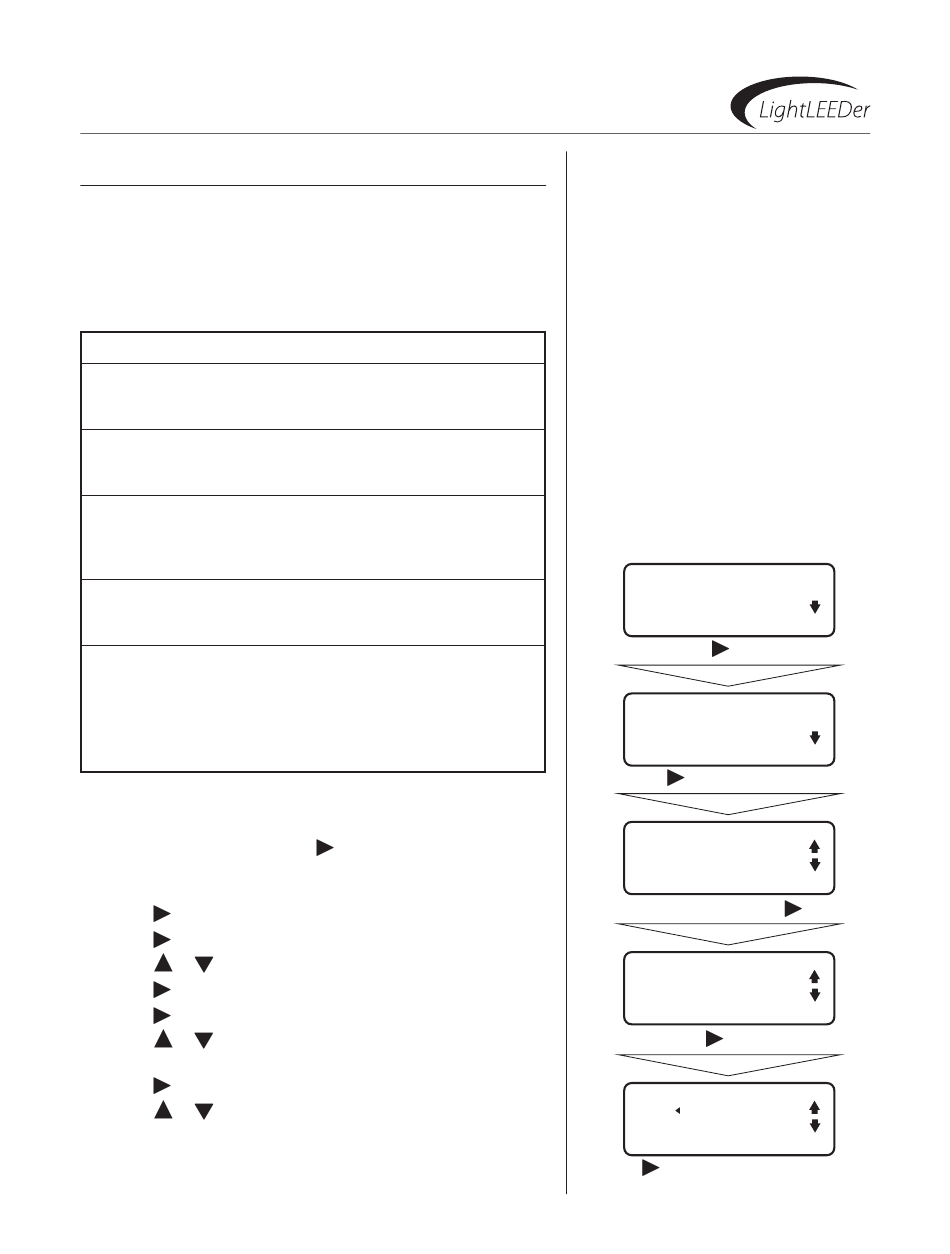

3.7.2 Configure Timers

Time-of-Day (Normal Timers)
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press TIMeRs
3. Press COnFIgURe TIMeRs
4. Press or to select 1 of the 128 timers
5. Press TIMe
6. Press nORMAl
7. Press or to change the hour. Be sure that the hour is set
to AM/PM as desired
8. Press MInUTe
9. Press or to change the minute
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
Time-of-Day (Normal Timers)
RELAYS
INPUTS
TIMERS
CLOCK
Press TIMeRs
CONFIGURE TIMERS
TIMER/RELAY CONTROL
OFF HOURS SWEEPS
OPEN/CLOSE TIMES
Press COnFIgURe TIMeRs
TIMER TIMER.001
TIME 12:00AM
DAYS SMTWTFS
CONDITIONALS
select a timer, then press
CLEAR TIMER
NORMAL
ASTRO
OPEN/CLOSE
Press nORMAl
TIMER.001
HOUR 12:00PM
MINUTE
Press hOUR or MInUTe then scroll
to the desired time
TIMe
