Intelligent Lighting Controls, Inc. LightLEEDer Operation Manual page 75

Appendix B
Motor Controller Module
The lightsync Motor Control Module is designed for DC motor device control. This module can control window
shades, louvers, doors, and other DC motor controlled devices. each output can be programmed to respond up to 16
inputs which include lightsync switches, lightsync Photocell, hardwired switches, and timers. These inputs can be
programmed to drive the motor in either direction for a selectable time from .1 to 300 seconds.
Limit Switch Input:
Limit Switch 1
Input Common
Limit Switch 2
Limit Switch Bypass:
Limit Switch 1
Limit Switch 2
Motor Power Supply
Input DC Voltage
Motor Control Output
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
RJ-45 Data connectors Node address settings (Each device
to LightSync network must be set to a unique node address)
IN OUT
MTR1-LS1 LS1
BYPASS
MTR1-LSC
LS2
BYPASS
MTR1-LS2
MTR2-LS1
LS1
BYPASS
MTR2-LSC
LS2
MTR2-LS2 BYPASS
MOTOR 1
IN-1
IN-2
OUT-A
OUT-B
MOTOR 2
IN-1
IN-2
OUT-A
OUT-B

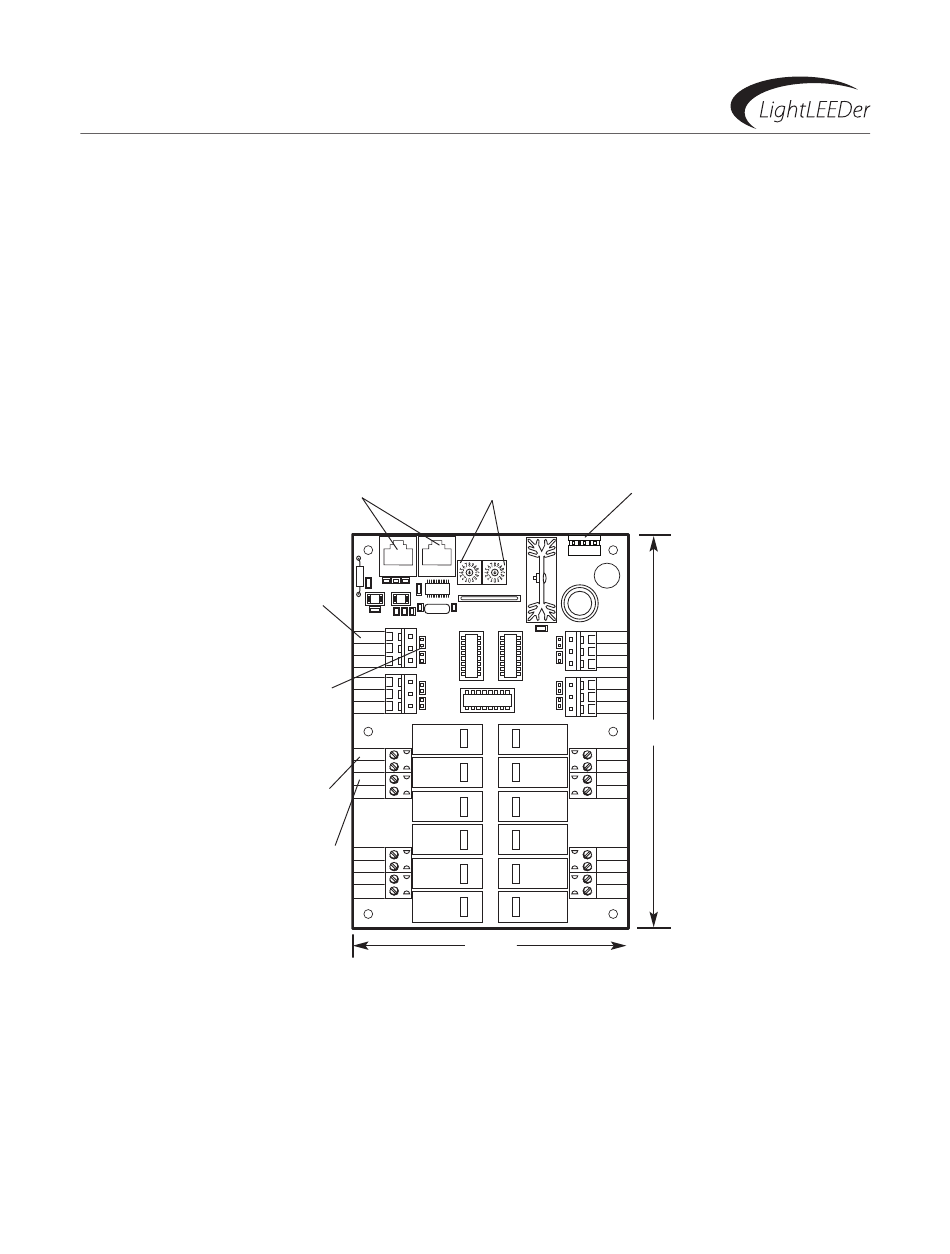

LightSync Motor Controller Module
24VAC w/CT Power Input for Motor
Controller Electronics
24VAC CT
LS1 MTR3-LS1
BYPASS
MTR3-LSC
LS2
BYPASS
MTR3-LS2
MTR4-LS1
LS1
BYPASS
MTR4-LSC
LS2
BYPASS MTR4-LS2
6.50"
MOTOR 3
IN-1
IN-2
OUT-A
OUT-B
MOTOR 4
IN-1
IN-2
OUT-A
OUT-B
4.50"
