Intelligent Lighting Controls, Inc. LightLEEDer Operation Manual page 92

Appendix M
The RBOM module replaces the standard R40 output module used in a LightLEEDer lighting control panel.
Typically, these are installed at the factory, but can also be field installed.
If the entire panel is operating emergency powered loads, normal power must be used to power the transformer
and LightLEEDer CPU. If the panel controls a combination of normal and emergency loads, the standard layout
would have the left side or bottom half of the panel with the emergency load relays. Separation between EM and
normal power relays is provided using the steel High Voltage Dividers (HVD) placed between relay sections.
Emergency sections are marked with provided labels to designate the EM sections. See Figure 2.
Fish Paper
covering wireway
and wiring terminals
High Voltage Divider
between relays
Fish paper voltage
divider with label
"EMERGENCY CIRCUITS"

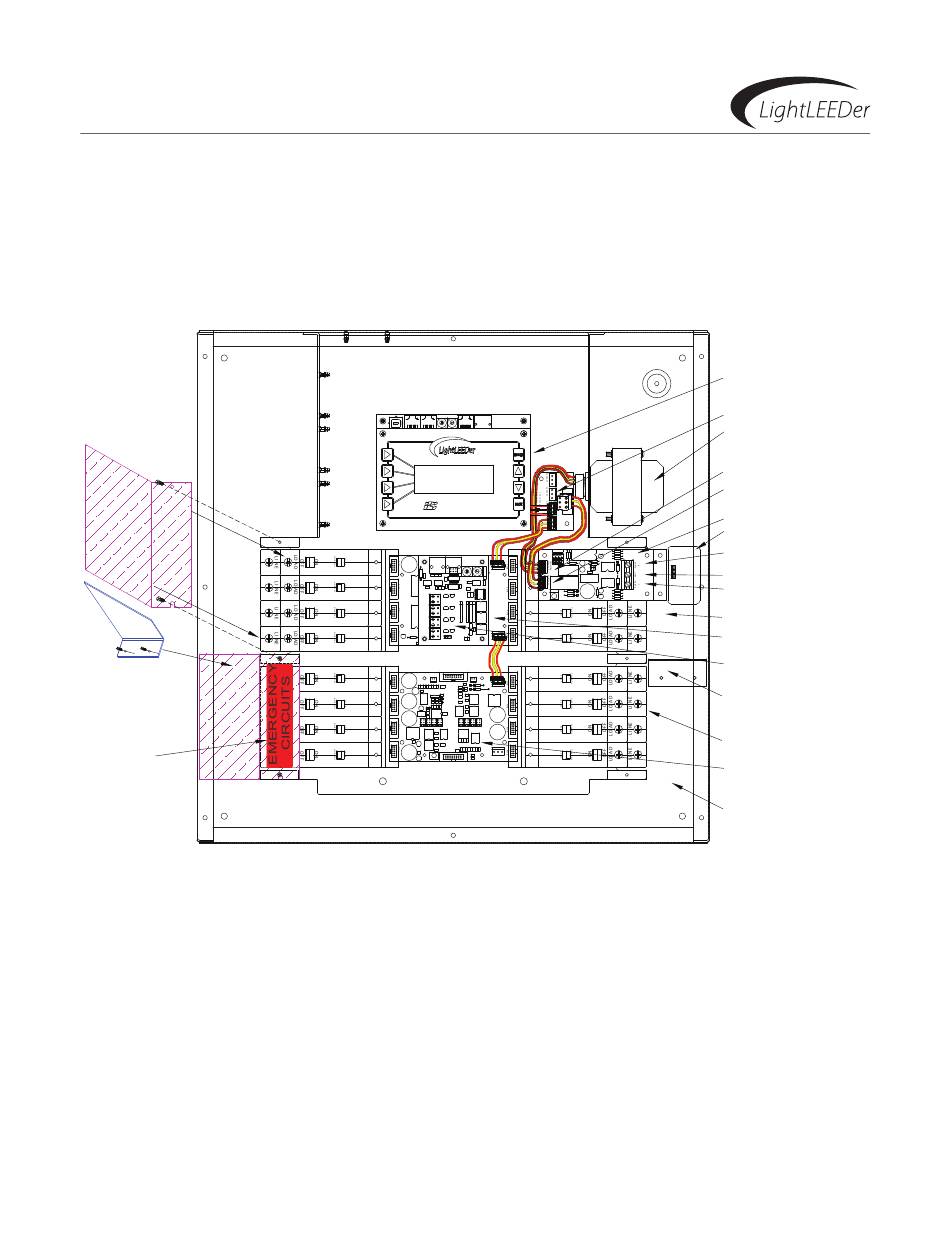

Figure 2 - Emergency UL 924 Lighting controller with RBOM
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
IN OUT ADDRESS LS
TCP-IP
USB IN OUT OUT
77013490 R1
0 0
Intelligent Lighting Controls, Inc.
NO NC C
IN OUT 77013489B
24VAC CT
MSD LSD
- 0 0
+
- +
+
+
- +
+
+ +
- -
1 TEST
2
3
+
+
4
POWER
0 1
77013488A
24VAC CT
97013488
-
24VAC CT
J4 J5
+
- + A
A
- + +
-
-
+ -
A
LED3
-
- +
OFF OFF
+
NC NC
+ ON ON -
R1 R2 R3 R4 R5 R6 R7 R8
+
+
-
VIO 77013540A
97013540
24VAC CT
+
POWER TEST
ILC LightLEEDer controller
CPU and Keypad
Power Distribution card
Panel transformer - Normal power
Phase "A" 120/277VAC to
24VAC CT 3 wire
Power from Transformer to PMM
Switched output from PMM
To Power Distribution card
Phase Monitoring Module (PMM)
PMM label
Normal power Phase "B"
Normal Power
Monitor Input
B 120/277VAC connection
120VAC - 277VAC
Phase A
B
C
Neutral Neutral connection
DISABLE
- +
Phase C
Note: Phase A
Normal power Phase "C"
connects to
C control
120/277VAC connection
A transformer.
POWER 77013547A
Normal power section
Standard Relay Output Module
(ROM)
Optional 0-10V Dimmer Module,
(LS-DM)
High Voltage Divider
(HVD)
Emergency load
relays
UL-924 Emergency Bypass Relay
Ourput Module (RBOM)
Emergency power section
bottom 8 relays
