Programming

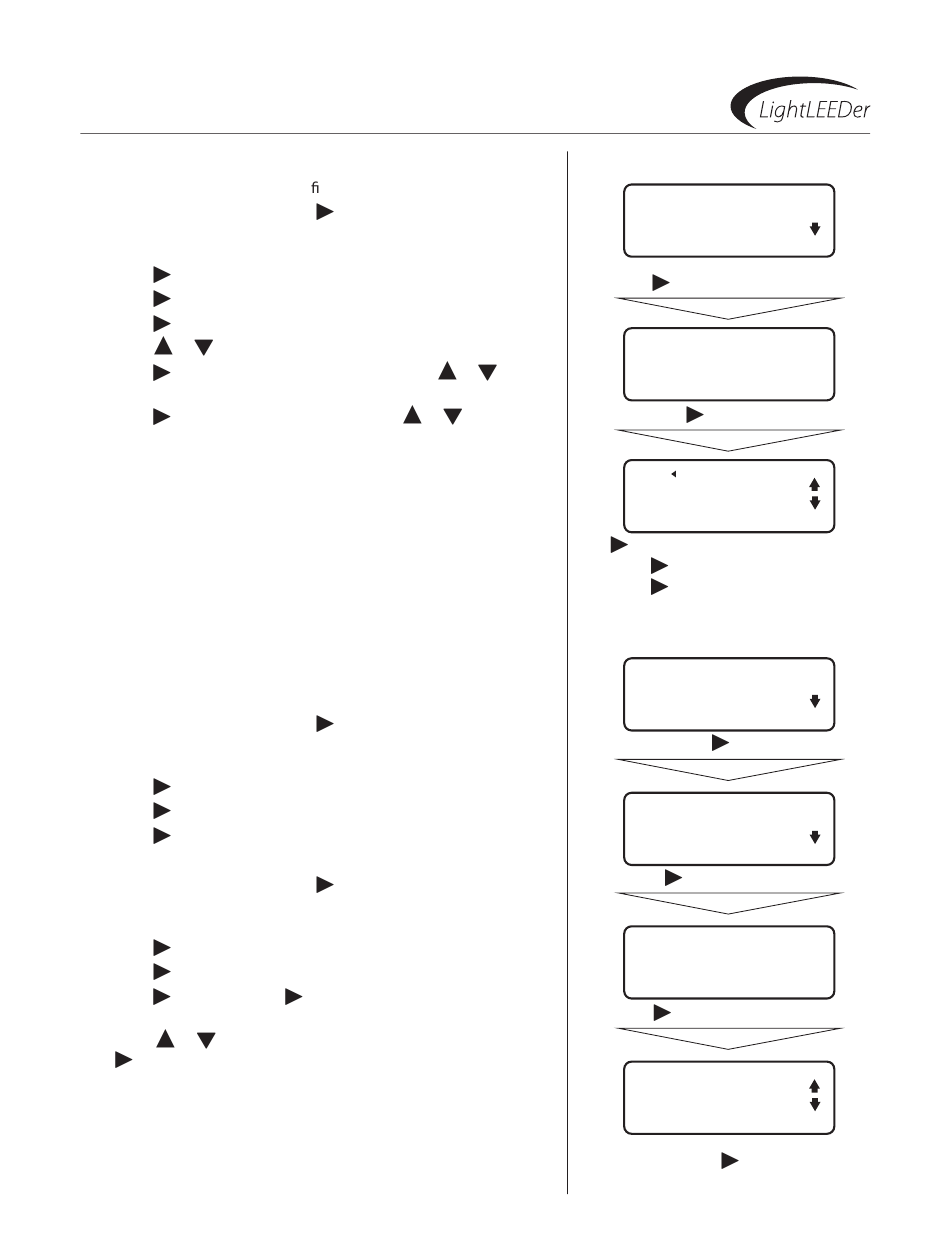

Timer to Preset Control
see section 3.8 to learn how to con gure relay presets
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press TIMeRs
3. Press TIMeR/RelAY COnTROl
4. Press TIMeR/PReseT
5. Press or to select the timer that will control the preset
6. Press PReseT to select the preset, then press
select the preset
7. Press ACTIOn to select the action, then
the action
8. Press " hOMe" to exit to the home screen

3.7.4 OFF Hour Sweeps

You can program the controller to execute OFF sweeps at intervals of
1, 2, or 3 hours after a normal close time to turn lights OFF that have
been turned On by switches and other means. To use this function
Close time must be setup in the Open/Close timers. see section 3.7.5
Open-Close-Time Control. Off hour sweeps can control relays or
groups.
Program the interval time
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press TIMeRs
3. Press OFF hOURs sWeePs
4. Press InTeRVAl to toggle from 1, 2, and 3
Program Relays and Groups in the OFF Hour Sweeps
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press TIMeRs
3. Press OFF hOURs sWeePs
4. Press RelAYs or Press
panels are accessed from the network Controller)
5. scroll or to the relay or group you want included. Press
InClUDe
6. Press " hOMe" to exit to the home screen
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
or
or to select
eDIT (Networked Panels
eDIT (Networked Panels
gROUPs (groups with networked
Timer to Preset Control
CONFIGURE TIMERS
TIMER/RELAY CONTROL
OFF HOURS SWEEPS
OPEN/CLOSE TIMES
From the TIMeR screen,
press TIMeR/RelAY COnTROl
TIMER/RELAY
TIMER/GROUP
to TIMER/PRESET
Press
TIMER
PRESET
ACTION
Press TIMeR and scroll to the desired timer
Then press PReseT and scroll to the desired preset.
Then press ACTIOn and scroll to the desired action.
Program the interval time
RELAYS
INPUTS
TIMERS
CLOCK
Press
CONFIGURE TIMERS
TIMER/RELAY CONTROL
OFF HOURS SWEEPS
OPEN/CLOSE TIMES
Press
OFF HOURS SWEEPS
INTERVAL
RELAYS
GROUPS
Press InTeRVAl to adjust time
OFF HOURS SWEEPS
RELAY RLY:01.01
INCLUDE:YES
scroll to the desired relay or group
and Press
TIMeR/PReseT
TIMER.001
PRESET.001
NONE
TIMeRs
OFF hOURs sWeePs
1 HOUR(S)
InClUDe
