Programming

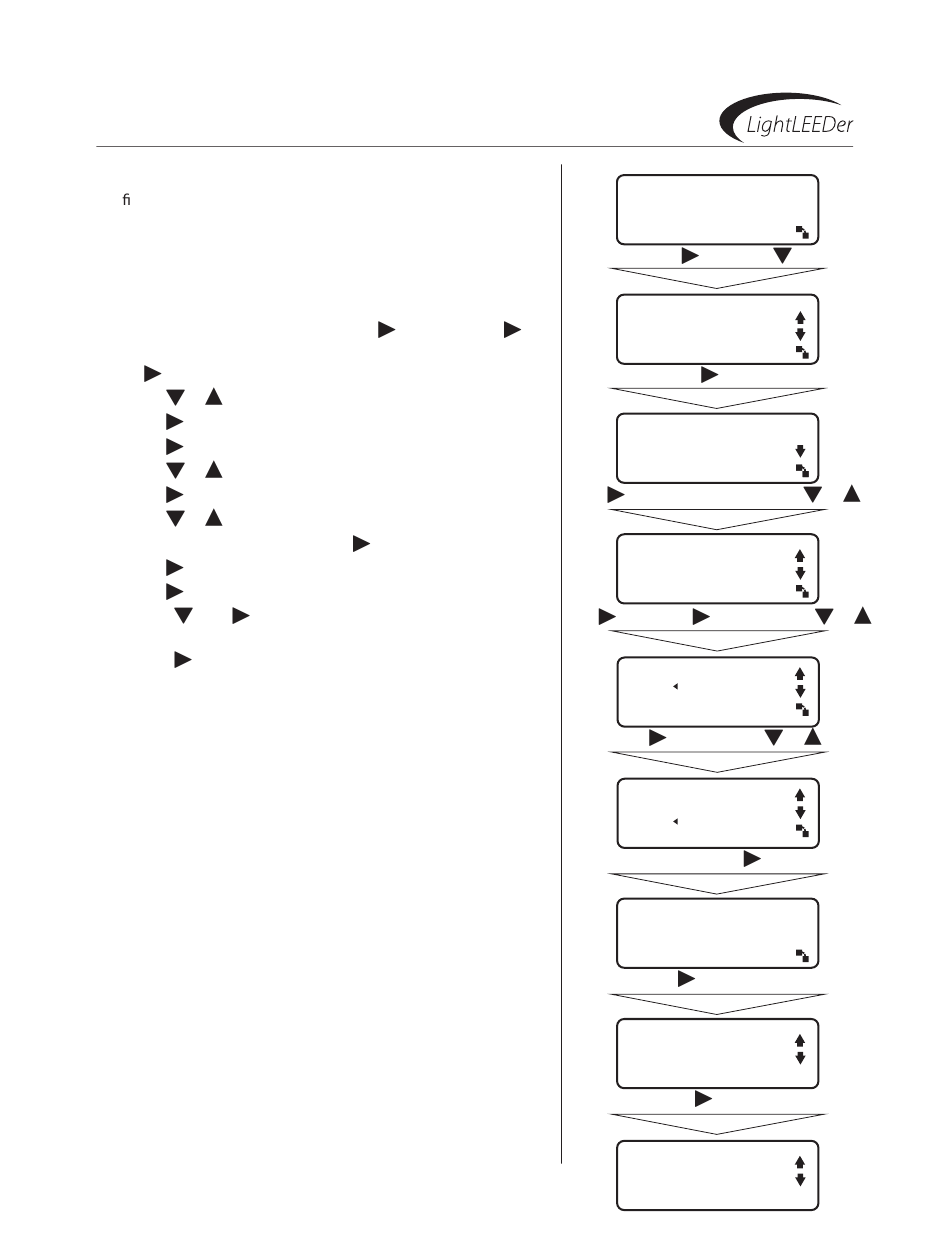

3.10.4 Configure Timer example

Con gure Timer 001 to turn relays 6, 7, 8 in node 01 On at 07:30 AM
and Timer 002 to turn them OFF at 06:30PM Monday through Friday.
Timers 001 and 002 use normal AM/PM time format.
1) Configure two timers, one for the "on" timer and one for the "off".
1. Access the network Controller node 00. see previous examples
for details.
2. From the node 00 home screen Press
TIMeRs
2) Press CONFIGURE TIMERS
1. Press or to select Timer 001
2. Press TIMe
3. Press nORMAl
4. Press or to change the hour to 07AM
5. Press MInUTe
6. Press or to change the minutes until it reads 7:30AM
7. Press the BACK button. Then Press
8. Press DAY OF WeeK
9. Press DIsABle to remove sunday from Timer 001 control
10. Press ; then DIsABle to remove saturday from Timer 001
control
11. Press the BACK button
12. Repeat steps 1-10 substituting 06:30PM for Timer 002
13. Press the hOMe button to return to the node 01 home screen.
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT; then Press
DAYs
ILC LIGHTLEEDER NC
TUE 01/21/11.
09:46:54
EDIT
Press eDIT, then
NETWORK
INPUTS
RELAYS
TIMERS
Press TIMeRs
CONFIGURE TIMERS
TIMER/RELAY CONTROL
OFF HOURS SWEEPS
OPEN/CLOSE TIMES
Press COnFIgURe TIMeRs, then
TIMER TIMER.001
TIME 11:15:00
DAYS WED 01/05/11
CONDITIONALS
Press TIMe, then nORMAl, then
TIMER.001
HOUR 07:00:00
MINUTE
Press MInUTe, then
TIMER.001
HOUR 07:30:00
MINUTE
Press BACK, then
TIMER TIMER.001
DAY OF WEEK
CALENDAR-DAILY
Press DAY OF WeeK
TIMER.001
SUN IS ENABLED
ENABLE
DISABLE
Press DIsABle
TIMER.001
SUN IS DISABLED
ENABLE
DISABLE
Continued on next page
PM.
.
or
AM
or
AM
or
AM
DAYs
