Programming

3.10.2 Program a network switch to control a relay group

Program a 1 pushbutton switch (addressed as 00.0A.1) that is a
device node on the lightsync network to control relay group 003.
Relay group 003 is composed of relays 10 and 12 located in Con-
troller node 01 and relays 25 and 27 located in Controller node 04.

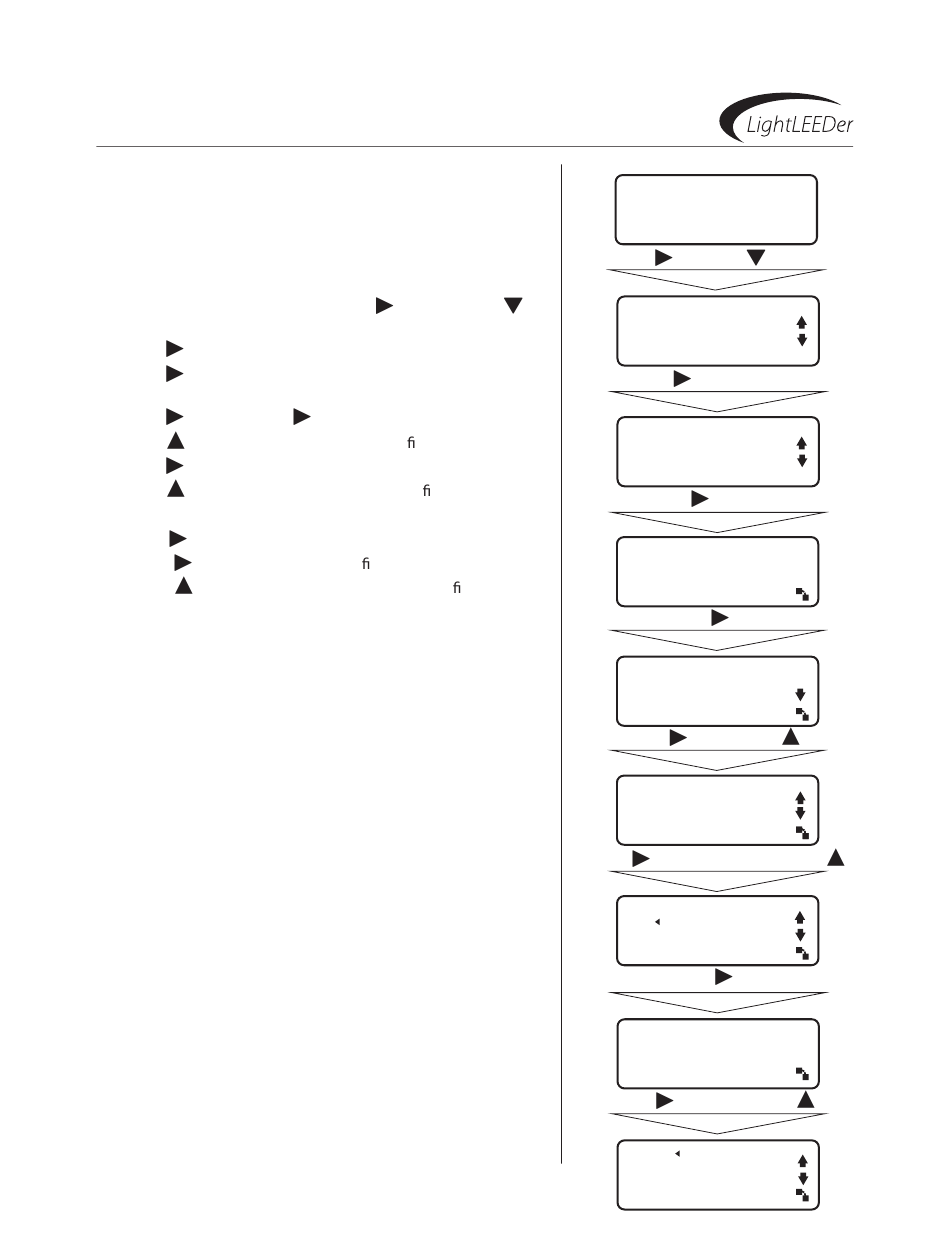

1) Configure LightSync device.
1. From the node 01 home screen press
until ReMOTe PAnel appears on the screen.
2. Press ReMOTe PAnel.
3. Press COnneCT to access the network Controller (node 00)
home screen.
4. Press eDIT. Then Press
5. Press until 0A appears in the ls DeVICe eld.
6. Press COnFIgURe DeVICe
7. Press until 1 BUTTOn appears in the TYPe eld
8. Press the BACK button on the keypad.
9. Press COnFIgURe InPUTs
10. Press TYPes twice. To begin con guring input 01.04.1.
11. Press until P.B. On/OFF appears in the TYPe A eld on the
screen
12. Press the BACK button 4 times to access then node 00 Main
Menu.
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT. Then press
InPUTs.
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT NODE
Press eDIT, then
CLOCK
PRESETS
OTHER DEVICES
REMOTE PANEL
Press ReMOTe PAnel
REMOTE PANEL
NODE 00
CONNECT
Press COnneCT
ILC LIGHTLEEDER NC
TUE 01/21/11.
09:46:54
EDIT
Press eDIT
NETWORK
INPUTS
RELAYS
TIMERS
Press InPUTs, then
LS DEVICE 0A ---
STATUS
CONFIGURE DEVICE
CONFIGURE INPUTS
Press COnFIgURe DeVICe, then
LS DEVICE 0A
TYPE 1 BUTTON
Press BACK, then press COnFIgURe InPUTs
INPUT IN:00.0A.1
TYPES A/B
TYPE TIMES
TOGGLE SOURCE
Press TYPes twice, then
TYPE A P.B. ON/OFF
TYPE B DISABLED
Continued on next page
