Programming

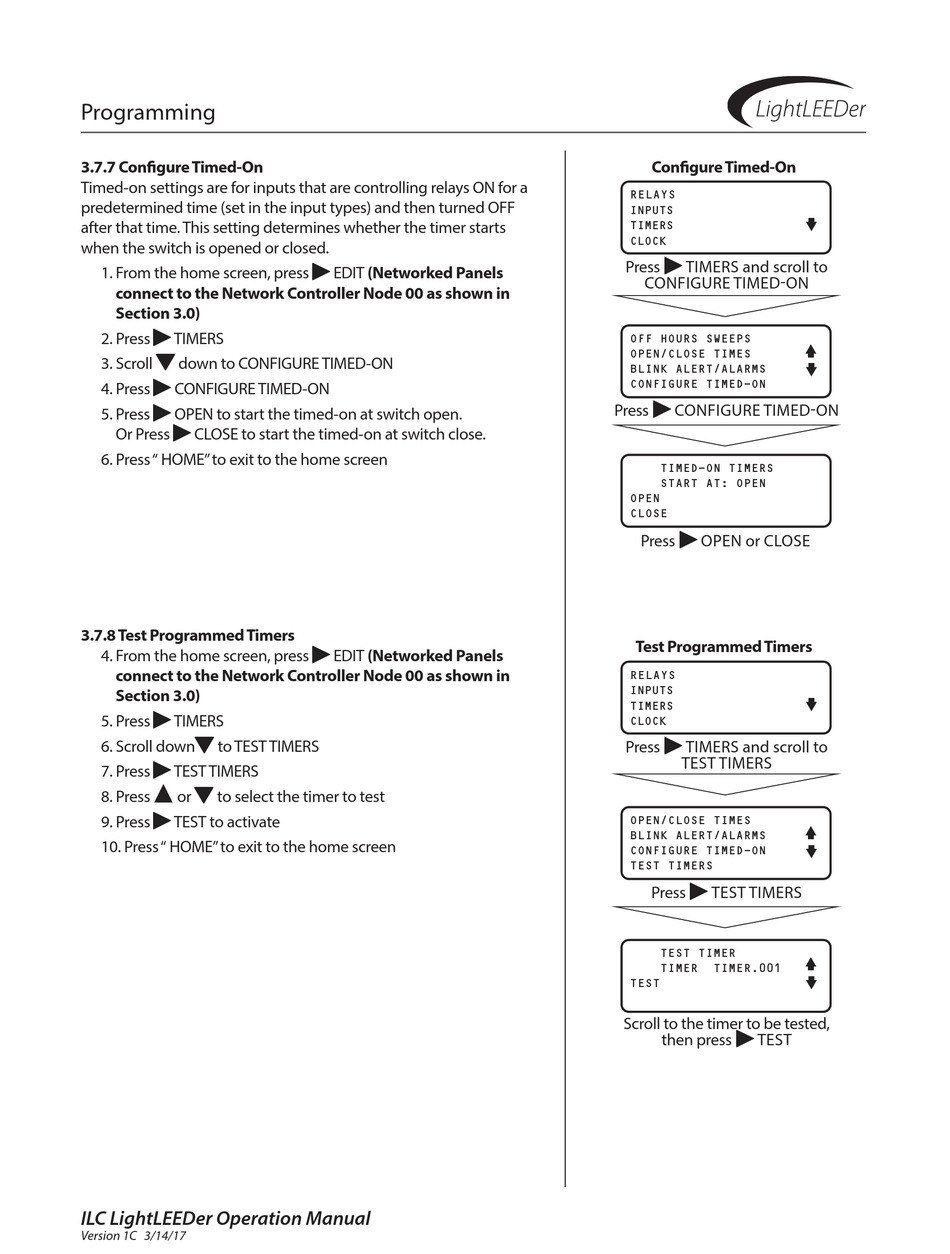

3.7.7 Configure Timed-On

Timed-on settings are for inputs that are controlling relays On for a
predetermined time (set in the input types) and then turned OFF
after that time. This setting determines whether the timer starts
when the switch is opened or closed.
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press TIMeRs
3. scroll down to COnFIgURe TIMeD-On
4. Press COnFIgURe TIMeD-On
5. Press OPen to start the timed-on at switch open.
Or Press ClOse to start the timed-on at switch close.
6. Press " hOMe" to exit to the home screen

3.7.8 Test Programmed Timers

4. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
5. Press TIMeRs
6. scroll down to TesT TIMeRs
7. Press TesT TIMeRs
8. Press or to select the timer to test
9. Press TesT to activate
10. Press " hOMe" to exit to the home screen
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
eDIT (Networked Panels
Configure Timed-On
RELAYS
INPUTS
TIMERS
CLOCK
Press TIMeRs and scroll to
COnFIgURe TIMeDOn
OFF HOURS SWEEPS
OPEN/CLOSE TIMES
BLINK ALERT/ALARMS
CONFIGURE TIMED-ON
Press COnFIgURe TIMeDOn
TIMED-ON TIMERS
START AT: OPEN
OPEN
CLOSE
Press OPen or ClOse
Test Programmed Timers
RELAYS
INPUTS
TIMERS
CLOCK
Press TIMeRs and scroll to
TesT TIMeRs
OPEN/CLOSE TIMES
BLINK ALERT/ALARMS
CONFIGURE TIMED-ON
TEST TIMERS
Press TesT TIMeRs
TEST TIMER
TIMER TIMER.001
TEST
scroll to the timer to be tested,
then press TesT
