Intelligent Lighting Controls, Inc. LightLEEDer Operation Manual page 63

Programming

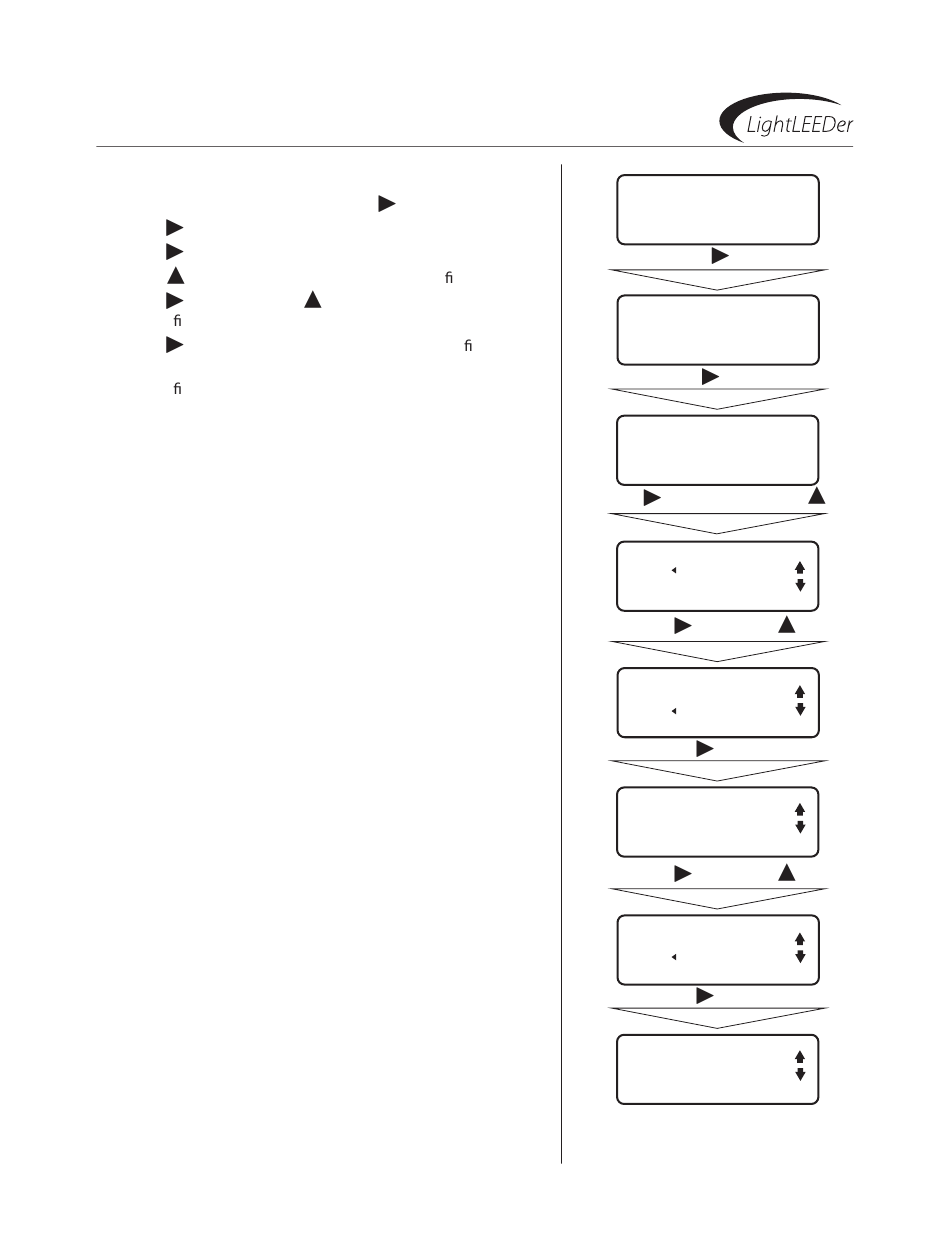

3) Program Relays 10, 12 in Node 01 into Group 03.
1. From the node 01 home screen, Press
2. Press RelAYs.
3. Press gROUP RelAYs.
4. Press until gROUP.003 appears in the gROUP eld.
5. Press RelAY. Then Press
RelAY eld.
6. Press InClUDe until Yes appears in the InClUDe eld.
7. Repeat steps 5 and 6 for relay 12 substituting 01.12 into the
RelAY eld.
8. Press the hOMe button to return to the node 01 home screen
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT.
until RlY: 01.10 appears in the
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT NODE
Press eDIT
RELAYS
INPUTS
TIMERS
CLOCK
Press RelAYs
RELAY STATUS
RELAY OPTIONS
GROUP RELAYS
INPUT MAPPING
Press gROUP RelAYs, then
RELAY GROUPS
GROUP: GROUP.003
RELAY: RLY:01.05
INCLUDE: NO
Press RelAY, then
RELAY GROUPS
GROUP: GROUP.003
RELAY: RLY:01.10
INCLUDE: NO
Press InClUDe
RELAY GROUPS
GROUP: GROUP.003
RELAY: RLY:01.10
INCLUDE: YES
Press RelAY, then
RELAY GROUPS
GROUP: GROUP.003
RELAY: RLY:01.12
INCLUDE: NO
Press InClUDe
RELAY GROUPS
GROUP: GROUP.003
RELAY: RLY:01.12
INCLUDE: YES
Press hOMe
Continued on next page
PM.
01.
