Appendix C
DTMF Module (panel level)
The lightleeDer Voice Prompted DTMF Telephone Control module provides control from any touch-tone telephone.
Voice prompts and telephone DTMF signals (telephone button activations) can control relays, groups, or presets On
or OFF and retrieve current status. Any standard telephone, digital telephone, or cell phone can be used for a switch
station.
FCC Part 68 Information
lightleeDer Voice Prompted DTMF Telephone Control modules comply with Part 68 of the FCC rules and the require-
ments adopted by the ACTA. On the back plate near the RJ 11 jack of this equipment is a label that contains, among
other information, the FCC registration number and ringer equivalence (Ren) for this equipment. If requested, pro-
vide this information to your telephone company.
Setup:
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press 2 times to scroll down
3. Press OTheR DeVICes
4. Press ADD-On MODUles
5. Press ADD-On MODUle 1, 2, 3, or 4
6. Press or to select the VOICe/DTMF option
7. Press eDIT to change the access code
8. Press or to select the access code number
and to scroll or Press
9. Press hOMe to exit
3.0"

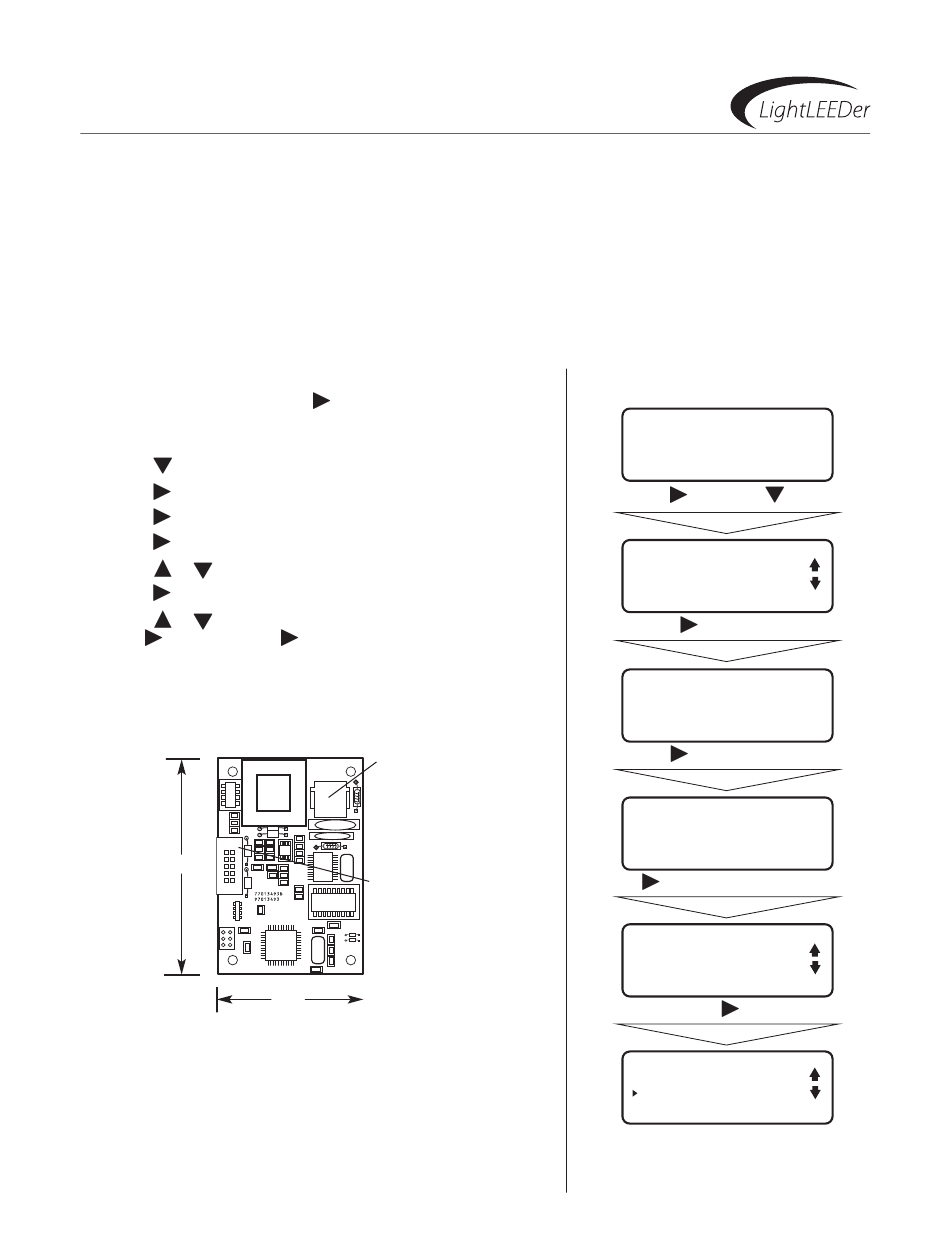

LightLEEDer DTMF Telephone Control Module
(Panel level)
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
CleAR CODe to remove setting
RJ11 telephone
connector
Ribbon connector to panel
2.0"
DTMF Module Setup
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT NODE
Press eDIT, then
TIMERS
CLOCK
PRESETS
OTHER DEVICES
Press OTheR DeVICes
ADD-ON MODULES
DIMMER OUTPUTS
MOTOR OUTPUTS
Press ADD-On MODUles
ADD-ON MODULE 1
ADD-ON MODULE 2
ADD-ON MODULE 3
ADD-ON MODULE 4
Press ADD-On MODUle 1, 2, 3, or 4
ADD-ON MODULE 1
TYPE:VOICE/DTMF
EDIT
Press eDIT
VOICE/DTMF REV 0
ACCESS CODE:0000
^
CLEAR CODE
PM.
01.
twice
