Programming

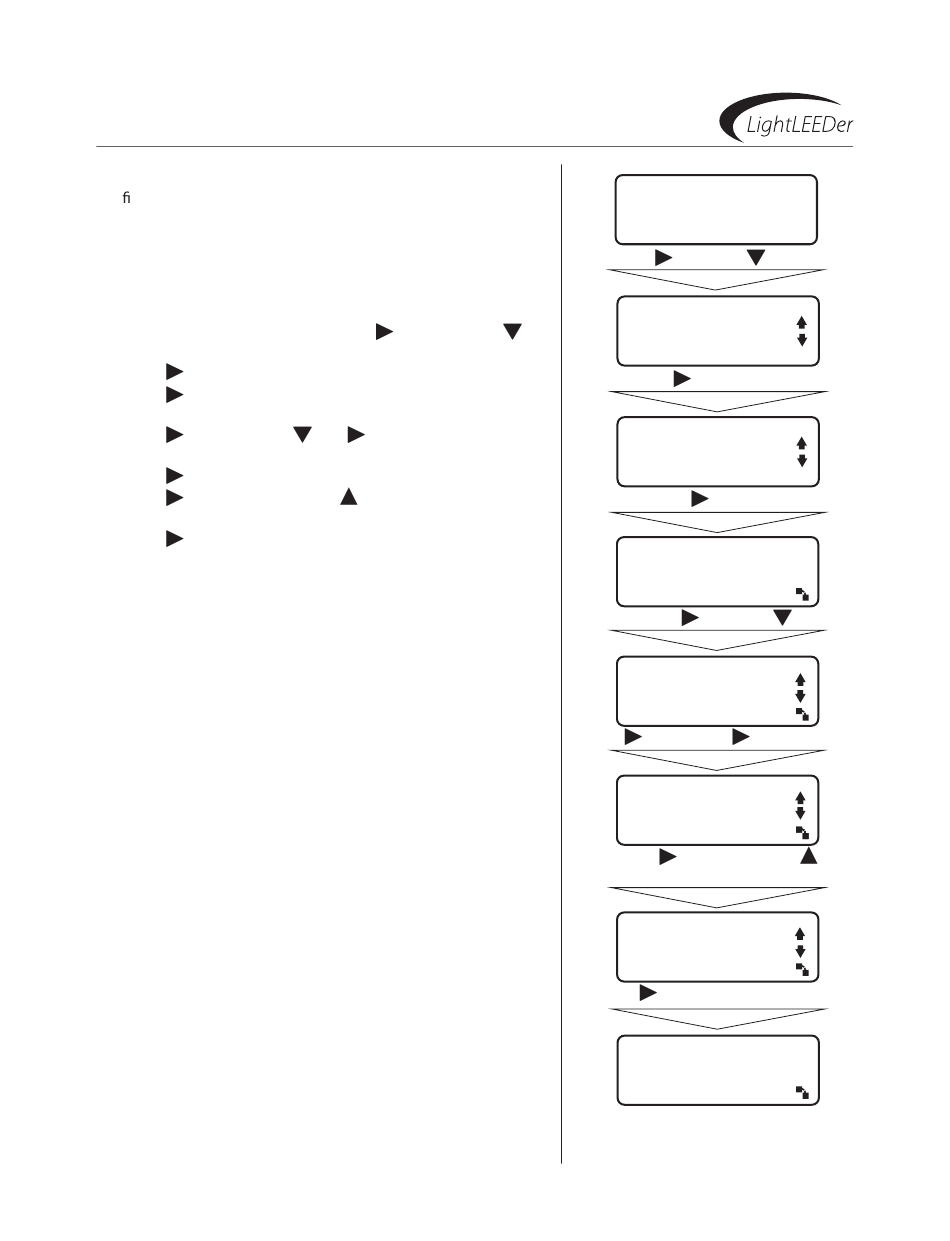

3.10.5 Configure Timers Using Astro Time example
Con gure Timer 001 to turn relays 6, 7, 8 in node 01 On at sunset
and Timer 002 to turn them OFF at sunrise every day. The timers use
Astro time that adjusts the sunrise and sunset times as they change
throughout the year in the location where the controllers are in-
stalled. The location is Phoenix, AZ.
1) Set the latitude, longitude, and time zone coordinates for the location
of the controllers.
1. From the node 01 home screen press
until ReMOTe PAnel appears on the screen.
2. Press ReMOTe PAnel.
3. Press COnneCT to access the network Controller (node 00)
home screen.
4. Press eDIT. Then Press
choice.
5. Press AsTRO ClOCK.
6. Press seT BY CITY. Then Press
latitude, longitude and time zone appears on the screen.
7. Press seT to enter these values into the controller memory.
8. Press the BACK Button until you return to node 00 Main menu.
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT. Then Press
until ClOCK appears as a menu
until AZ, PhOenIX with its
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT NODE
Press eDIT, then
CLOCK
PRESETS
OTHER DEVICES
REMOTE PANEL
Press ReMOTe PAnel
REMOTE PANEL
NODE 00
CONNECT
Press COnneCT
ILC LIGHTLEEDER NC
TUE 01/21/11.
09:46:54
EDIT
Press eDIT, then
INPUTS
RELAYS
TIMERS
CLOCK
Press ClOCK, then AsTRO ClOCK
LATITUDE
LONGITUDE
TIME ZONE
SEY BY CITY
Press seT BY CITY, then
AZ, PHOENIX
LAT:033 LON:112
TIME ZONE:MOUNTAIN
SET
Press seT, then BACK four times
ILC LIGHTLEEDER NC
TUE 01/21/11.
09:46:54
EDIT
Continued on next page
