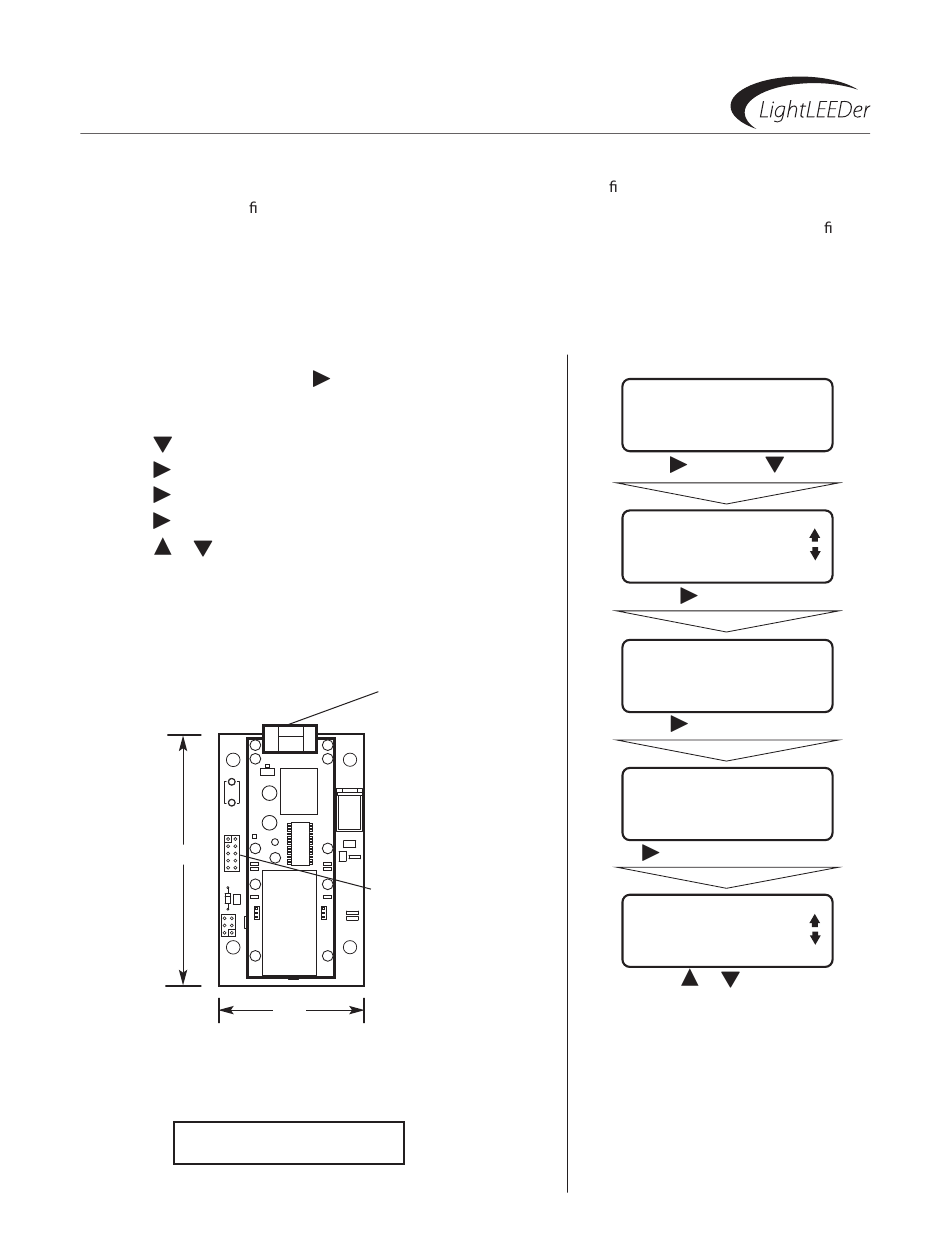

Appendix g
LonWorks® Module (panel level)
Devices in a lonWorks network communicate through a control network speci c protocol originally created by eche-
lon. The protocol was rati ed as an official standard by a number of national and international standards setting bod-
ies, including AnsI, Ieee, Cen, and en. In January 2009, the protocol underlying the lonWorks platform was rati ed as
a global standard for building controls. It is now formally known as IsO/IeC 14908-1. With the panel module, com-
mands can be sent to the panel to force relays On and OFF, force relays On and OFF with a timer option (blink, dou-
ble blink, hID delay, Alarm On, Alarm OFF, Pulse On, and Pulse OFF), monitor relay status, monitor input status, and
enable/disable inputs.
Setup:
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press 2 times to scroll down
3. Press OTheR DeVICes
4. Press ADD-On MODUles
5. Press ADD-On MODUle 1, 2, 3, or 4
6. Press or and select the PROTOCessOR option
J3
3.5"
D2
R3
-
C7
+
U1
+
77013517A
97013517
LightLEEDer LonWorks Control Module
(Panel level)
For a LightLEEDer LonWorks point map go to:
http://ilc-usa.com/product_detail.php?pid=32
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
LonWorks cable
termination
C11
+ -
PWR
Ribbon connector to panel
C6
+
Y1 RX
C1
TX
R1
C2
-
+ +
C5
C3
-
2.0"
LonWorks Module Setup
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT NODE
Press eDIT, then
TIMERS
CLOCK
PRESETS
OTHER DEVICES
Press OTheR DeVICes
ADD-ON MODULES
DIMMER OUTPUTS
MOTOR OUTPUTS
Press ADD-On MODUles
ADD-ON MODULE 1
ADD-ON MODULE 2
ADD-ON MODULE 3
ADD-ON MODULE 4
Press ADD-On MODUle 1, 2, 3, or 4
ADD-ON MODULE 1
TYPE:PROTOCESSOR
EDIT
Press or and select
the PROTOCessOR option
PM.
01.
twice
