Programming
3.5.6 Configure Input Conditionals, continued
For relay conditionals select 1 of the 4 types
8. Press nODe then, Press
9. Press DeVICe then, Press
10. Press InPUT then, Press
11. Press BACK
12. Press lOgIC to toggle from AnD to OR
For relay conditionals select 1 of the 2 types
8. Press nODe then, Press
9. Press RelAY then, Press
10. Press BACK
11. Press lOgIC to toggle from AnD to OR

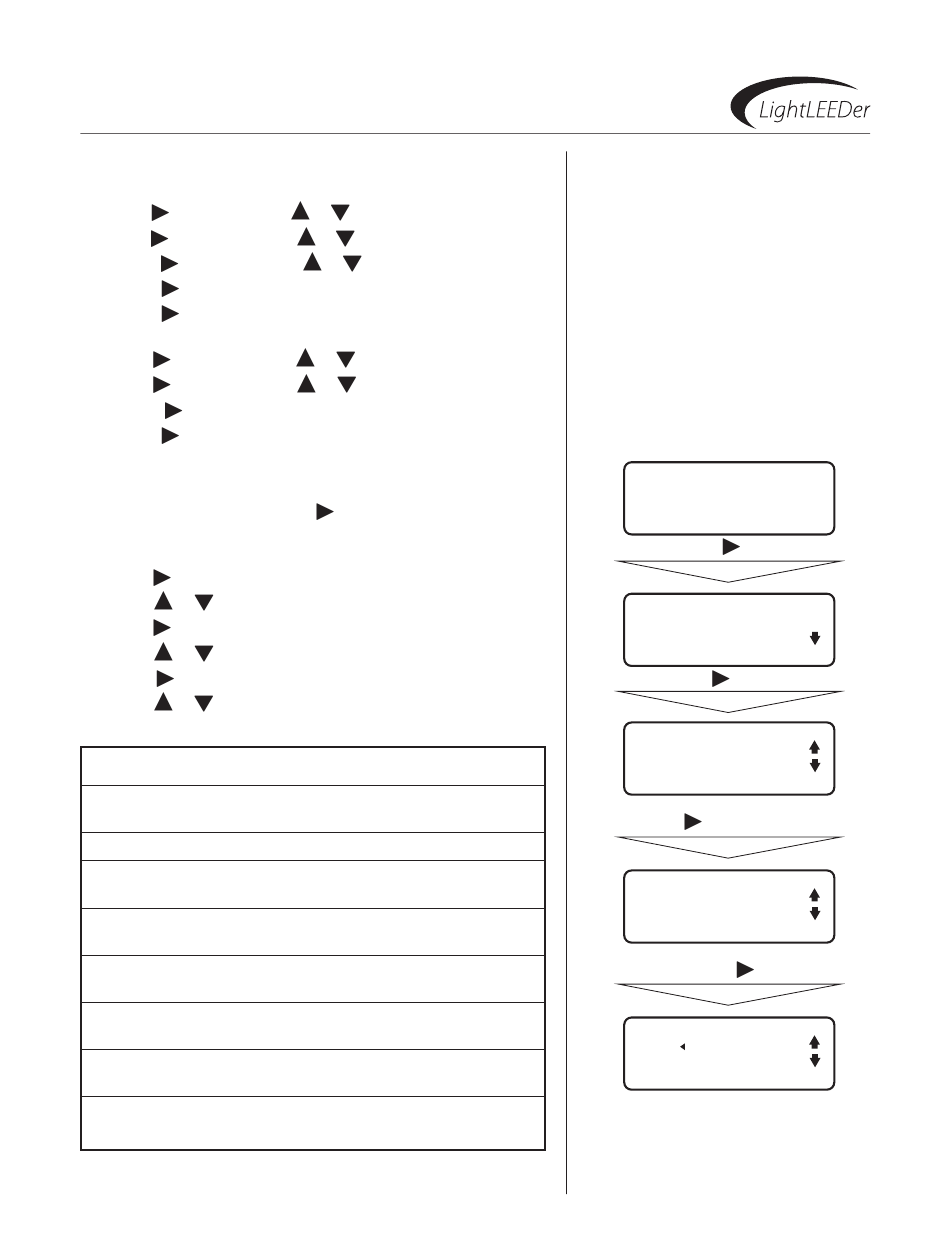

3.5.7 Configure Pilot Status

1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press InPUTs
3. Press or to to select the device node number
4. Press COnFIgURe InPUTs
5. Press or to select the device input number
6. Press PIlOT
7. Press or to select the pilot control. Refer to table 3.4
Table 3.4: Pilot Status Options
Always ON: The status pilot light will always be illuminated
(default setting)
Always OFF: The status pilot light will never be illuminated
Relay ON: The status pilot light will be illuminated when the
chosen relay is On
Relay OFF: The status pilot light will be illuminated when the
chosen relay is OFF
Group True: The status pilot light will be illuminated when
the chosen group is true
Group False: The status pilot light will be illuminated when
the chosen group is false
Preset True: The status pilot light will be illuminated when
the chosen Preset is true
Preset False: The status pilot light will be illuminated when
the chosen Preset is false
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
or to select the node number
or to select the device number
or to select the input number
or to select the node number
or to select the relay number
eDIT (Networked Panels
Configure Pilot Status
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT NODE
Press eDIT
RELAYS
INPUTS
TIMERS
CLOCK
Press InPUTs
LS DEVICE: 01 1PB
STATUS
CONFIGURE DEVICE
CONFIGURE INPUTS
scroll to select the desired device,
then press COnFIgURe InPUTs
INPUT IN:01.01.1
TYPES
CONDITIONALS
PILOT
scroll to select the desired input,
then press PIlOT
IN:01.01.1 PILOT
SOURCE ALWAYS ON
scroll to select the desired
pilot control
