Programming
Configure Active Days-of-Week
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press TIMeRs
3. Press COnFIgURe TIMeRs
4. Press or to select the timer to program
5. Press DAYs
6. Press DAY OF WeeK
7. Press or to select the day of week, then Press
for the days desired for no action. Press
back to enabled.
Configure Active Calendar Daily
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press TIMeRs
3. Press COnFIgURe TIMeRs
4. Press or to select the timer to program
5. Press DAYs
6. Press CAlenDAR-DAIlY
7. Press or to select the month
8. Press DATe, then press
9. Press en/ DIs to enABle or DIsABle
Configure Timer Conditionals
1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press TIMeRs
3. Press COnFIgURe TIMeRs
4. Press or to select the timer to program
5. Press COnDITIOnAls see section 3.5.6 for input
conditionals
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels
DIsABle
enABle to revert
eDIT (Networked Panels
or to select the date
eDIT (Networked Panels

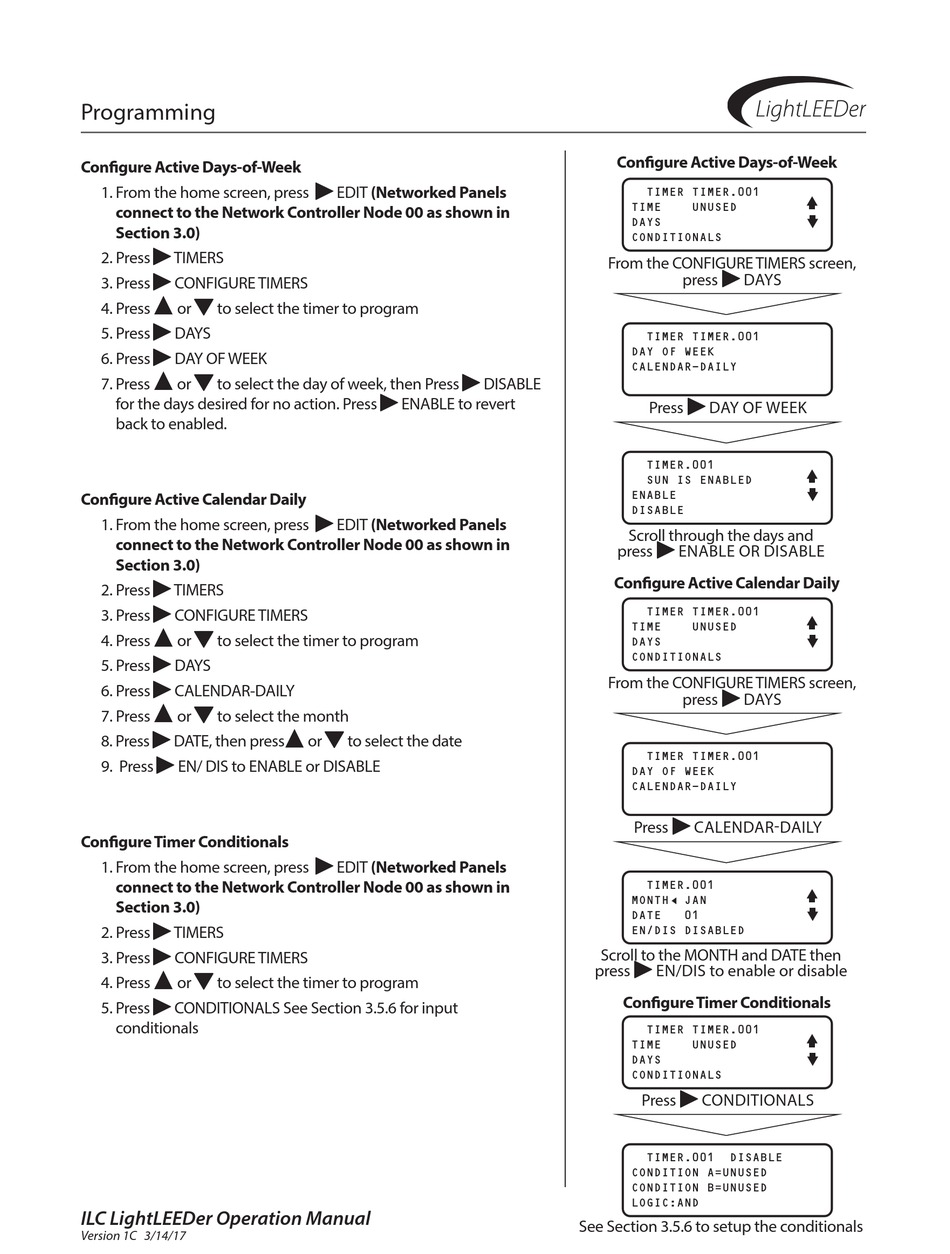

Configure Active Days-of-Week
