Programming

3.5.2 Configure a LightSync Device Input Type

1. From the home screen, press
connect to the Network Controller Node 00 as shown in
Section 3.0)
2. Press InPUTs
3. Press or to to select the device node number
4. Press COnFIgURe InPUTs
5. Press TYPes
6. Press TYPes A/B
7. Press TYPe A, or TYPe B
8. Press or to to select the switch input type.
Refer to table 3.2
6. Press " hOMe" to exit to the home screen
note: each switch input is programmable to 2 switch types re-
ferred to as type A and type B. each switch type will be active on a
Time-of-Day or Open-Closed time and set in section 3.5.4.
ILC LightLEEDer Operation Manual
Version 1C 3/14/17
eDIT (Networked Panels

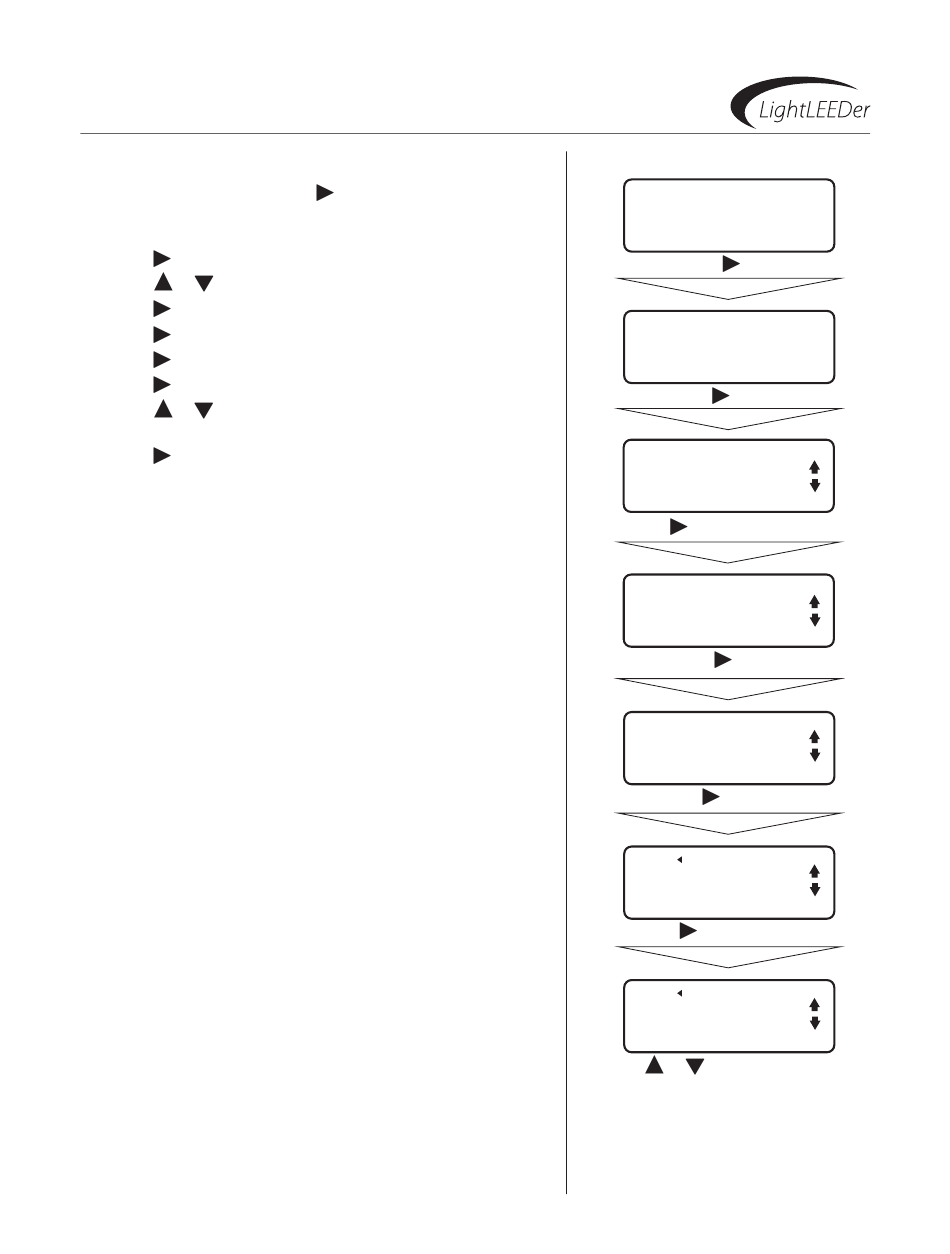

Configure a LightSync Device Input Type
ILC LIGHTLEEDER
TUE 01/21/11.
09:46:54
EDIT
Press eDIT
RELAYS
INPUTS
TIMERS
CLOCK
Press InPUTs
LS DEVICE: 01 1PB
STATUS
CONFIGURE DEVICE
CONFIGURE INPUTS
Press COnFIgURe InPUTs
INPUT IN:01.01.1
TYPES
CONDITIONALS
PILOT
Press TYPes
INPUT IN:01.01.1
TYPES A/B
TYPE TIMES
TOGGLE SOURCE
Press TYPes A/B
TYPE A DISABLED
TYPE B DISABLED
Press TYPe A or TYPe B
TYPE A MNT ON/OFF
TYPE B DISABLED
Press or to select device type
PM.
NODE 01.
