Parameter Descriptions
6-92 Terminal 42 Digital Output
Option:
[173] Position Mech Brake
[193] Sleep Mode
[194] Broken Belt Function
[198] Drive Bypass
6-93 Terminal 42 Output Min Scale
Range: Function:
0 % [0 - Scale for the minimum output (0 mA or 4 mA)
*
200 %] of the analog signal at terminal 42. Set the
value to be the percentage of the full range of
the variable selected in parameter 6-91 Terminal
42 Analog Output.
6-94 Terminal 42 Output Max Scale
Range: Function:
100 [0 - Scale for maximum output (20 mA) of the scaling
% 200 %] at terminal 42. Set the value to be the
*
percentage of the full range of the variable
selected in parameter 6-91 Terminal 42 Analog
Output.
Current
(mA)
20
0/4
0%
Analog
output
Min Scale
par. 6-93

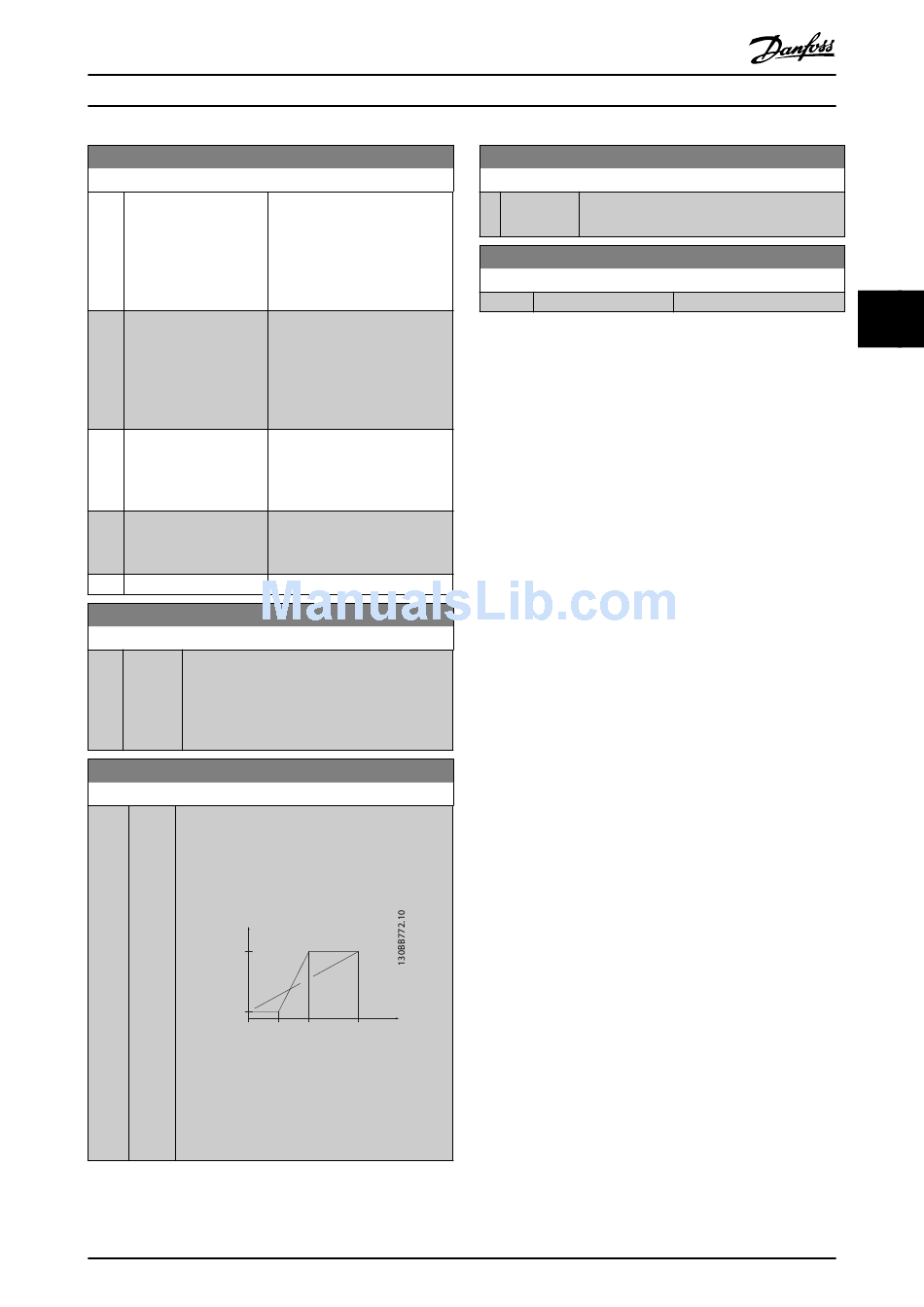

Illustration 4.14 Output Scale versus Current
MG07C302
Programming Guide
Function:
Reason for details about the
fault. This option is only
effective when
parameter 37-00 Application
Mode is set to [2] Position
Control.
Select mechanical control for
positioning. This option is only
effective when
parameter 37-00 Application
Mode is set to [2] Position
Control.
The frequency converter/system
has entered sleep mode. See
parameter group 22-4* Sleep
Mode.
A broken-belt condition has
been detected. See parameter
group 22-4* Sleep Mode.
Analog 100% Variable
Output for
Max Scale output
par. 6-94 example:
Power
Danfoss A/S © 07/2016 All rights reserved.
6-96 Terminal 42 Output Bus Control
Range: Function:
0 [0 - 16384 ] Hold the analog output at terminal 42 if
*
controlled by bus.
6-98 Drive Type
Range:
0 [0 - 0 ]
*
Function:
